Input/Output Signal Chart

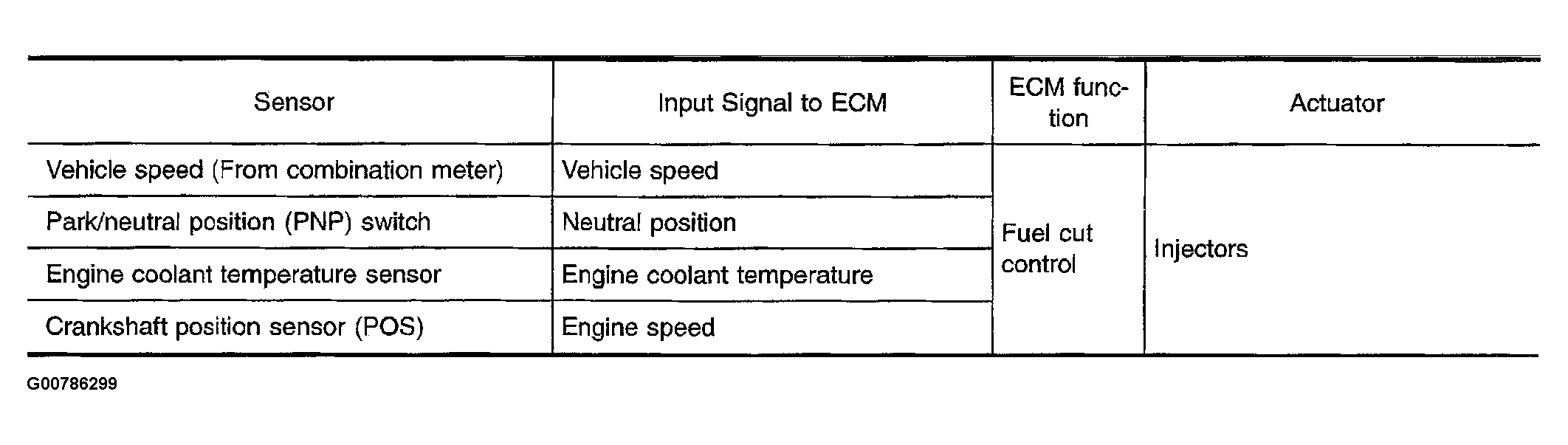

Fig 1: Fuel Cut Control Input/Output Signal Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

If the engine speed is above 1,800 rpm under no load (for example, the shift position is neutral and engine speed is over 1,800 rpm) fuel will be cut off after some time. The exact time when the fuel is cut off varies based on engine speed.

Fuel cut will be operated until the engine speed reaches 1,500 rpm, then fuel cut is cancelled.
