Engine Control Component Parts Location

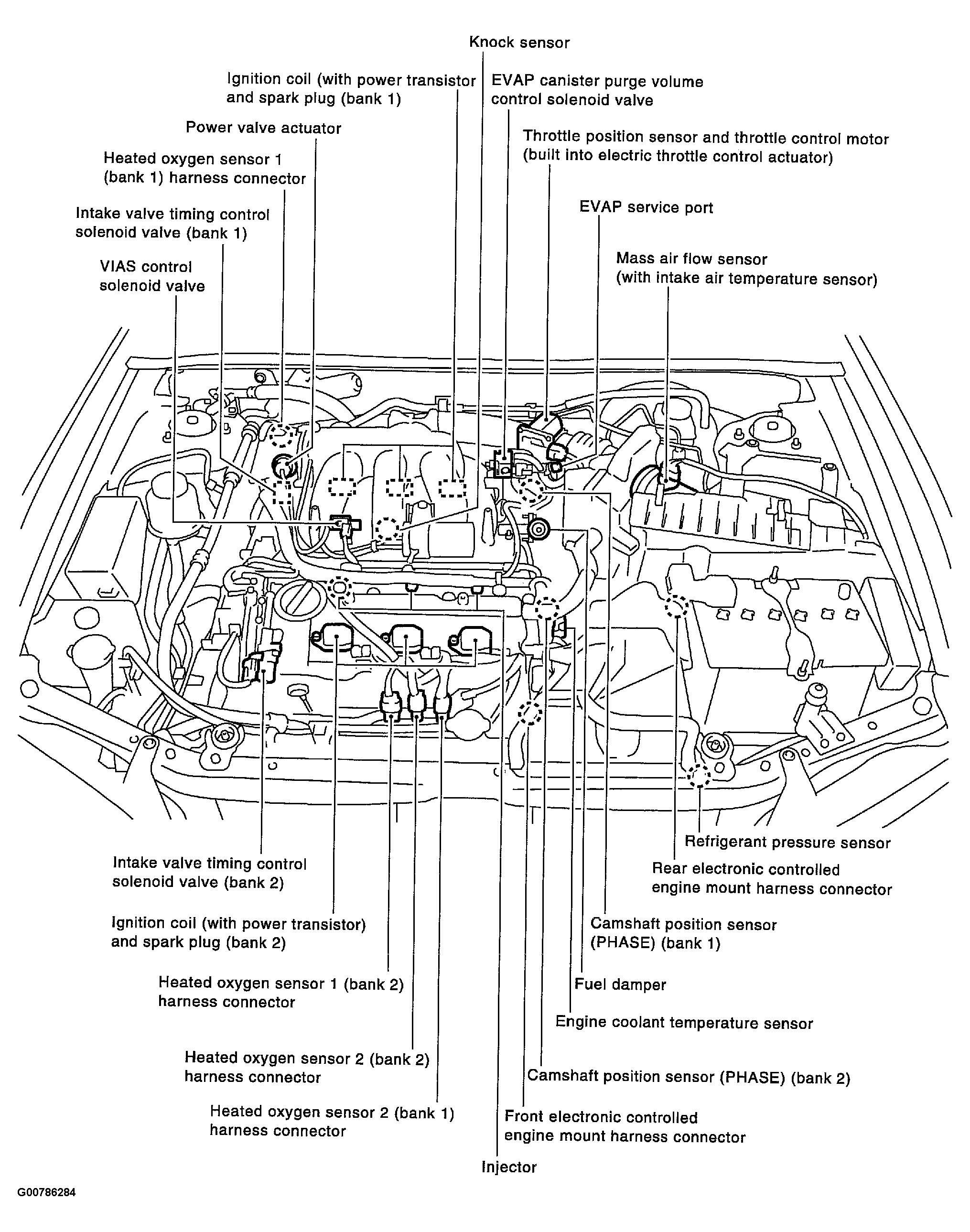

Fig 1: Locating Engine Control Component Parts (1 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

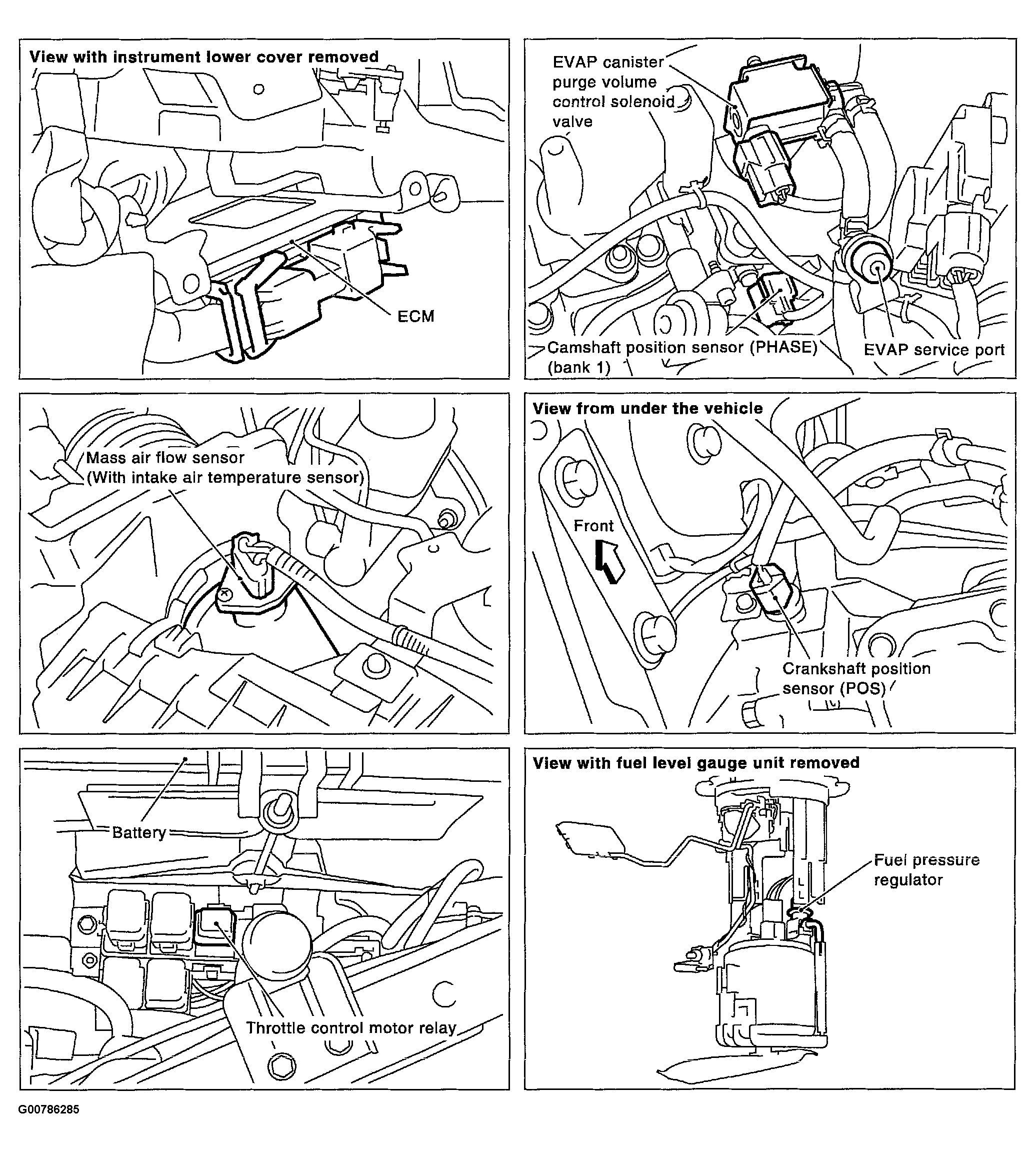

Fig 2: Locating Engine Control Component Parts (2 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

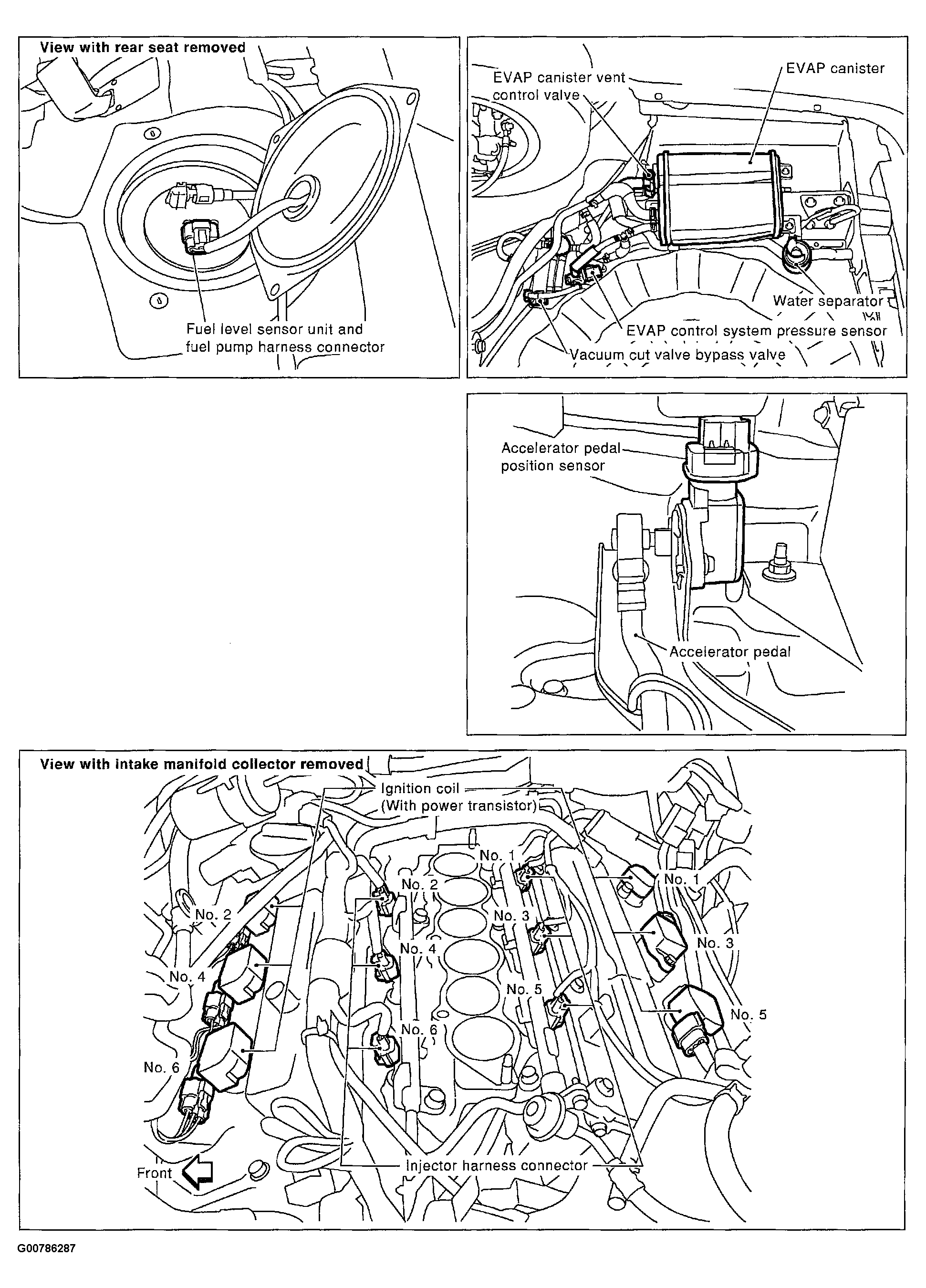

Fig 3: Locating Engine Control Component Parts (3 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.

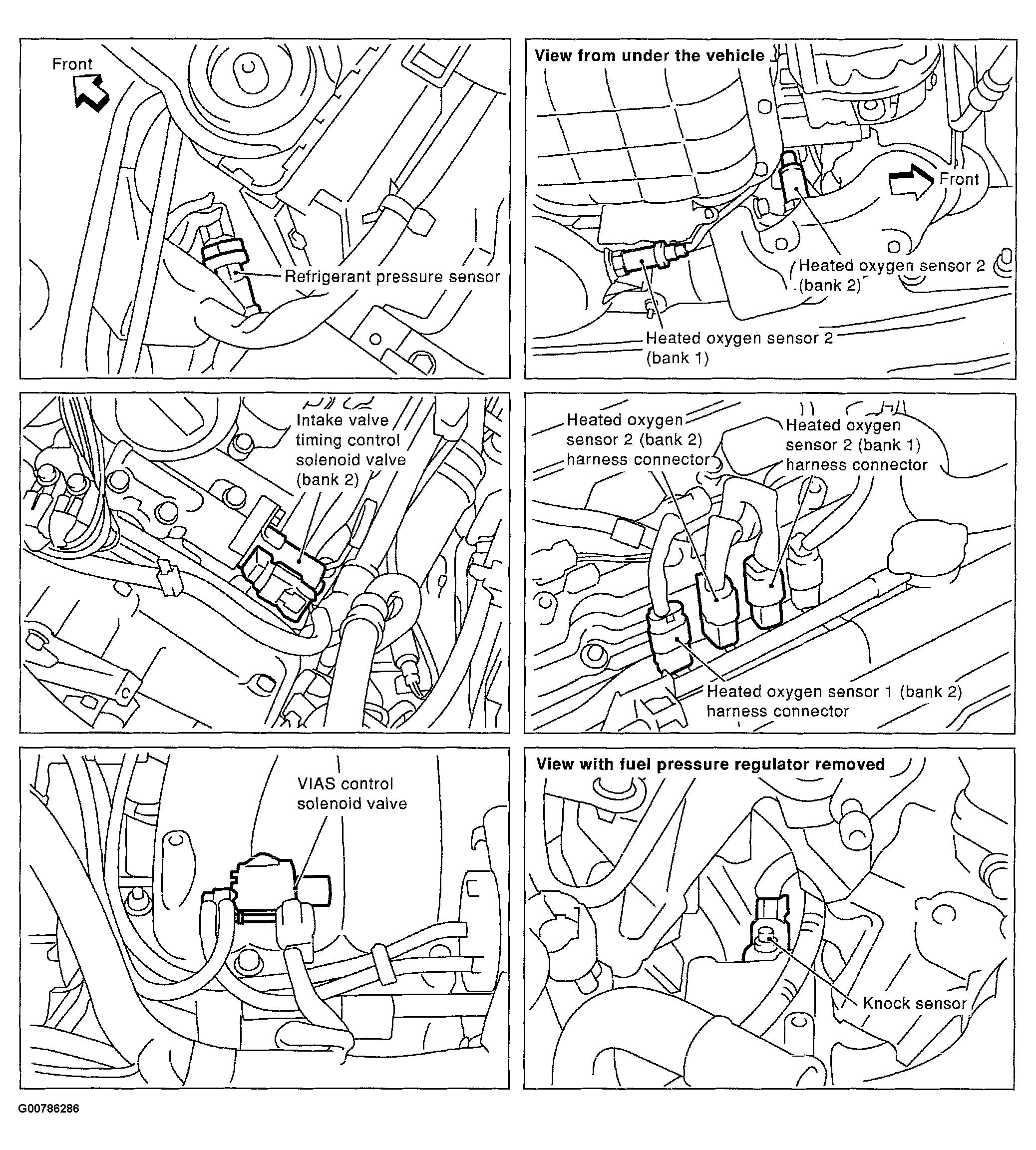

Fig 4: Locating Engine Control Component Parts (4 Of 4)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
