Data Monitor Mode

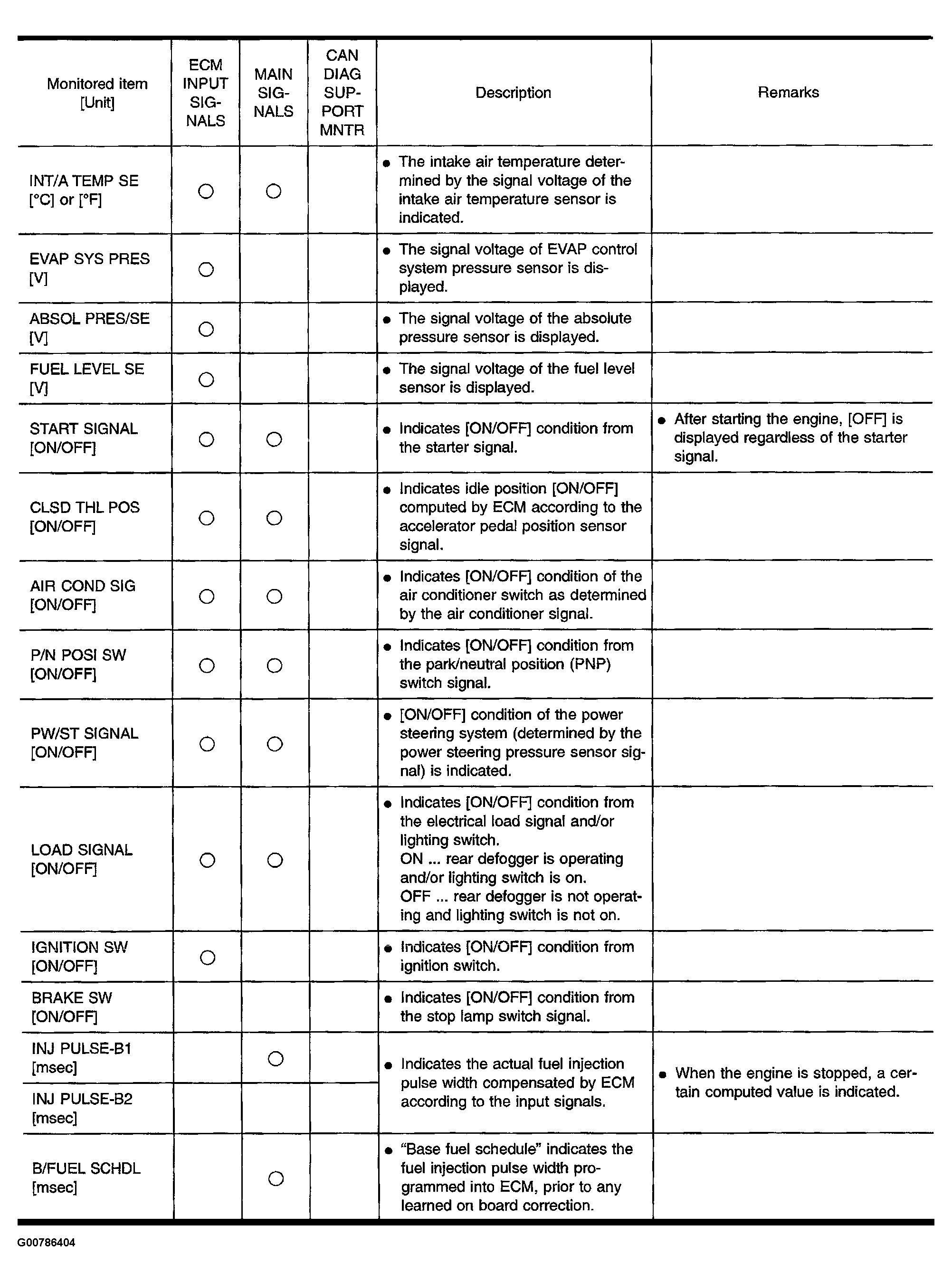

Fig 1: DATA MONITOR MODE Chart (1 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

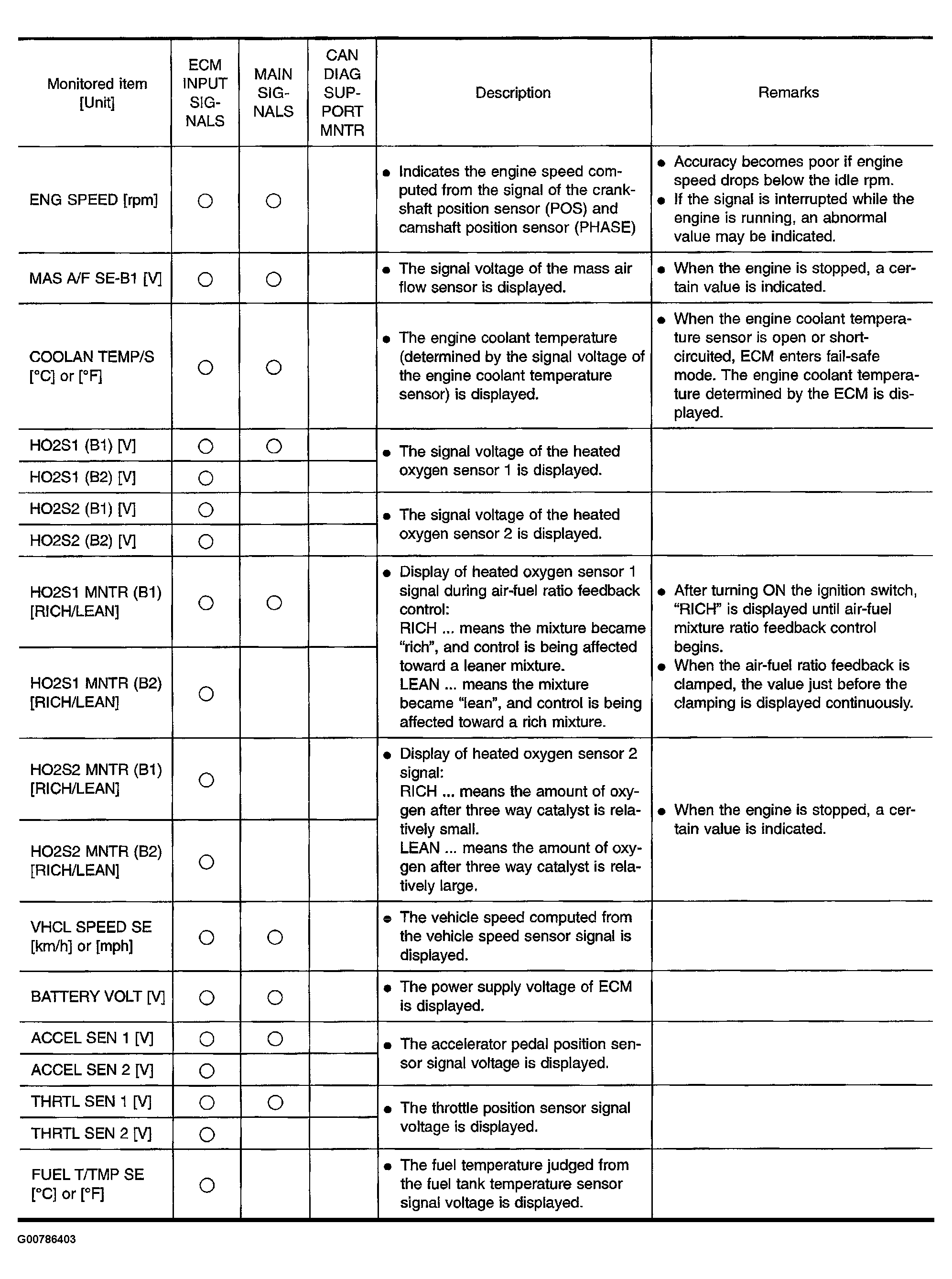

Fig 2: DATA MONITOR MODE Chart (2 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

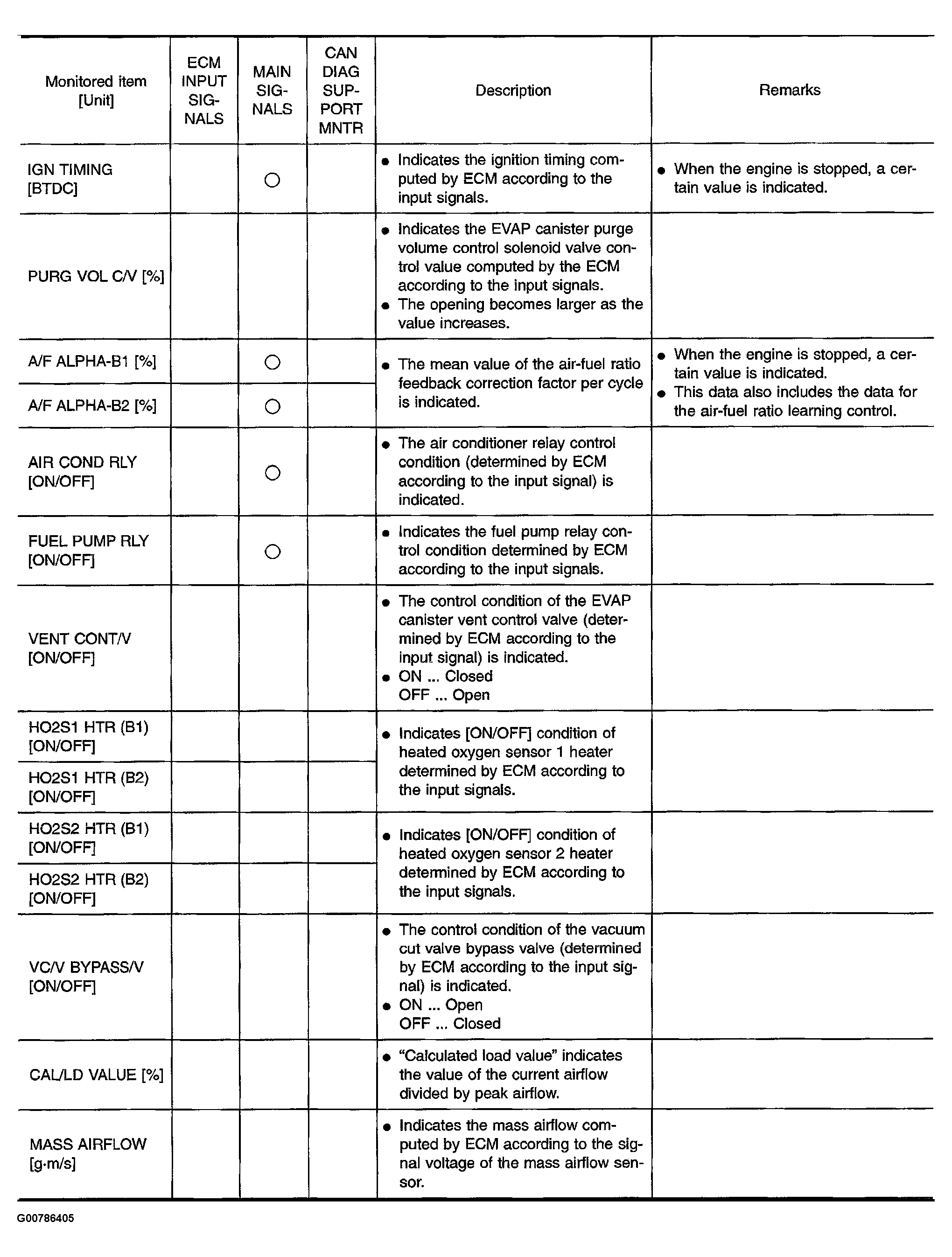

Fig 3: DATA MONITOR MODE Chart (3 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

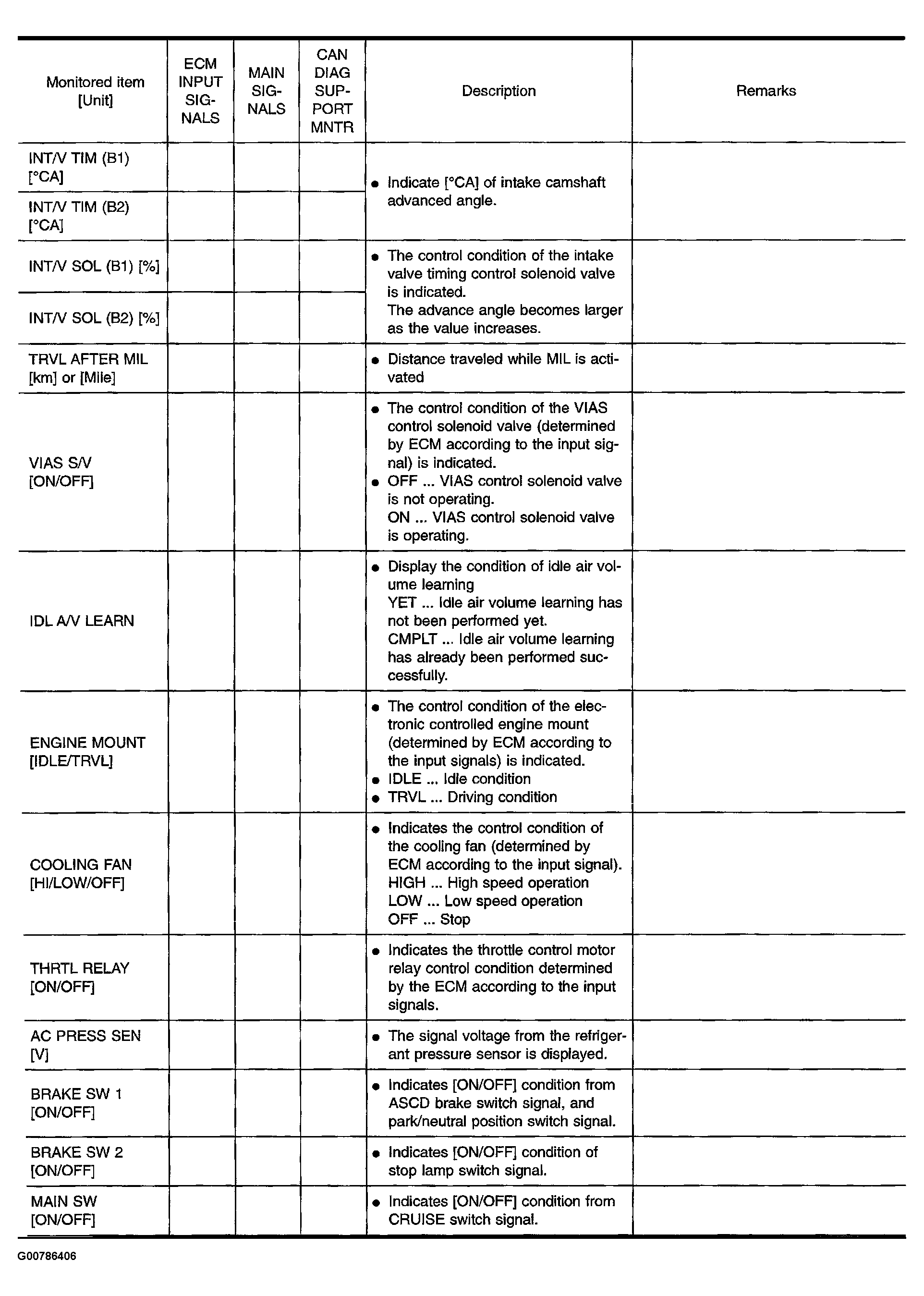

Fig 4: DATA MONITOR MODE Chart (4 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

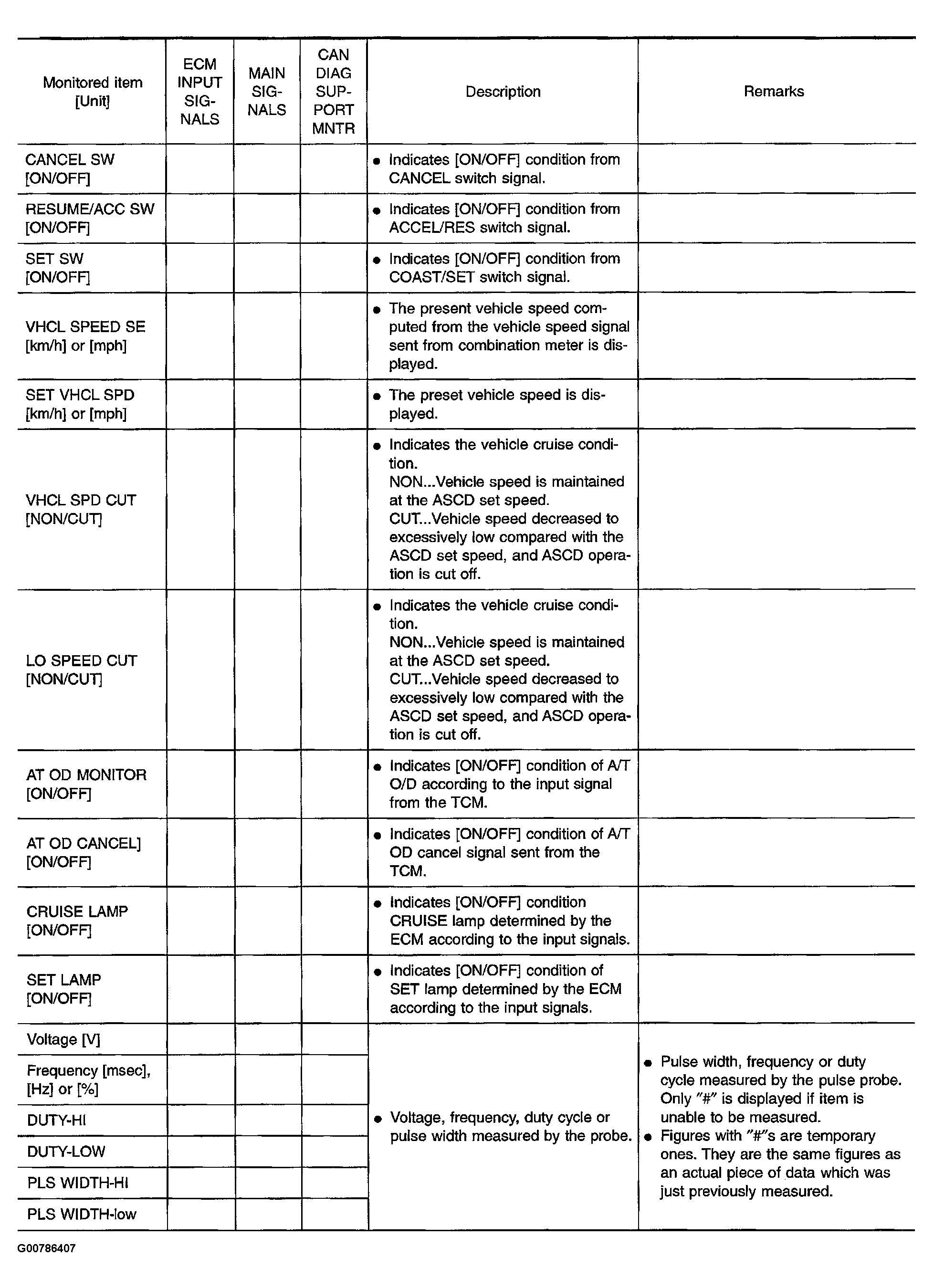

Fig 5: DATA MONITOR MODE Chart (5 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

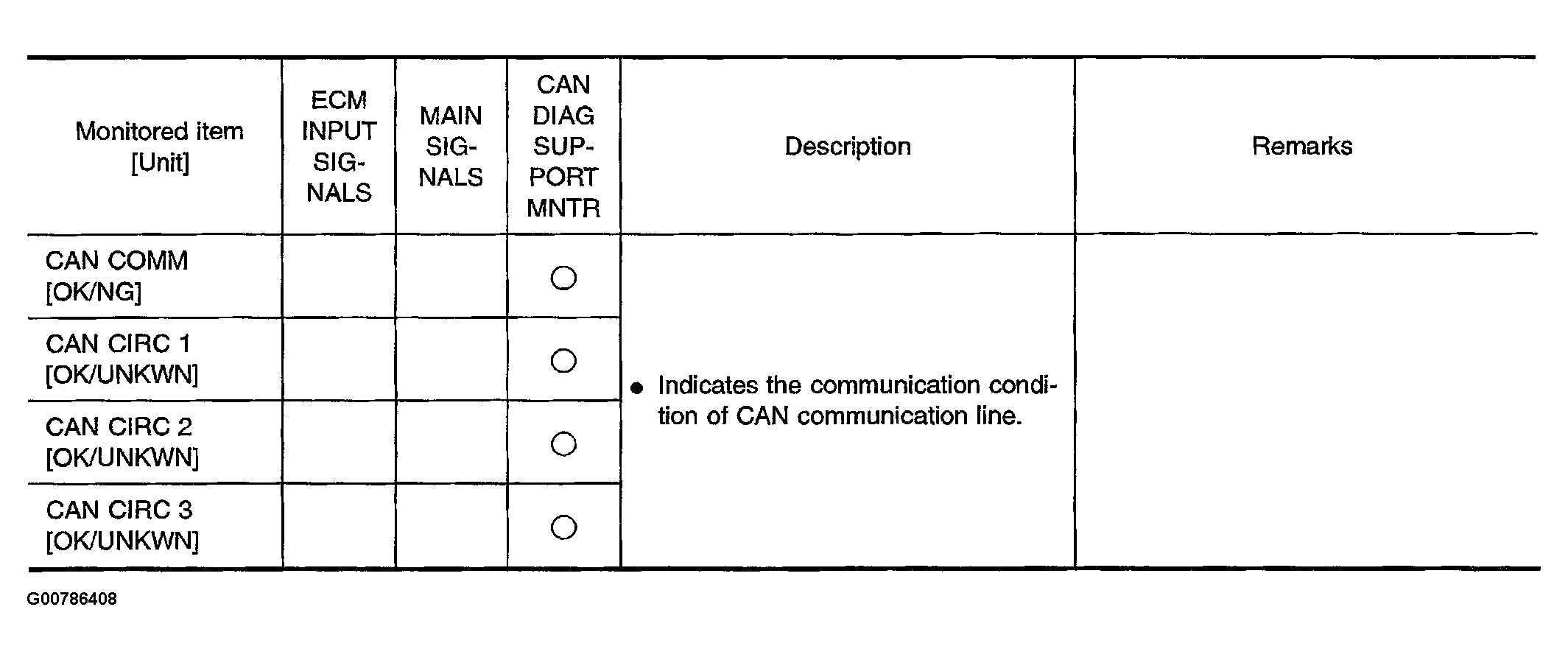

Fig 6: DATA MONITOR MODE Chart (6 Of 6)

Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Any monitored item that does not match the vehicle being diagnosed is deleted from the display automatically.
