Inspection Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector, which is located under LH dash panel near the fuse box cover. See Figure
Turn ignition switch ON.

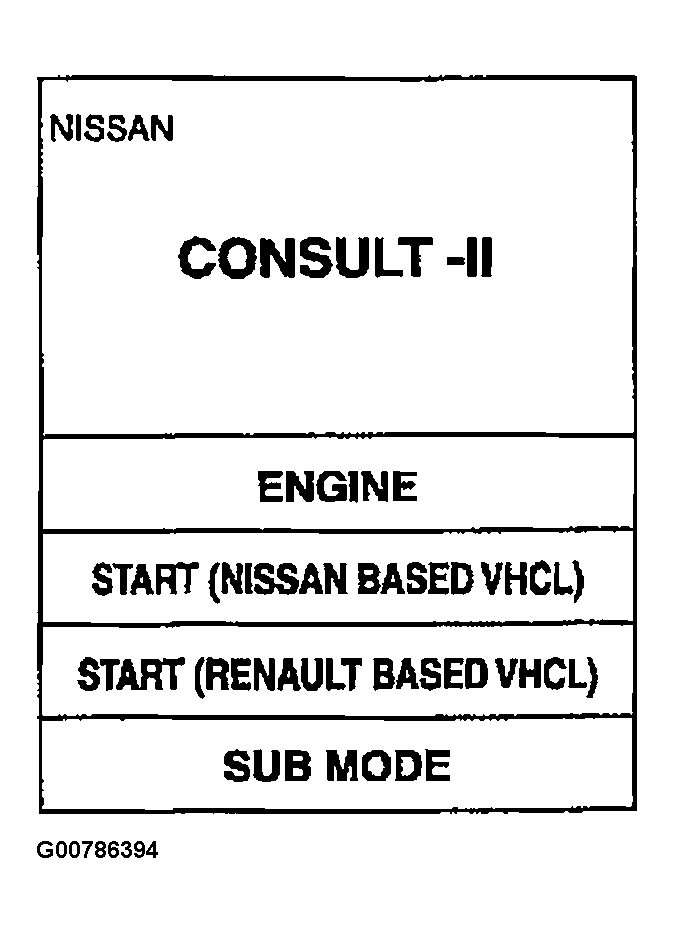

Fig 1: Displaying CONSULT-II Starting Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START (NISSAN BASED VHCL).
Touch ENGINE.

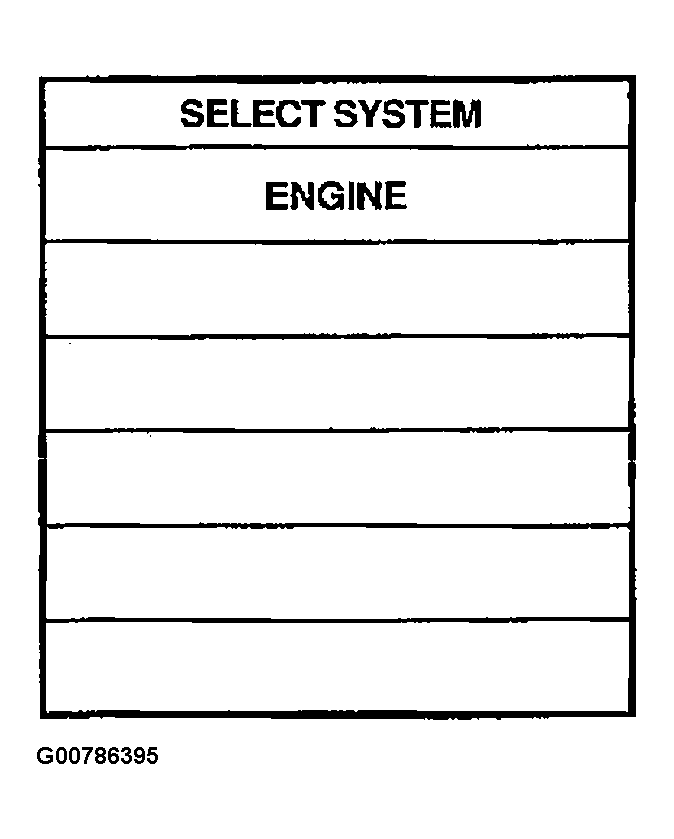

Fig 2: Displaying CONSULT-II SELECTING SYSTEM Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

If ENGINE is not indicated go to CONSULT-II DATA LINK CONNECTOR .
Perform each diagnostic test mode according to each service procedure.

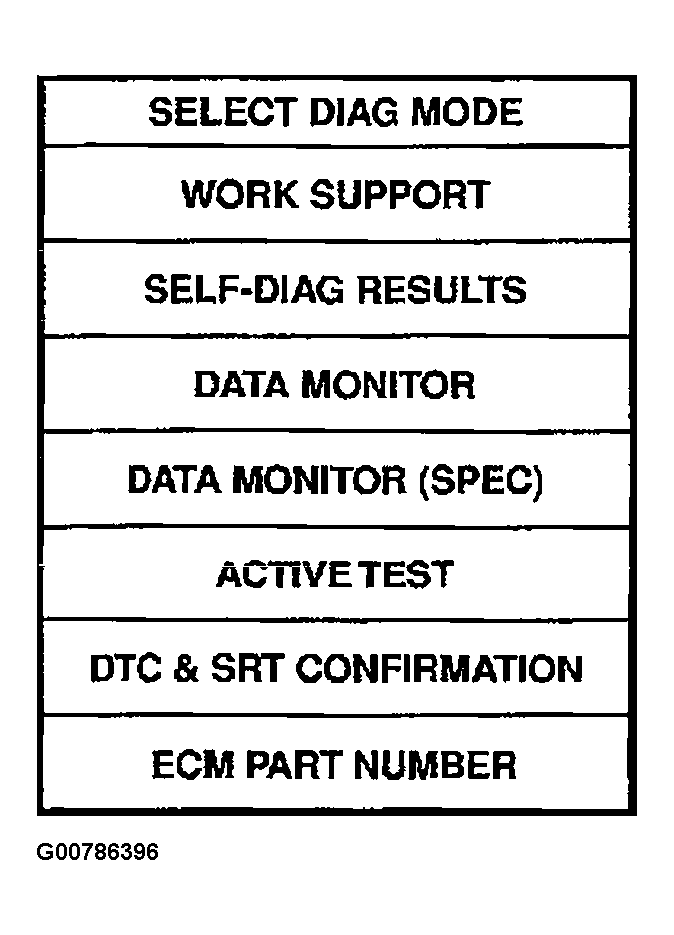

Fig 3: Displaying CONSULT-II SELECT DIAG MODE Screen
Courtesy of NISSAN MOTOR CO., U.S.A.

For further information, see the CONSULT-II Operation Manual.
