Self-Diagnostic Mode

DTC and 1st Trip DTC

Regarding items of DTC and 1st trip DTC, refer to TROUBLE DIAGNOSIS - INDEX  .)

Freeze Frame Data and 1st Trip Freeze Frame Data

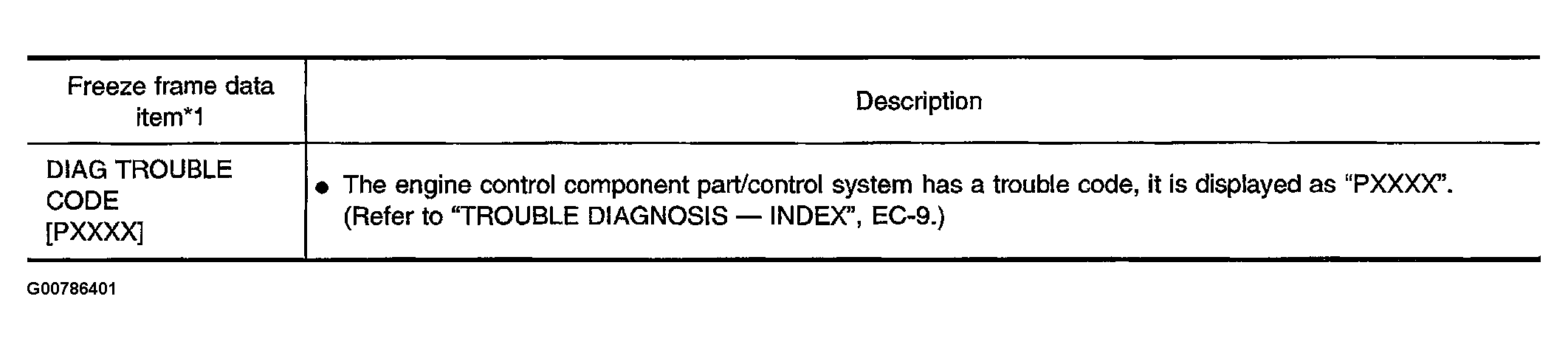

Fig 1: Freeze Frame Data And 1st Trip Freeze Frame Data Chart (1 Of 2)
G00786401Courtesy of NISSAN MOTOR CO., U.S.A.

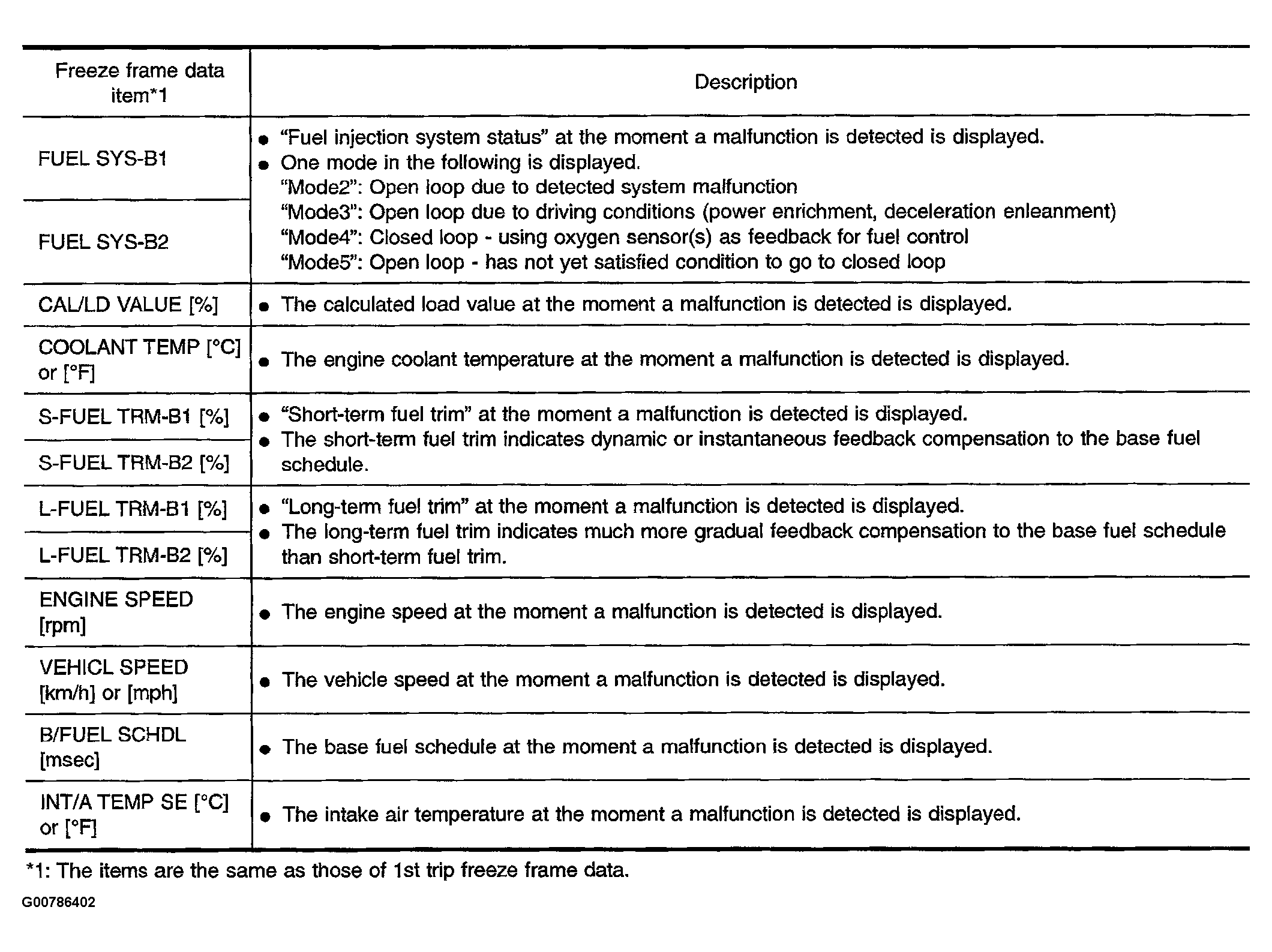

Fig 2: Freeze Frame Data And 1st Trip Freeze Frame Data Chart (2 Of 2)
G00786402Courtesy of NISSAN MOTOR CO., U.S.A.
