Inspection Procedure

1. Turn ignition switch OFF.
2. Connect GST to data link connector, which is located under LH dash panel near the fuse box cover. See Figure .
3. Turn ignition switch ON.
4. Enter the program according to instruction on the screen or in the operation manual.

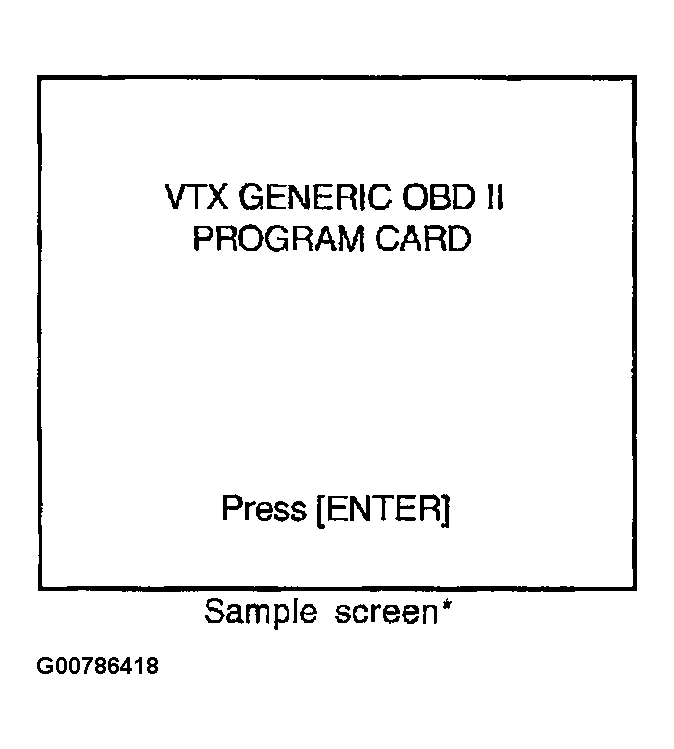

   Fig 1: Identifying Generic Scan Tool Sample Screen (1 Of 1)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   (Regarding GST screens in this section, sample screens are shown.)

5. Perform each diagnostic mode according to each service procedure.

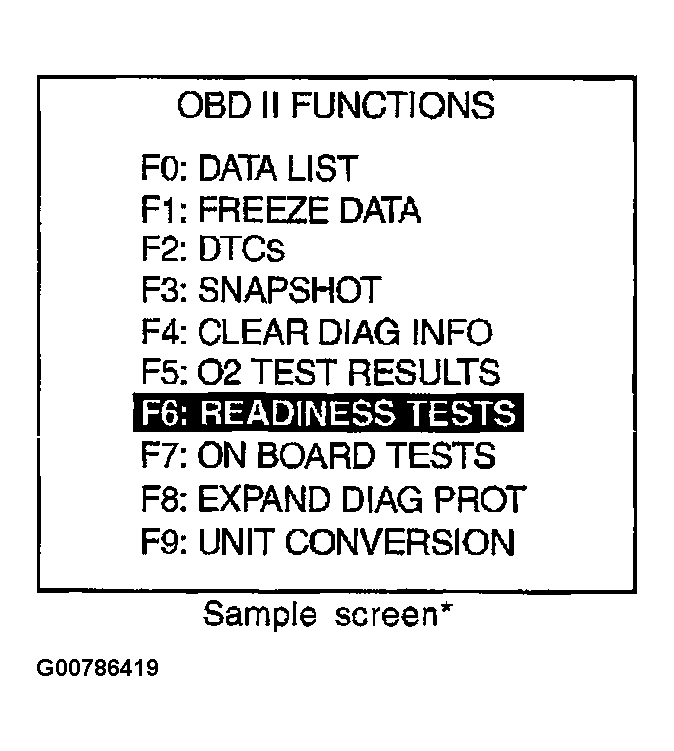

Fig 2: Identifying Generic Scan Tool Sample Screen (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

For further information, see the GST Operation Manual of the tool maker.
