On Board Diagnostic System Function: Notes

The on board diagnostic system has the following four functions.

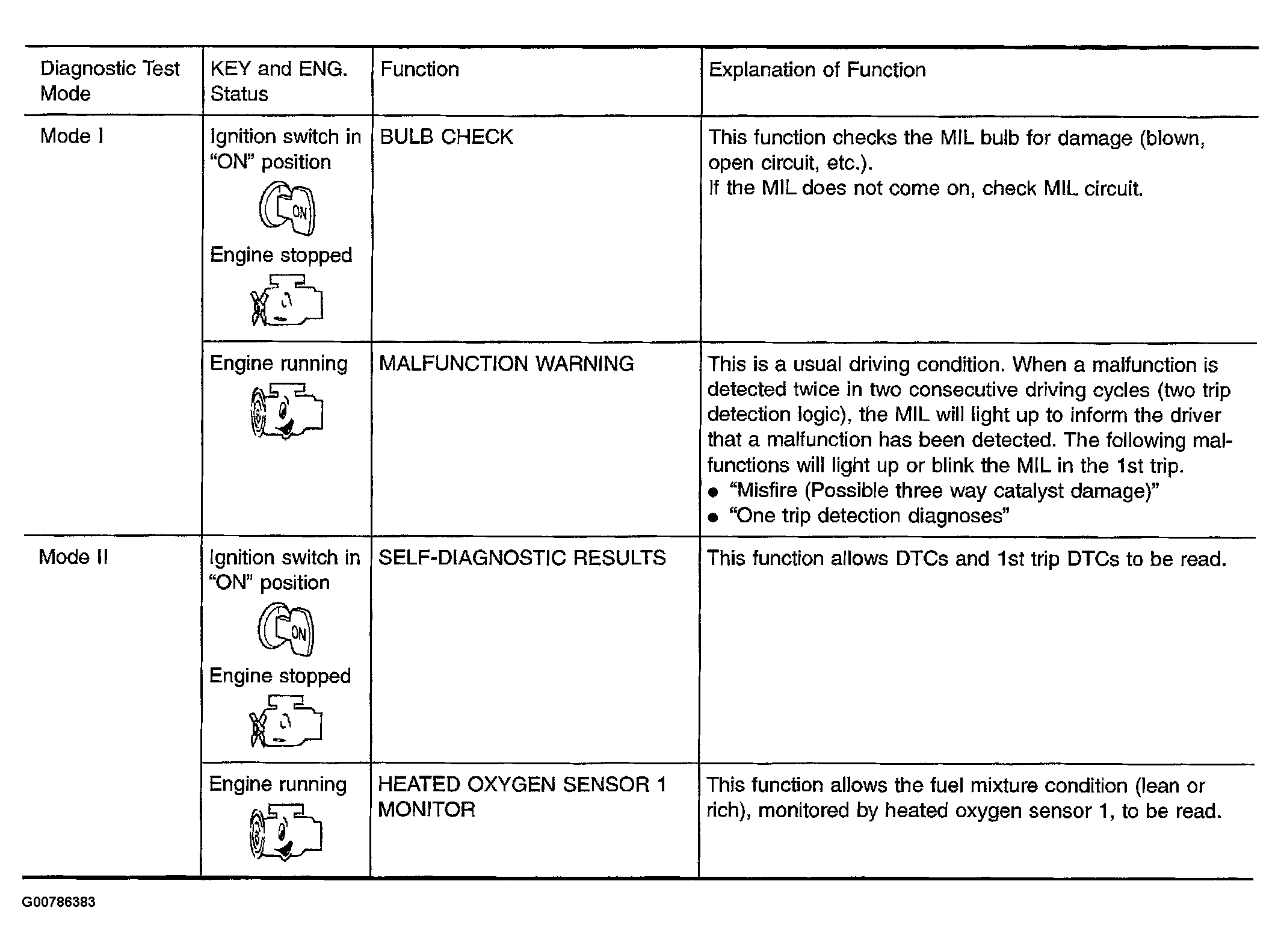

Fig 1: On Board Diagnostic Malfunction Indicator Lamp
G00786383Courtesy of NISSAN MOTOR CO., U.S.A.
