Engine Coolant Temperature Sensor

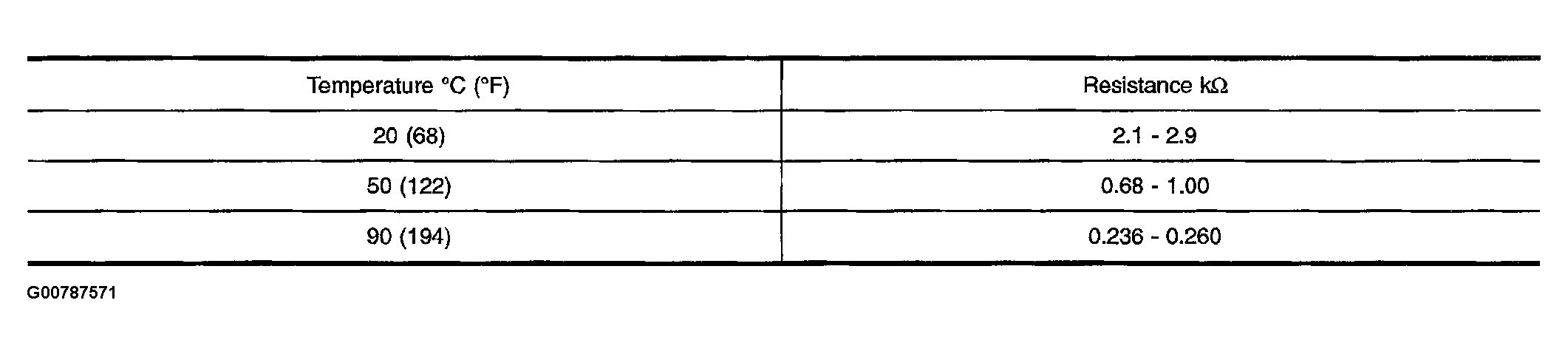

Fig 1: Engine Coolant Temperature Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
