Mass Air Flow Sensor

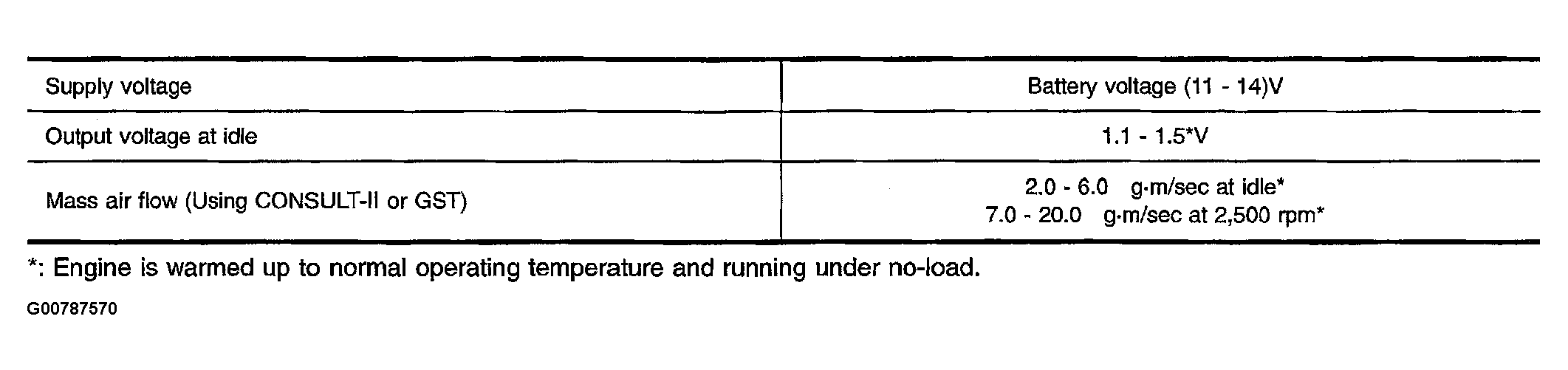

Fig 1: Mass Air Flow Sensor Specifications
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
