ECM Inspection Table

Specification data are reference values and are measured between each terminal and ground.

Pulse signal is measured by CONSULT-II.

CAUTION: Do not use ECM ground terminals when measuring the input/output voltage. Doing so may result in damage to the ECM's transistor. Use ground other than the ECM terminals, such as the ground.

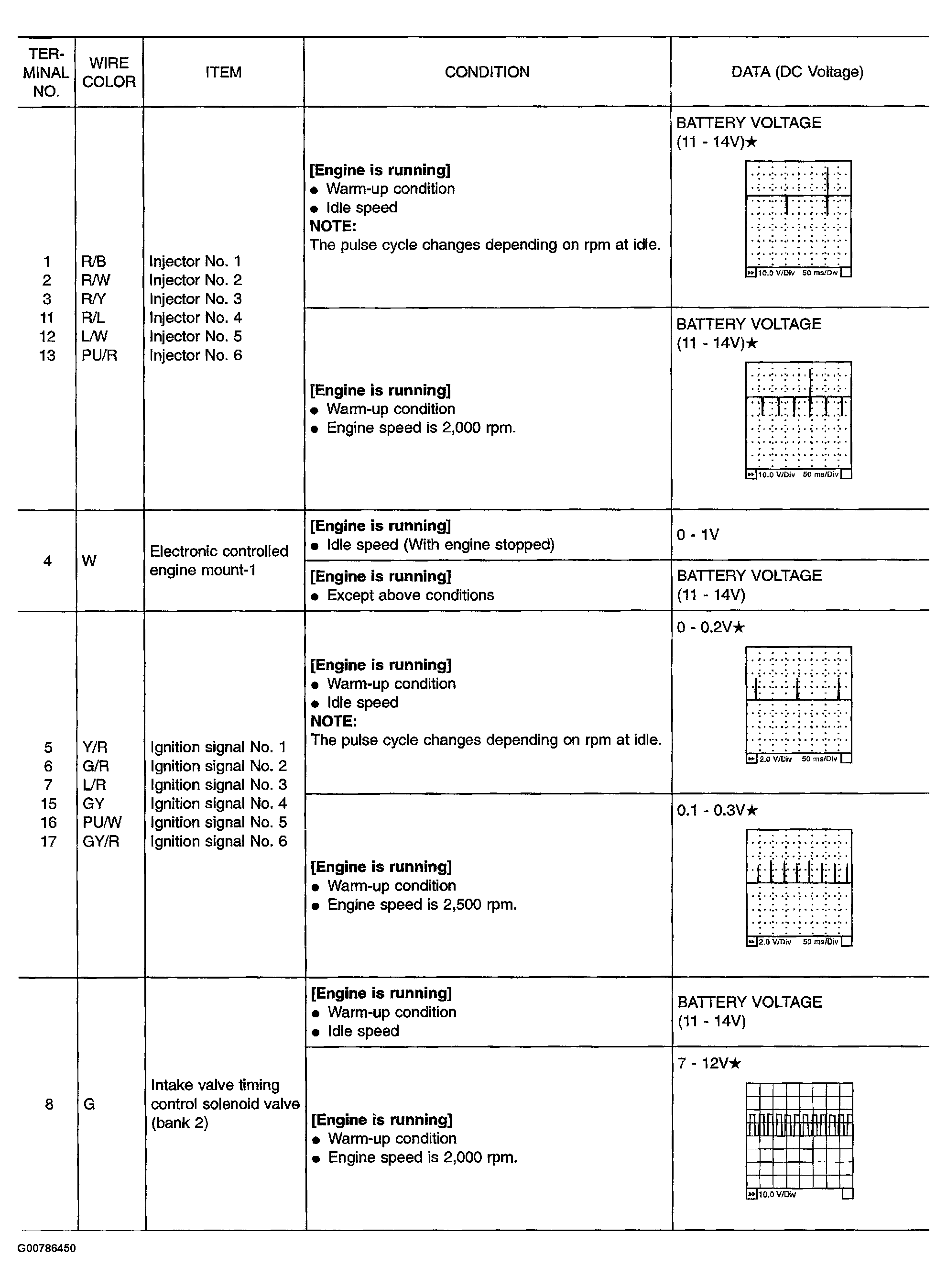

Fig 1: Identifying ECM Terminals and Specifications (1 Of 10)

G00786450

Courtesy of NISSAN MOTOR CO., U.S.A.

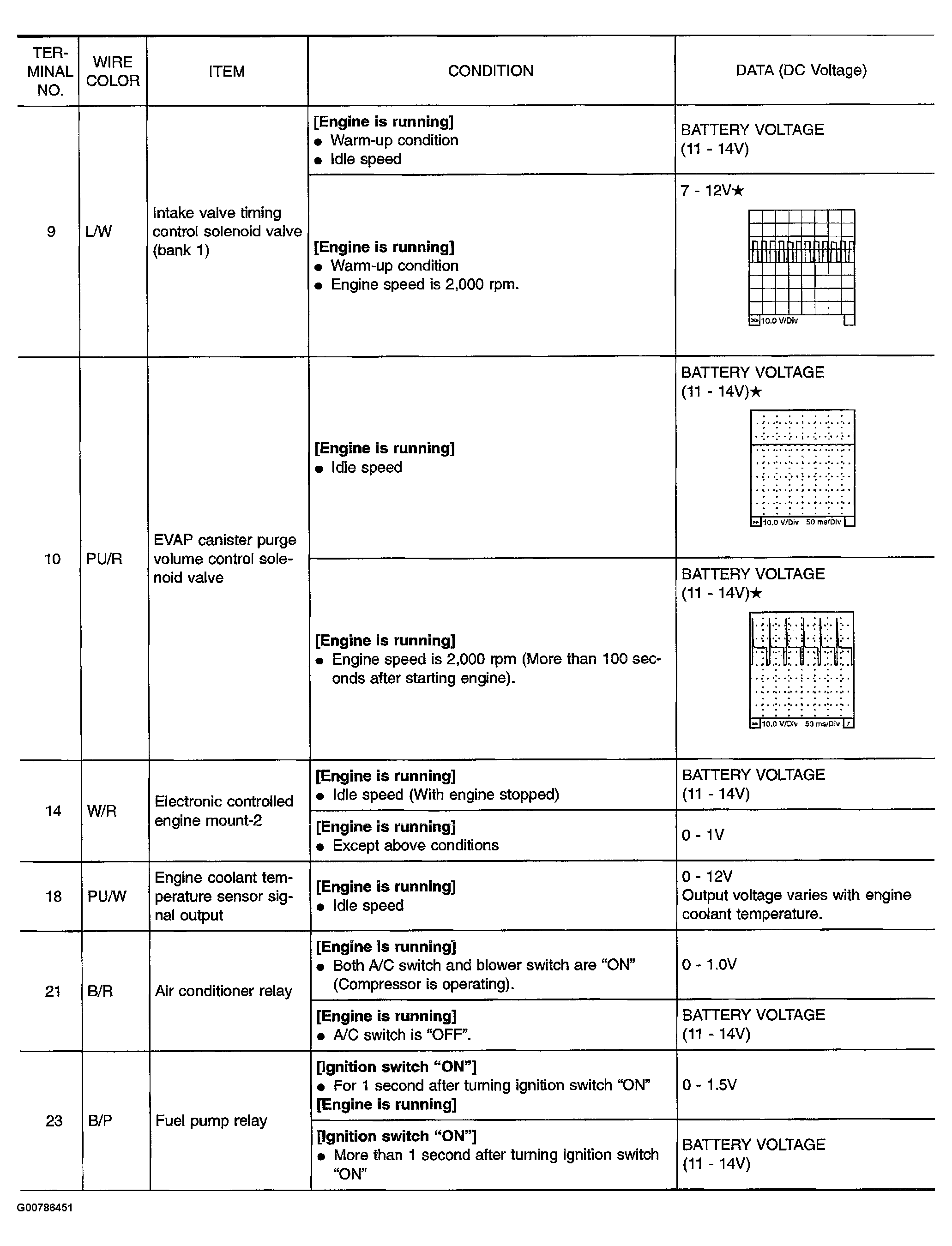

Fig 2: Identifying ECM Terminals and Specifications (2 Of 10)

G00786451

Courtesy of NISSAN MOTOR CO., U.S.A.

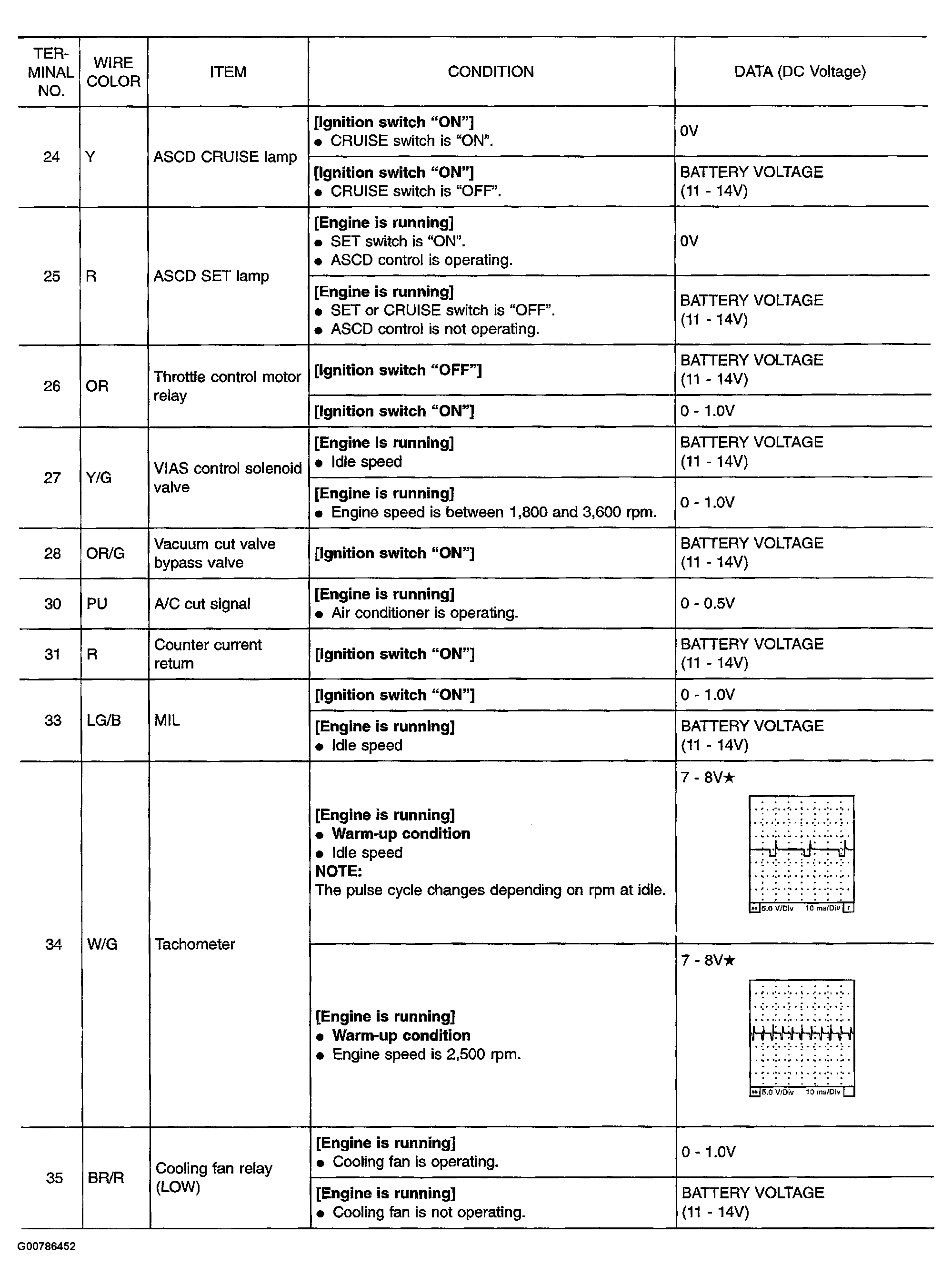

Fig 3: Identifying ECM Terminals and Specifications (3 Of 10)

G00786452

Courtesy of NISSAN MOTOR CO., U.S.A.

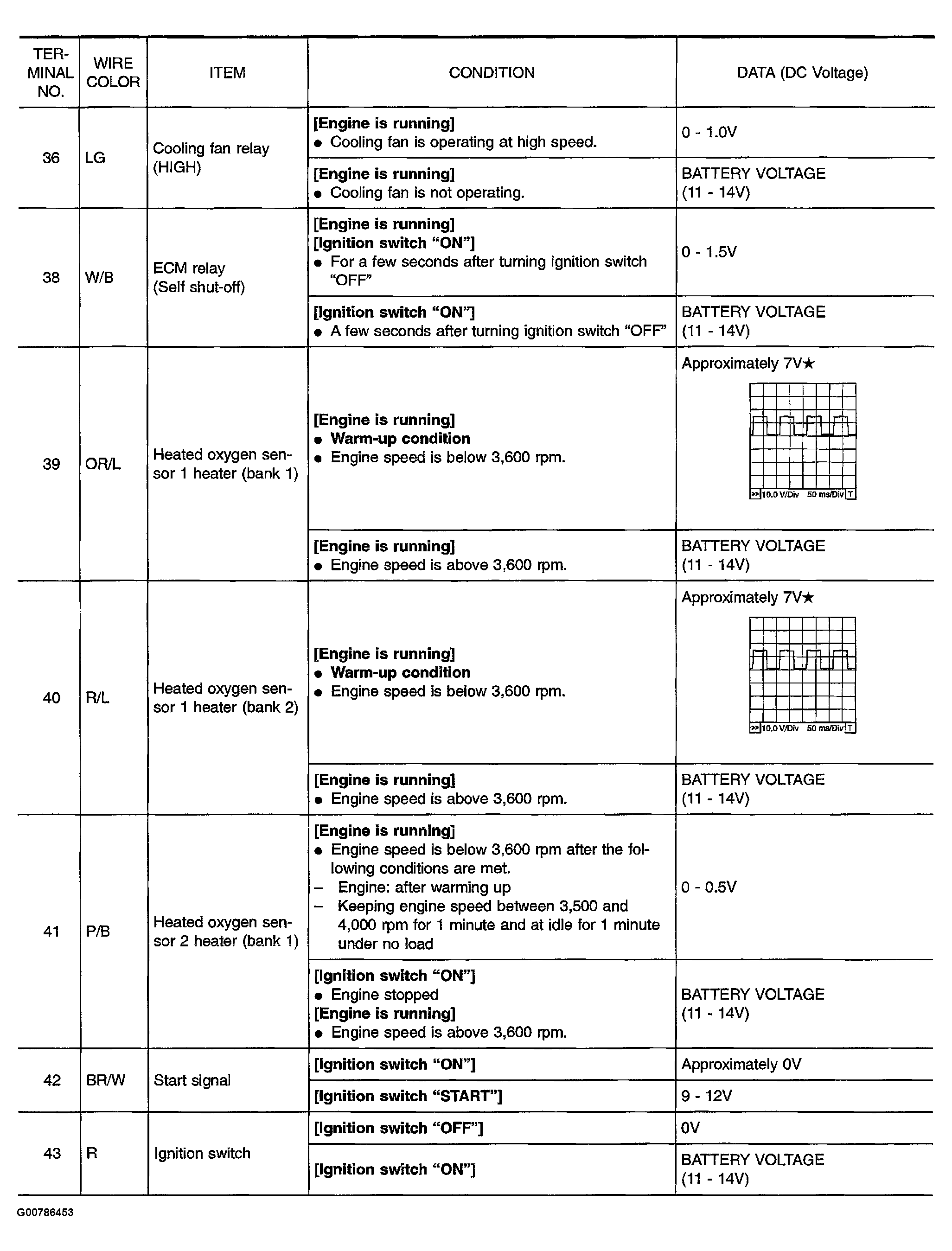

Fig 4: Identifying ECM Terminals and Specifications (4 Of 10)

G00786453

Courtesy of NISSAN MOTOR CO., U.S.A.

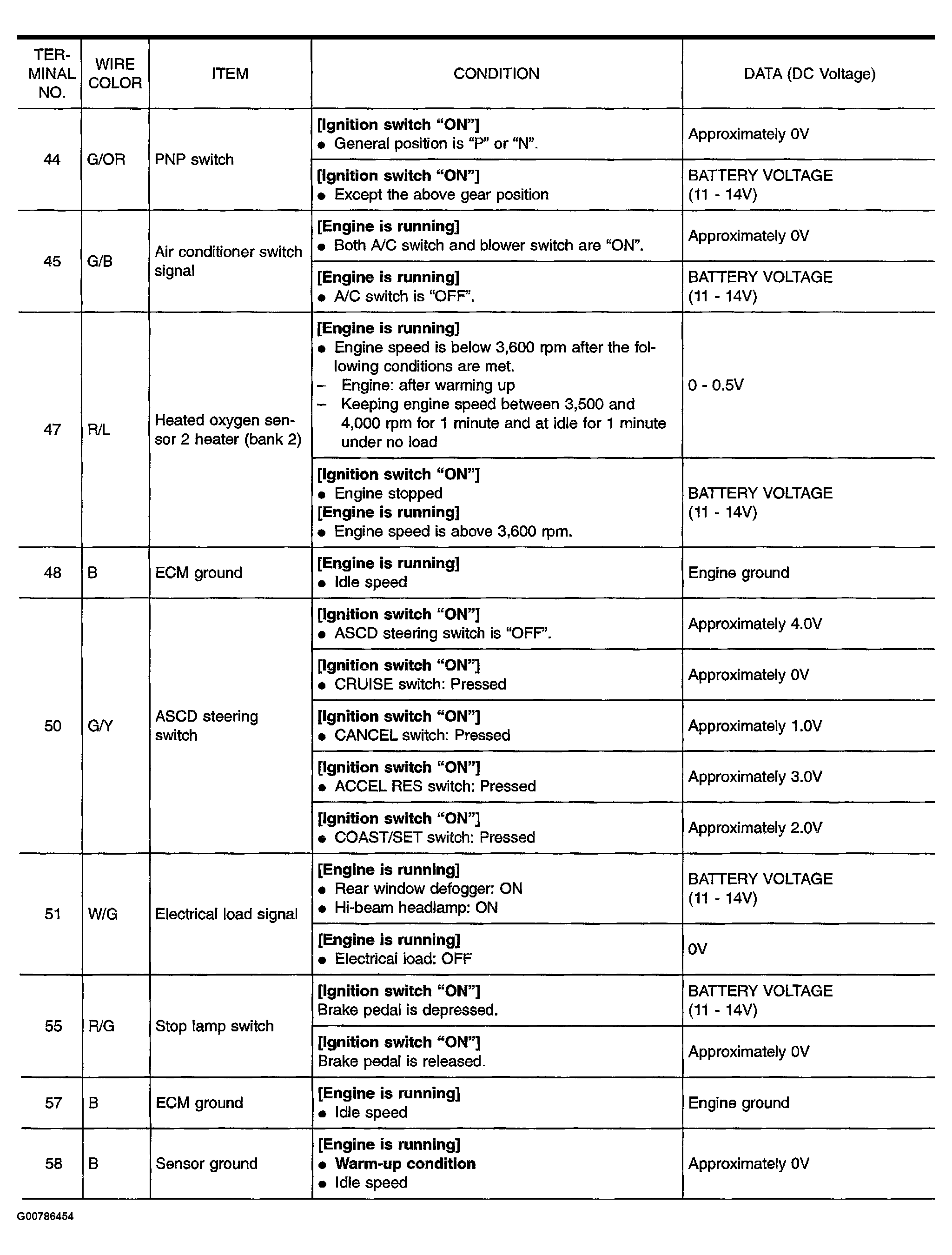

Fig 5: Identifying ECM Terminals and Specifications (5 Of 10)

G00786454

Courtesy of NISSAN MOTOR CO., U.S.A.

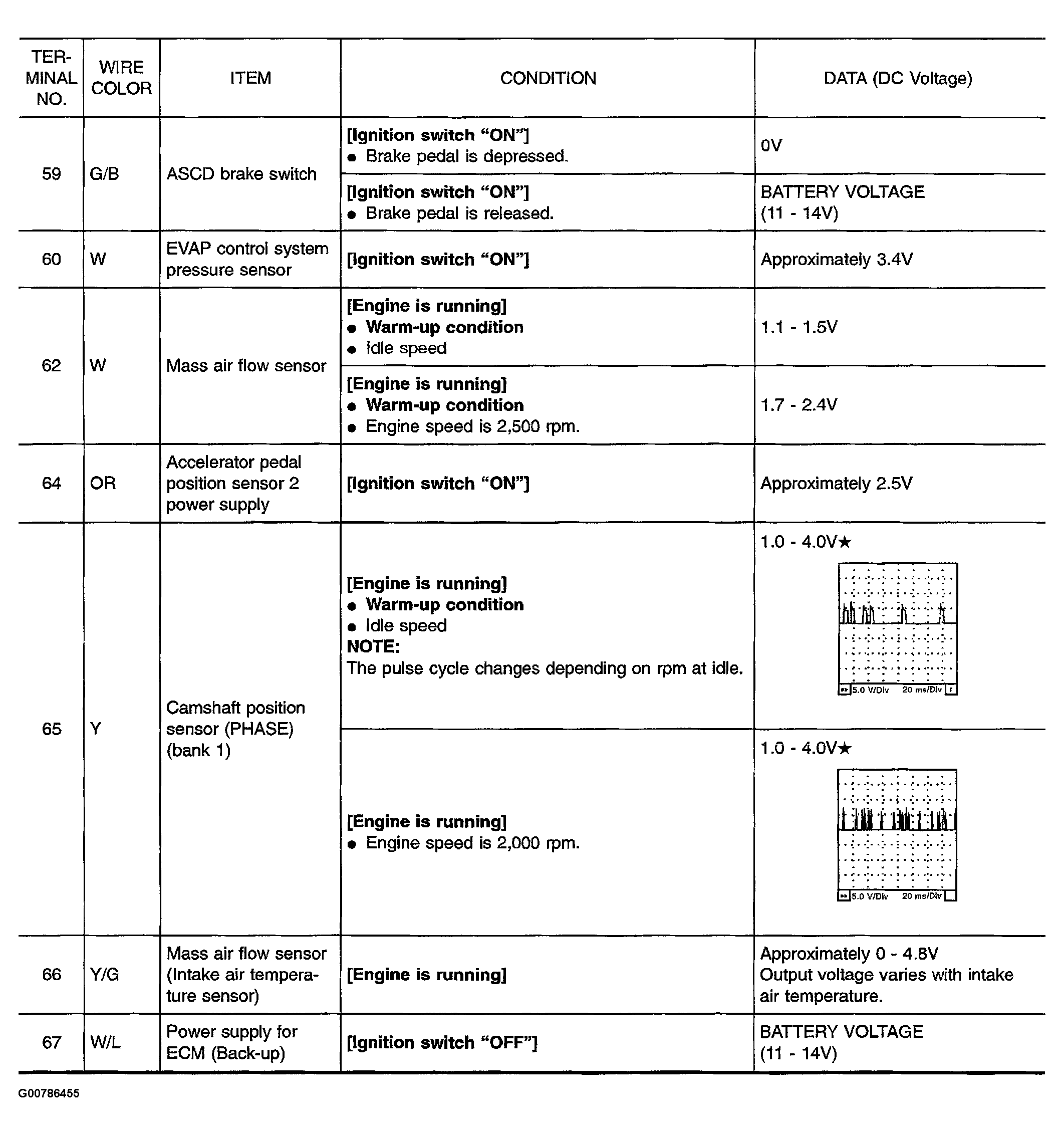

Fig 6: Identifying ECM Terminals and Specifications (6 Of 10)

G00786455

Courtesy of NISSAN MOTOR CO., U.S.A.

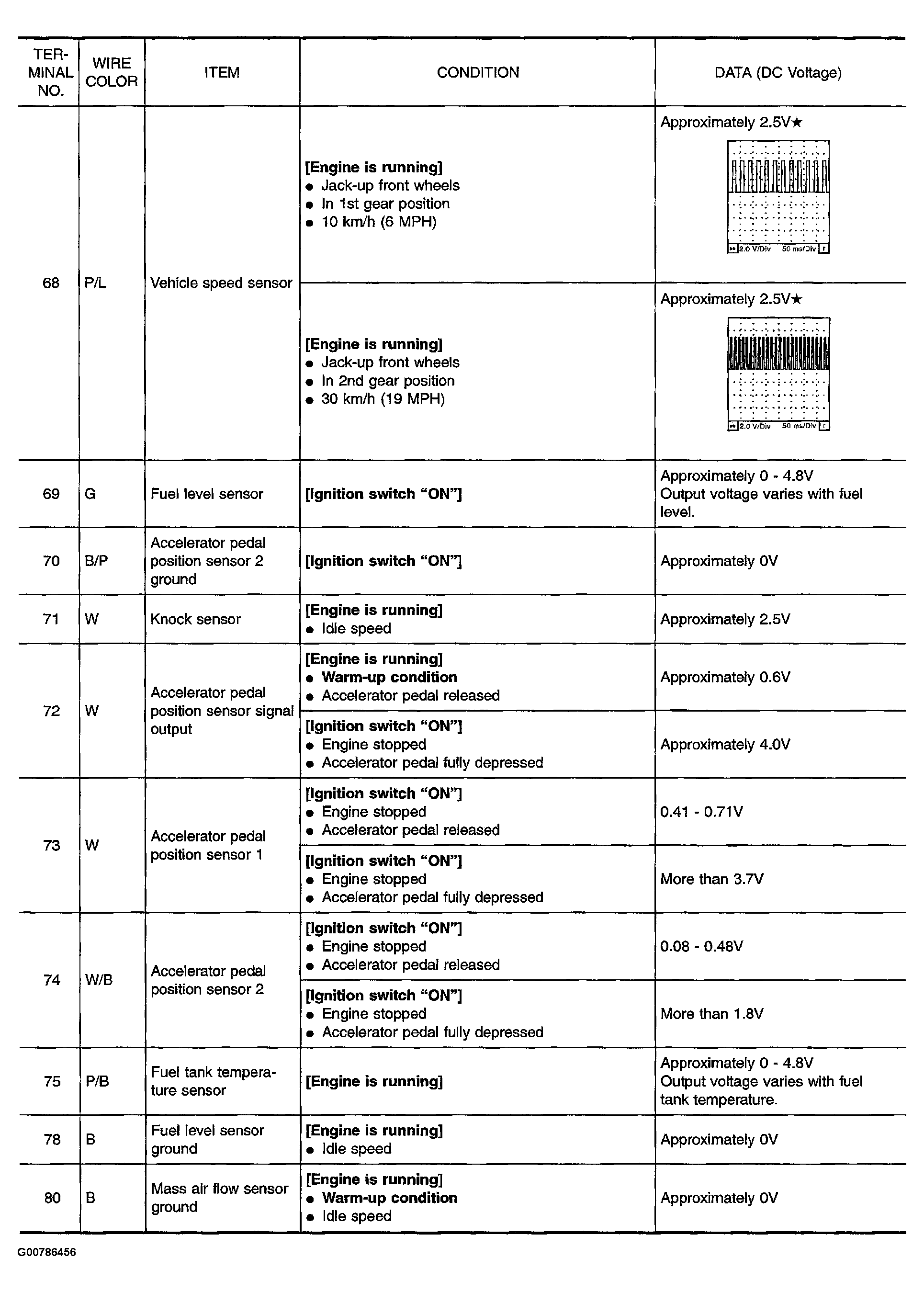

Fig 7: Identifying ECM Terminals and Specifications (7 Of 10)

G00786456

Courtesy of NISSAN MOTOR CO., U.S.A.

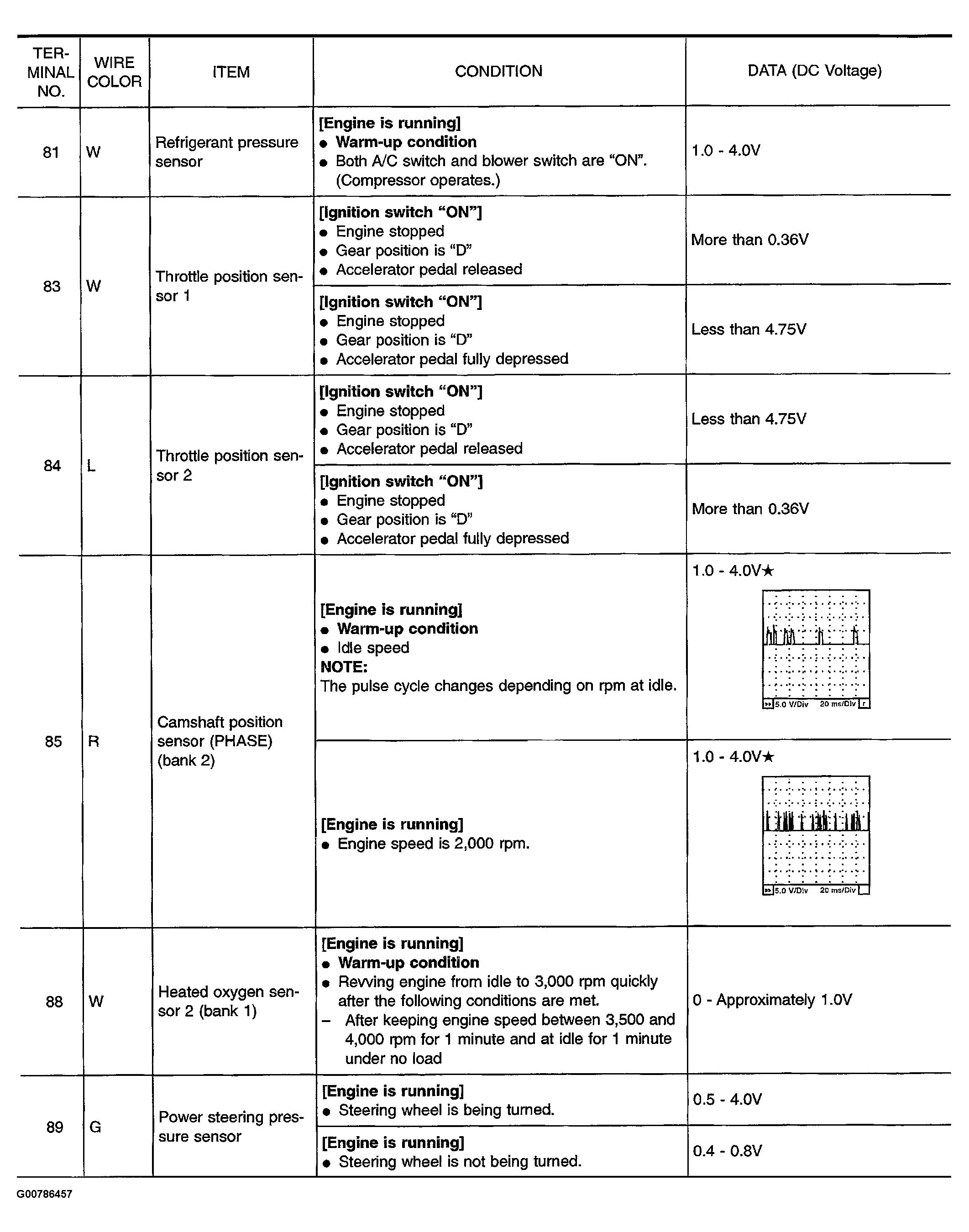

Fig 8: Identifying ECM Terminals and Specifications (8 Of 10)

G00786457

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 9: Identifying ECM Terminals and Specifications (9 Of 10)

G00786458

Courtesy of NISSAN MOTOR CO., U.S.A.

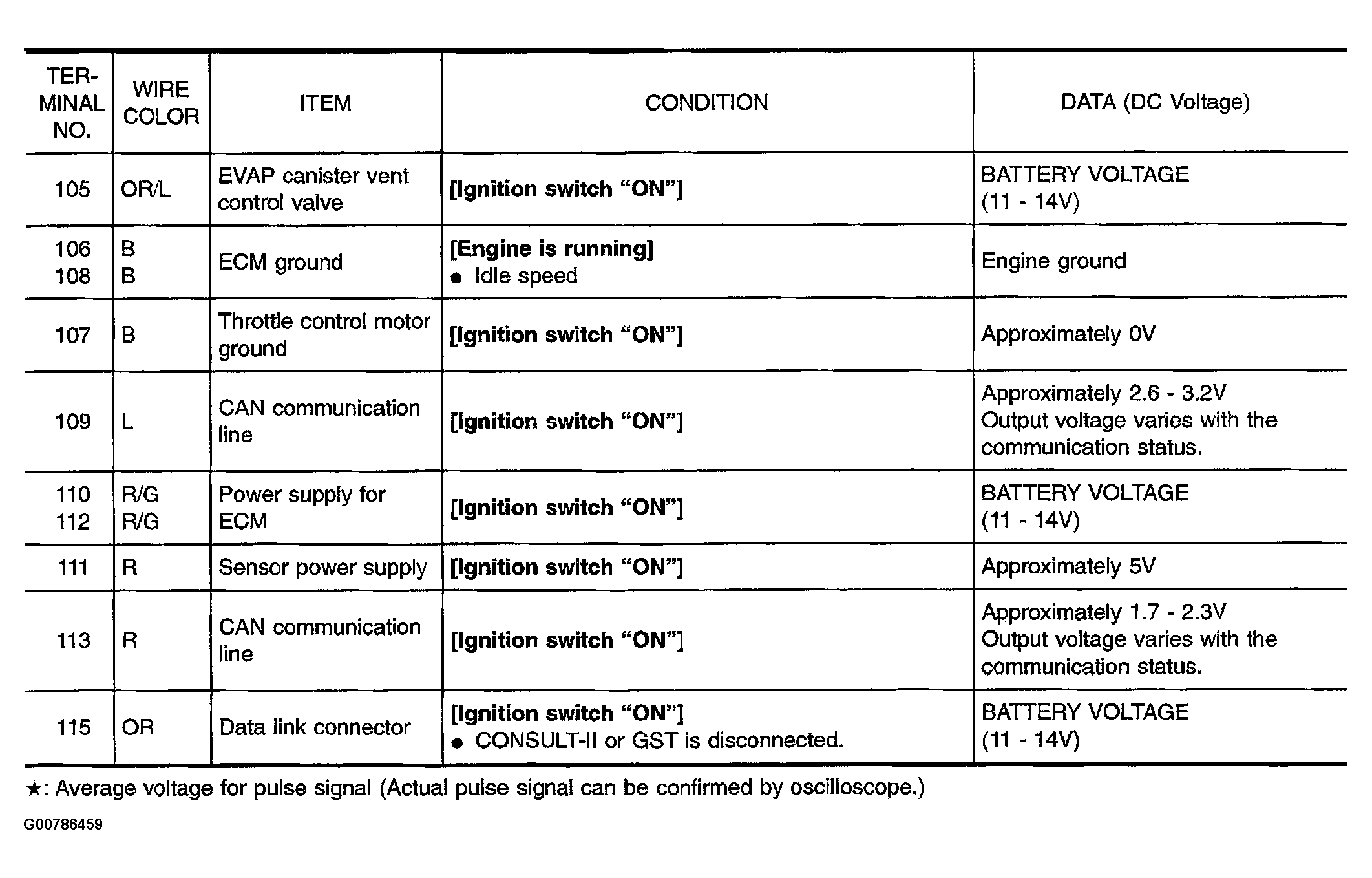

Fig 10: Identifying ECM Terminals and Specifications (10 Of 10)

G00786459

Courtesy of NISSAN MOTOR CO., U.S.A.
