System - Basic Engine Control System

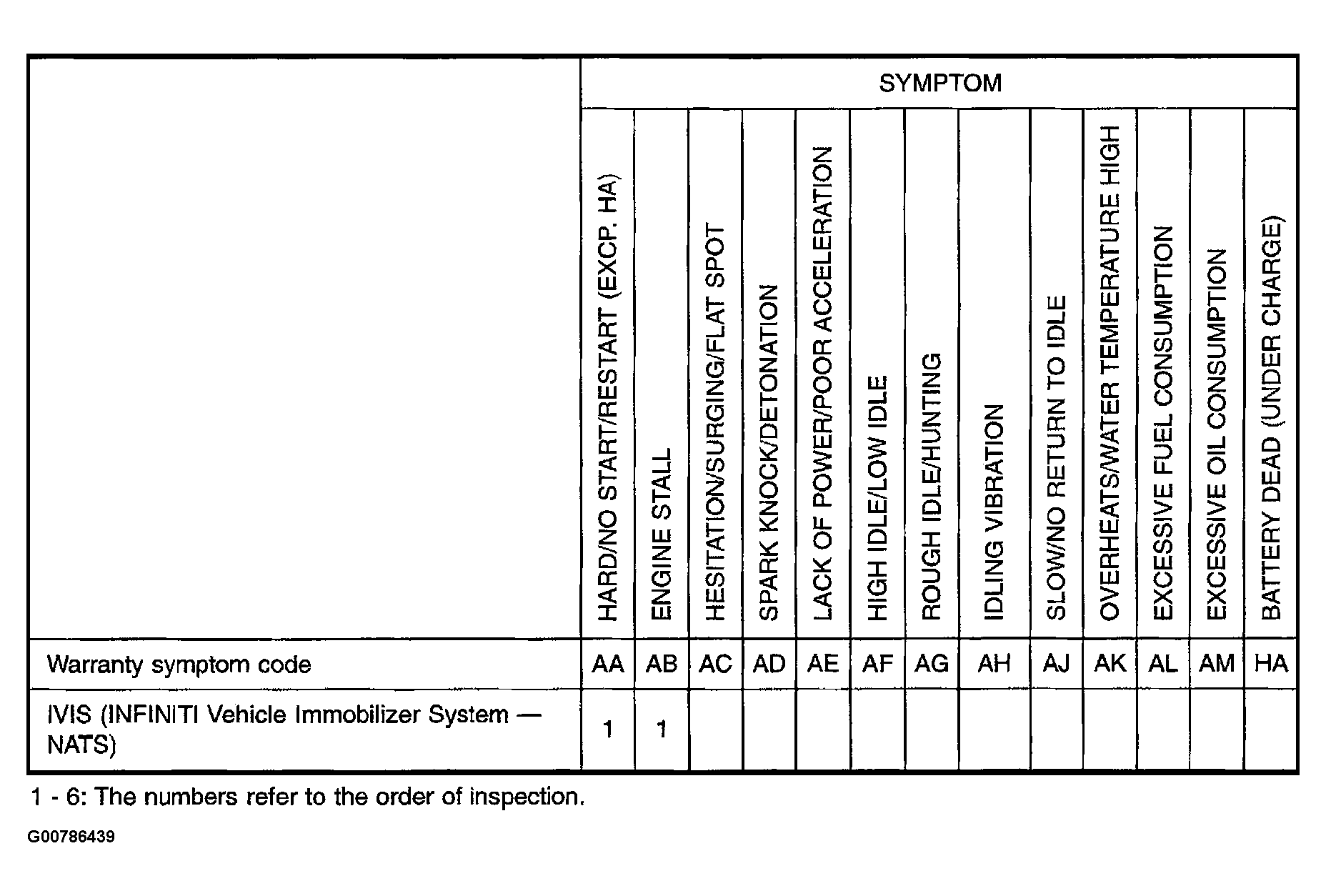

Fig 1: Displaying Symptom Matrix Chart (1 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

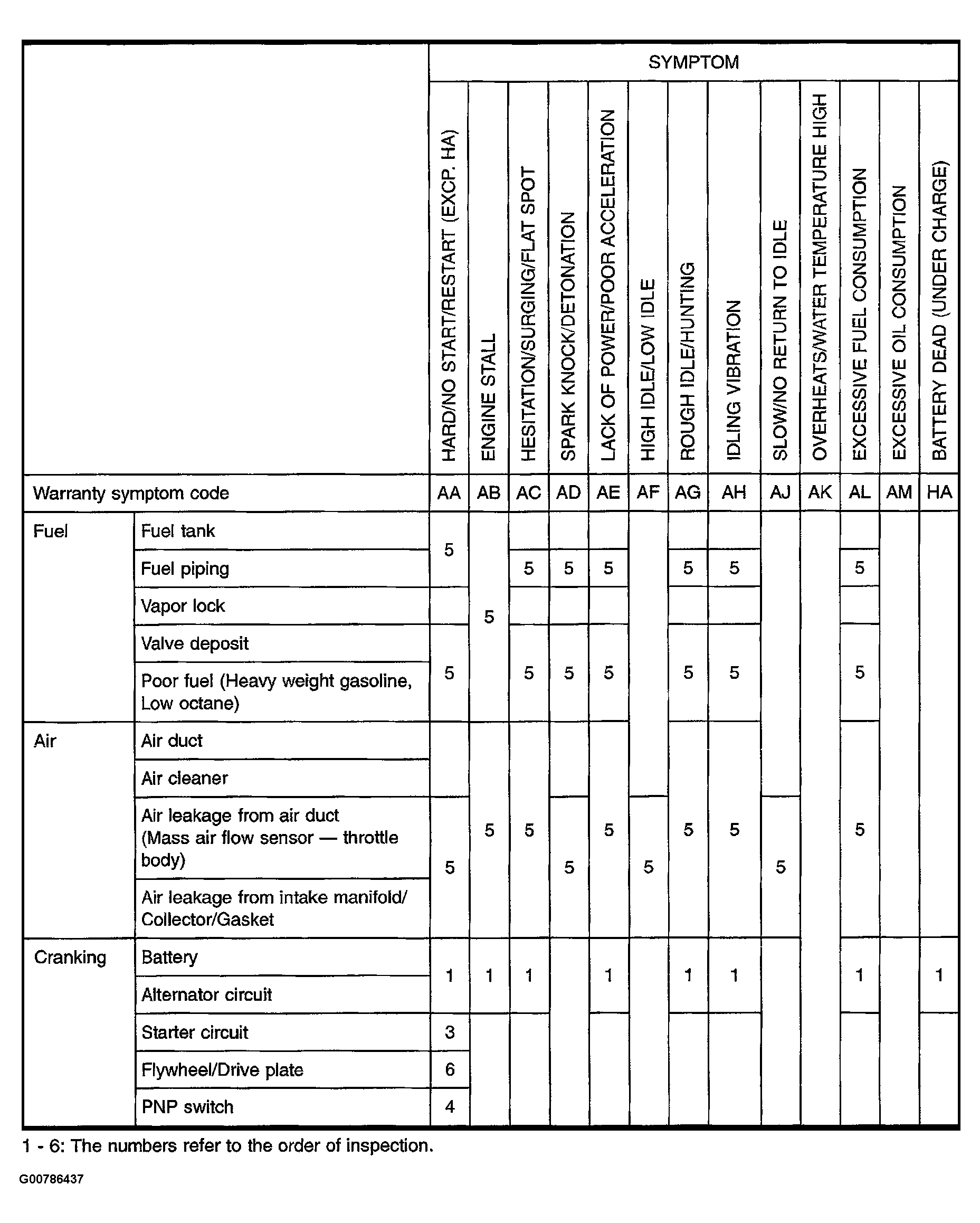

Fig 2: Displaying Symptom Matrix Chart (2 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

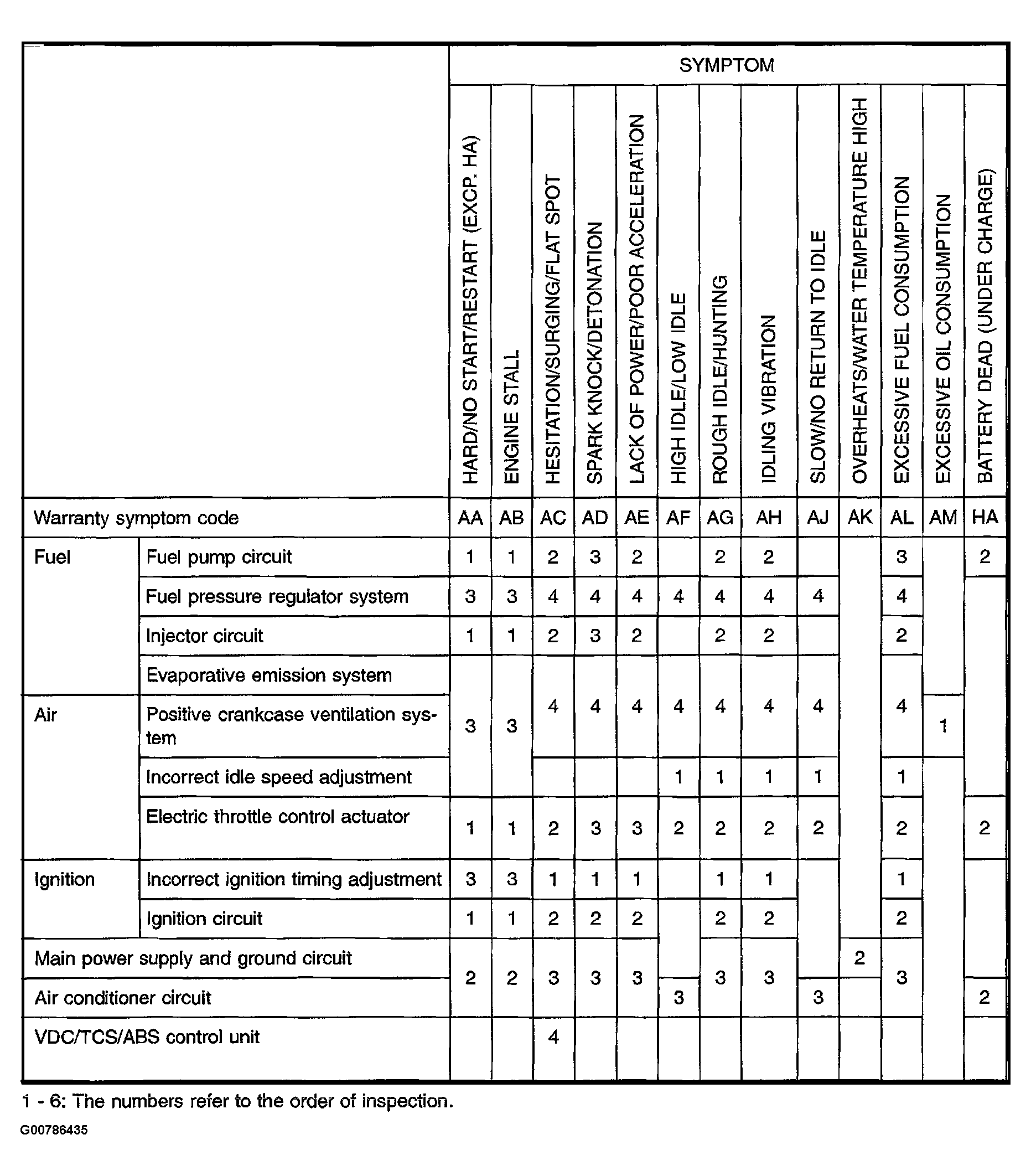

Fig 3: Displaying Symptom Matrix Chart (3 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

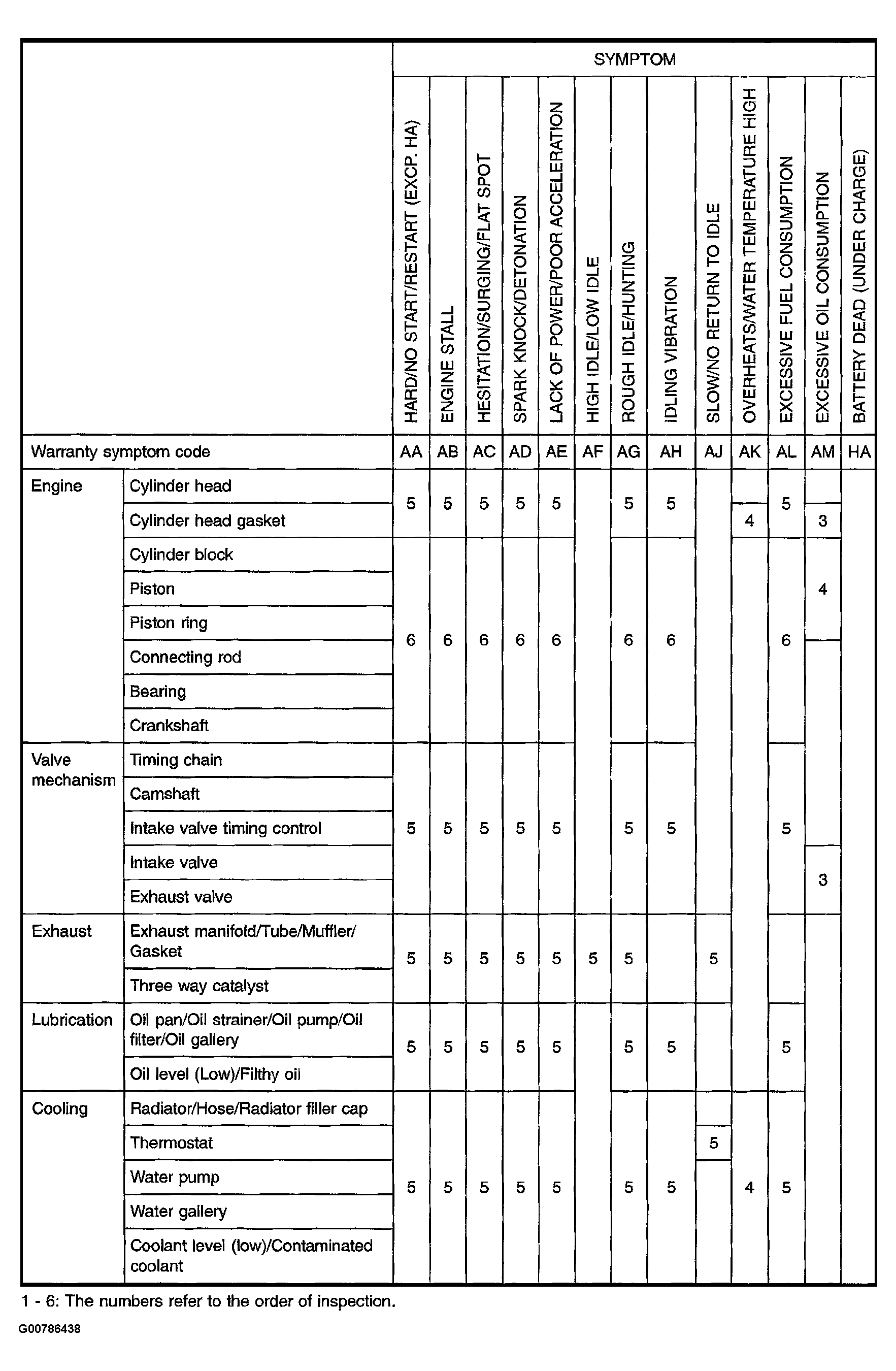

Fig 4: Displaying Symptom Matrix Chart (4 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.

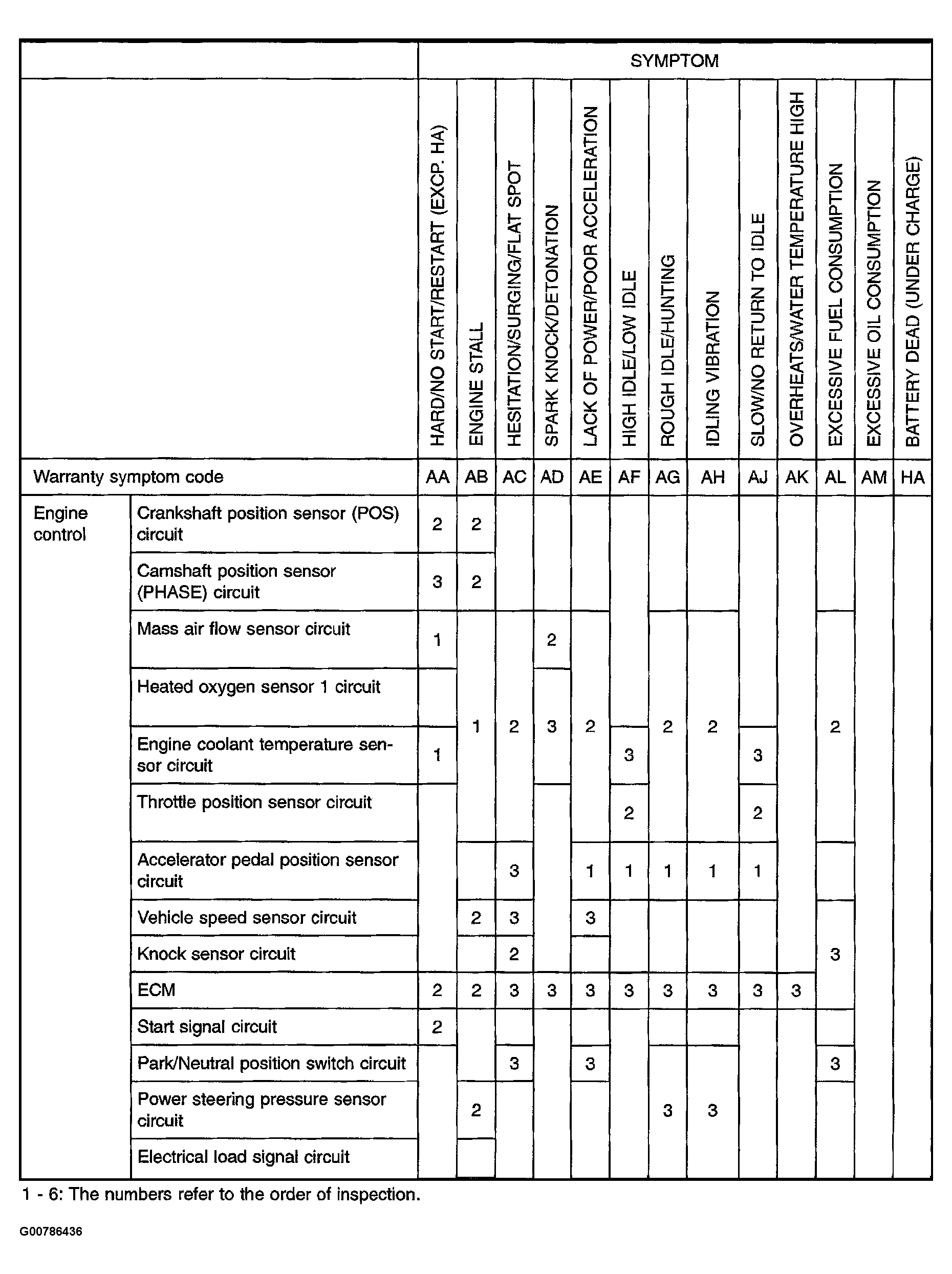

Fig 5: Displaying Symptom Matrix Chart (5 Of 5)
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
