Inspection Procedure

NOTE: Perform DATA MONITOR (SPEC) mode in maximum scale display.
  1. Perform Basic Inspection, BASIC INSPECTION  .
  2. Confirm that the testing conditions indicated above are met.
  3. Select B/FUEL SCHDL, A/F ALPHA-B1, A/F ALPHA-B2 and MAS A/F SE-B1 in DATA MONITOR (SPEC) mode with CONSULT-II.
  4. Make sure that monitor items are within the SP value.
  5. If NG, go to Diagnostic Procedures, DIAGNOSTIC PROCEDURE  .

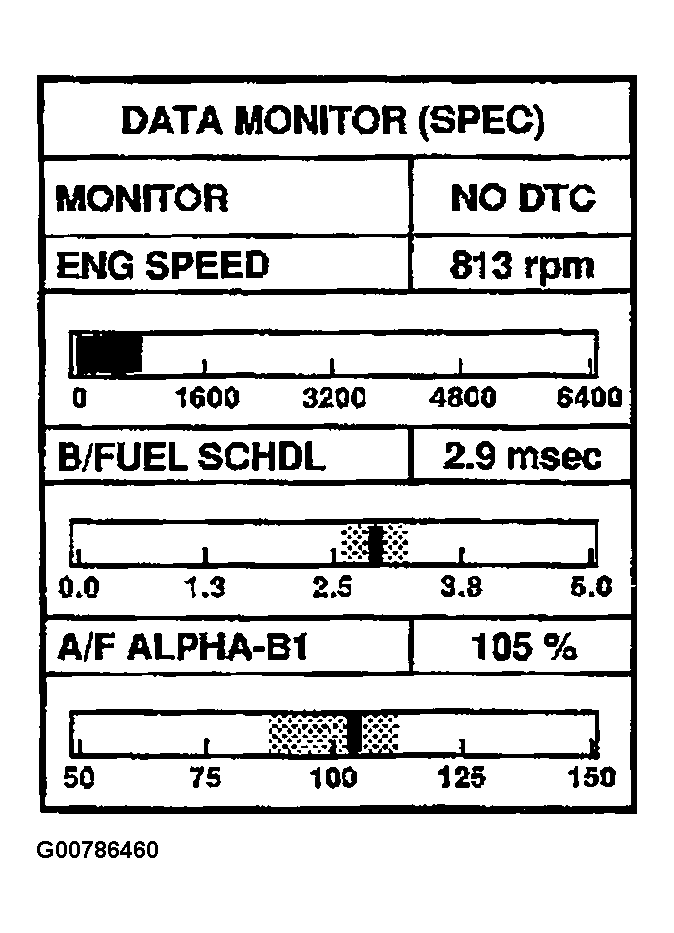

    Fig 1: Displaying CONSULT-II DATA MONITOR (SPEC) Screen
    G00786460Courtesy of NISSAN MOTOR CO., U.S.A.
