Input/Output Signal Chart

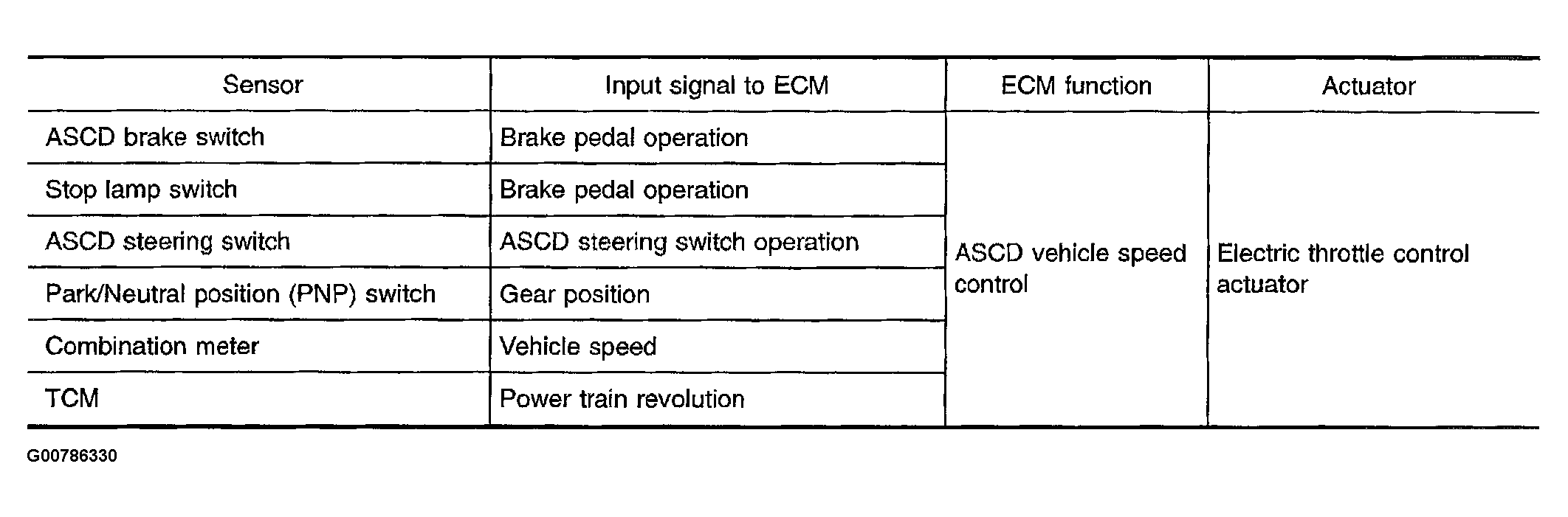

Fig 1: Automatic Speed Control Device Input/Output Signal Specifications
G00786330Courtesy of NISSAN MOTOR CO., U.S.A.
