CONSULT-II Main Function

WARNING: This page is about a different car, the 2003 Infiniti I35. However, it is still accessible from the selected car via links, so may be relevant.

In a diagnosis function (main function), there are "SELF-DIAGNOSTIC RESULTS", "DATA MONITOR", "CAN DIAG SUPPORT MNTR", "ACTIVE TEST", "FUNCTION TEST", "ECU PART NUMBER".

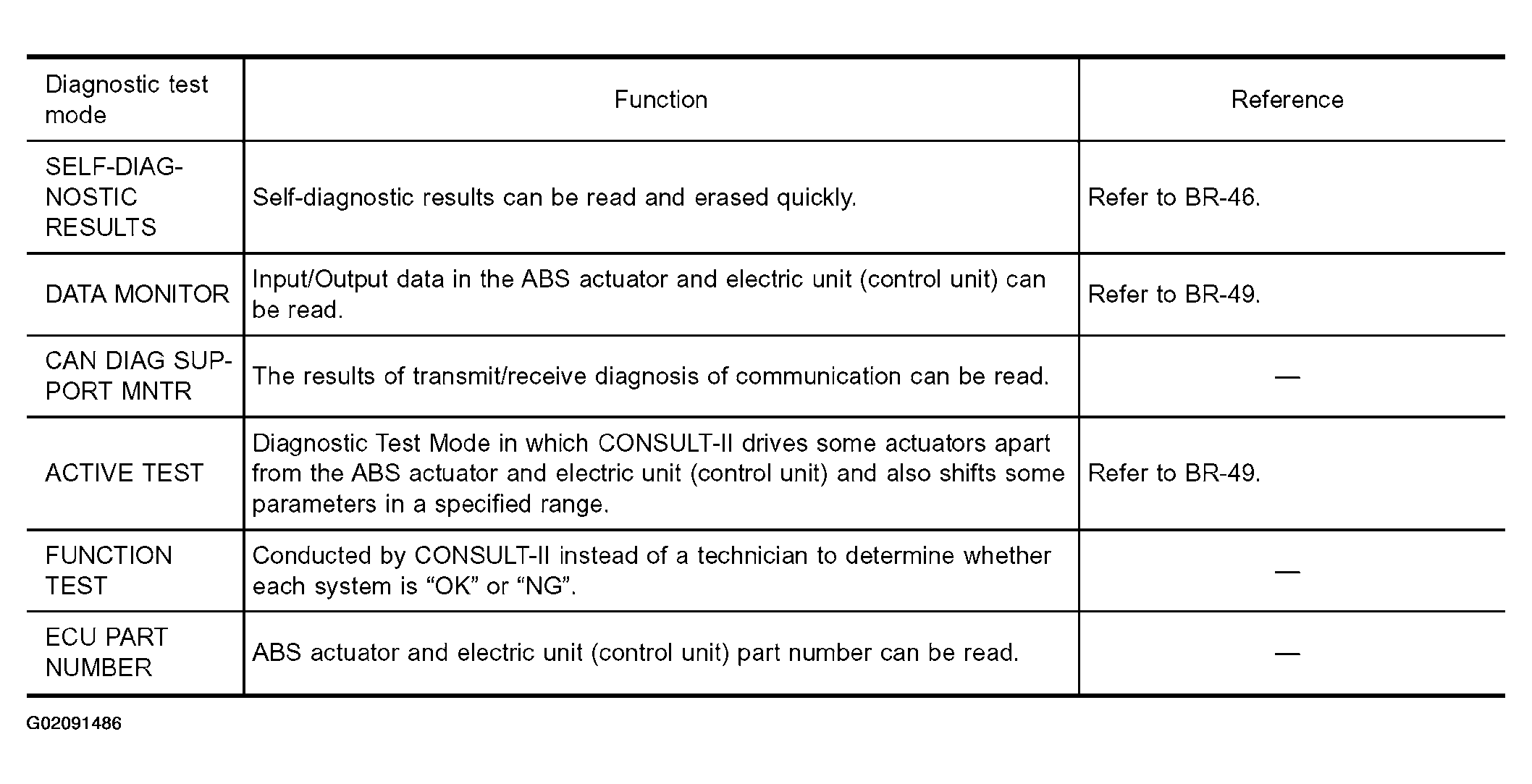

Fig 1: Identifying CONSULT-II Diagnostic Test Applications
G02091486Courtesy of NISSAN MOTOR CO., U.S.A.
