Cross-sectional View

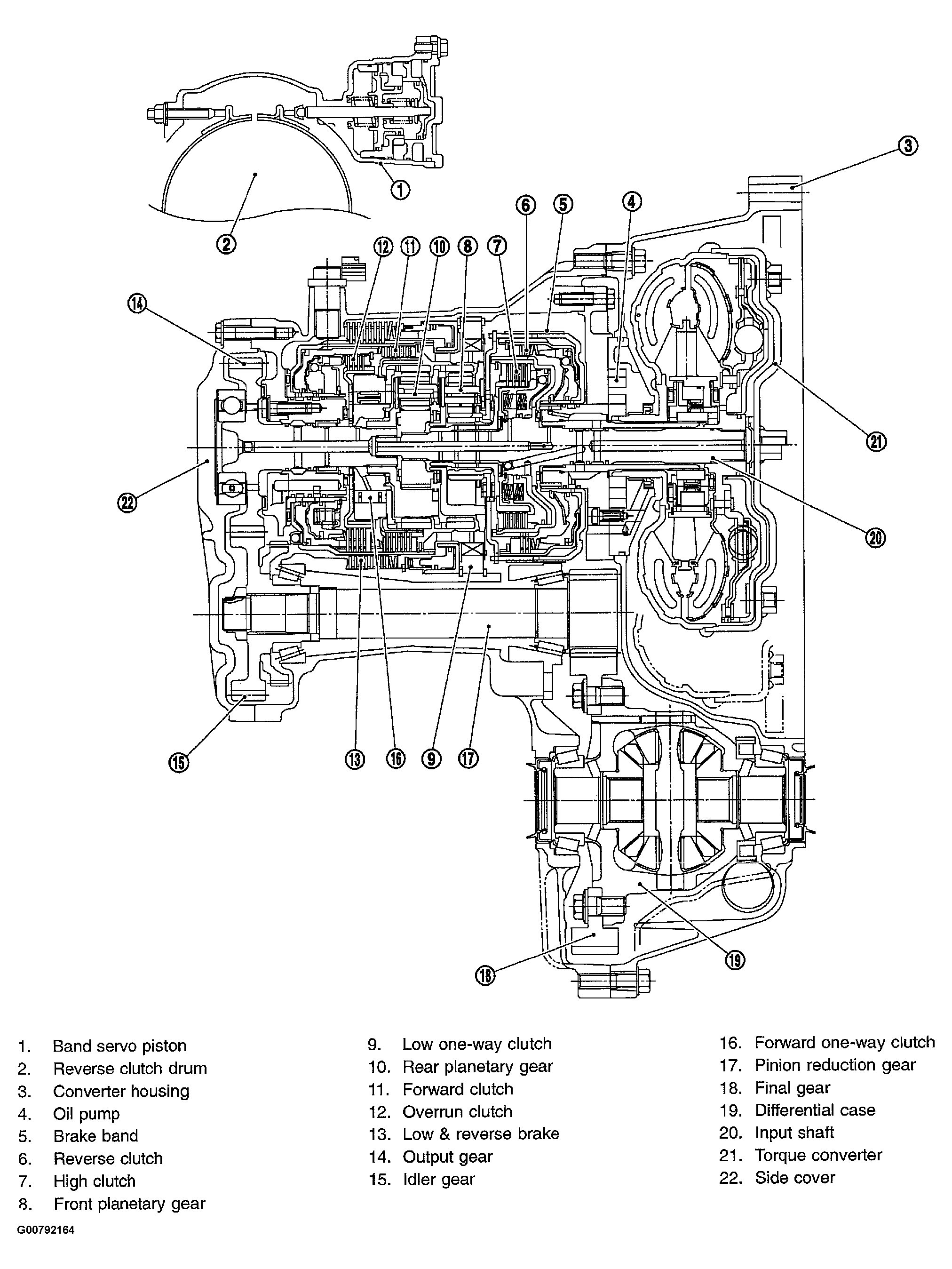

Fig 1: Identifying Cross-Sectional View For Overall System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
