Control Valve Assembly: Components

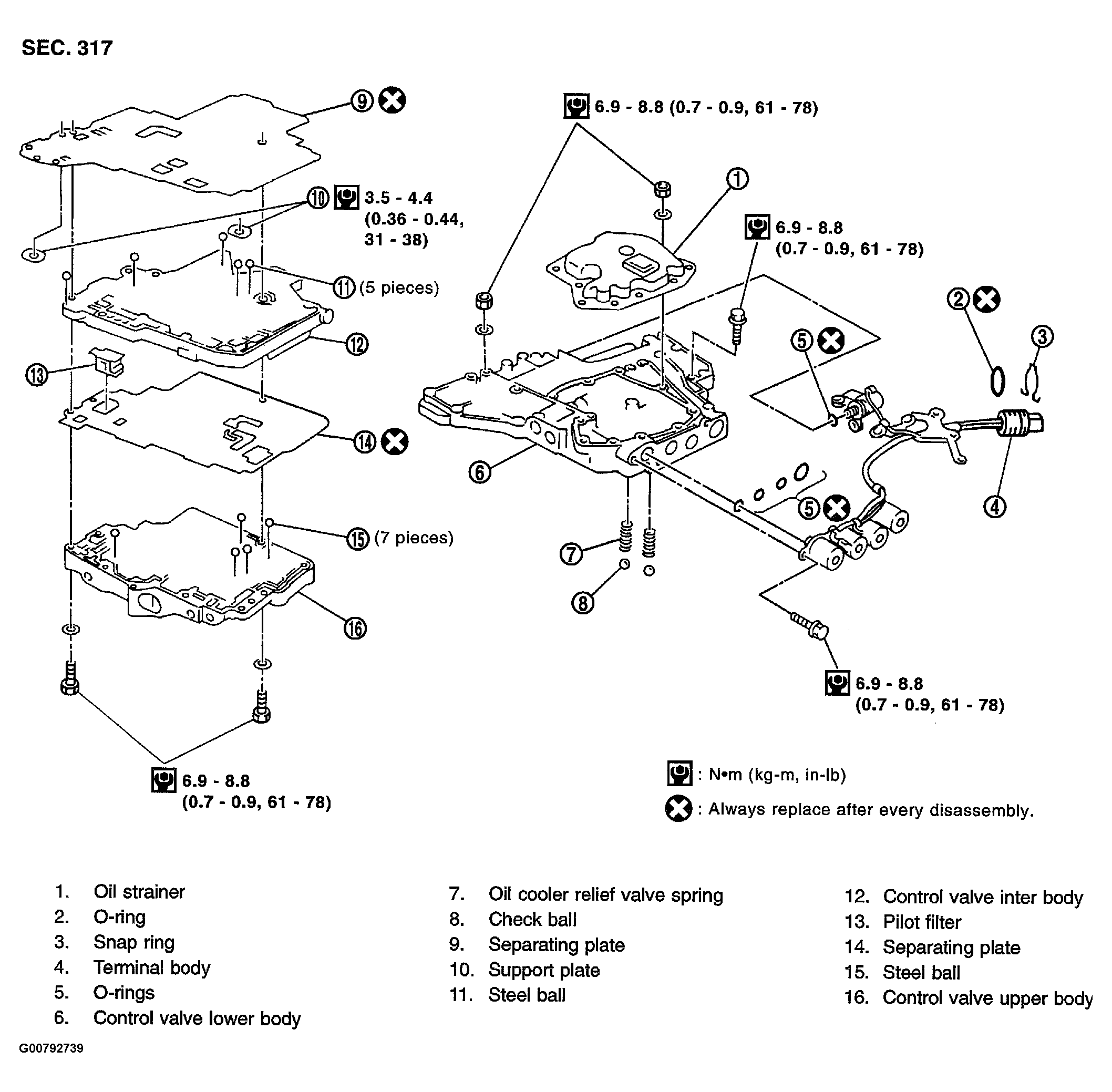

Fig 1: Exploded View Of Control Valve Assembly Components And Torque Specifications
G00792739Courtesy of NISSAN MOTOR CO., U.S.A.
