Work Flow Chart

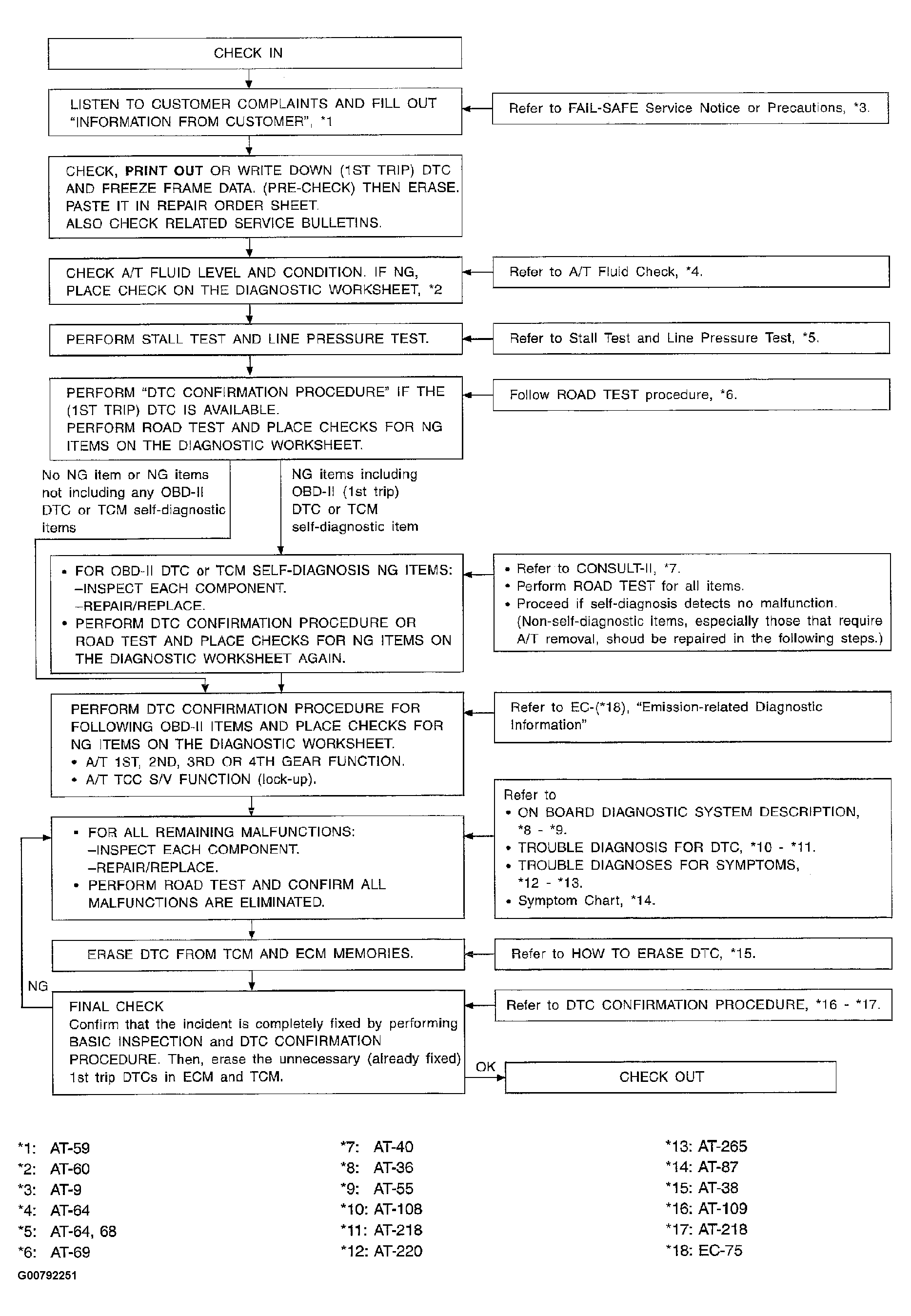

Fig 1: Trouble Diagnosis Work Flow Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
