Door Switch Check

With CONSULT-II

• Check door switch in "DATE MONITOR" mode with CONSULT-II.

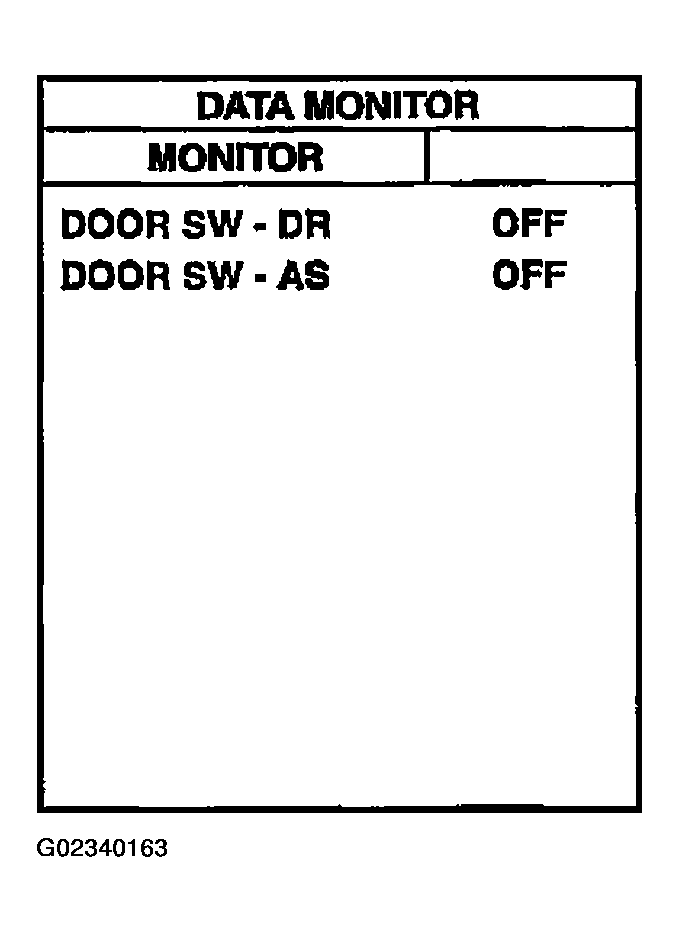

  Fig 1: Data Monitor Display

  Courtesy of NISSAN MOTOR CO., U.S.A.
  1. When door is opened: DOOR SW ON
  2. When door is closed: DOOR SW OFF

  Without CONSULT-II

• Check all door switches in switch monitor mode. Refer to Remote keyless entry system, see SWITCH MONITOR .

OK or NG

1. OK: Door switch is OK.
2. NG: Go to 2.

1. Turn ignition switch OFF.
2. Disconnect door switch connector.
3. Check continuity between following terminals and ground.

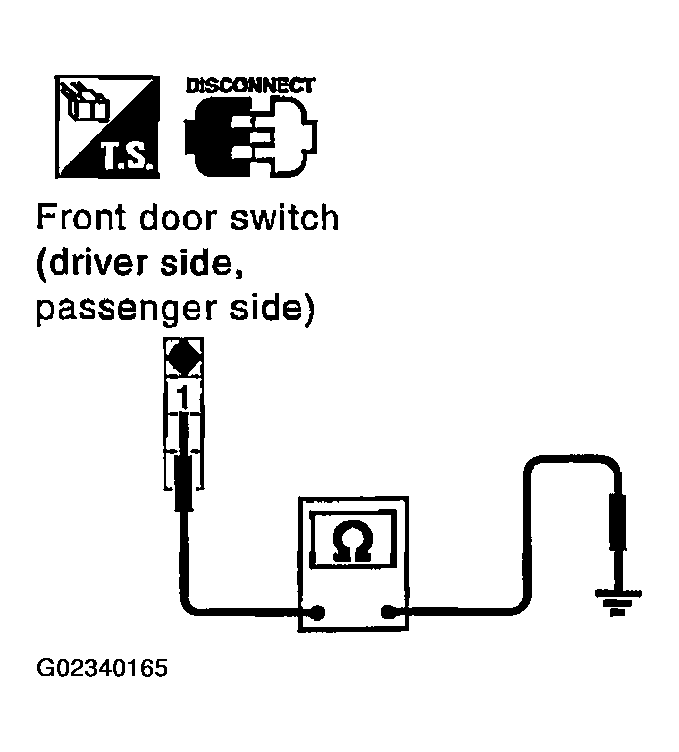

   Fig 2: Checking Door Switch

   Courtesy of NISSAN MOTOR CO., U.S.A.

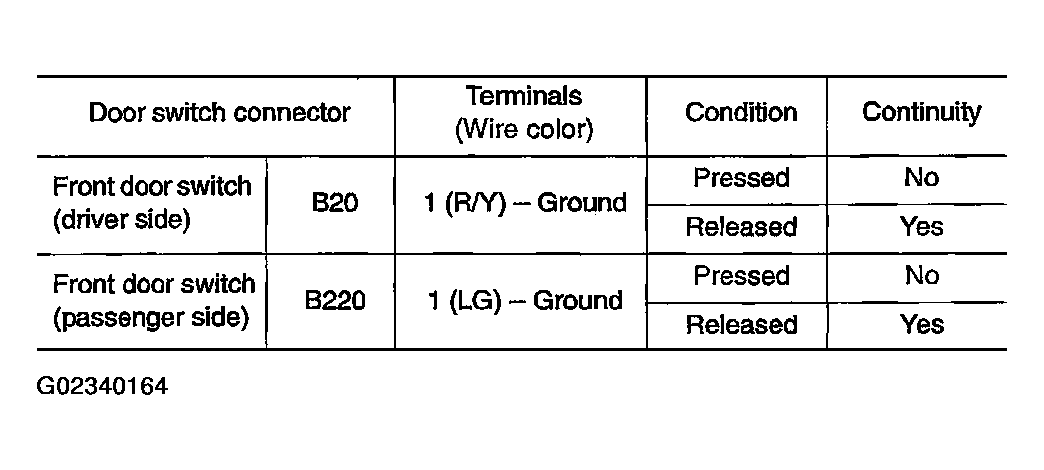

   Fig 3: Terminals Data Switch Connector Continuity Specifications

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Check harness for open and short between door switch and BCM.
2. NG: Check door switch ground condition.
