Component Installation Location

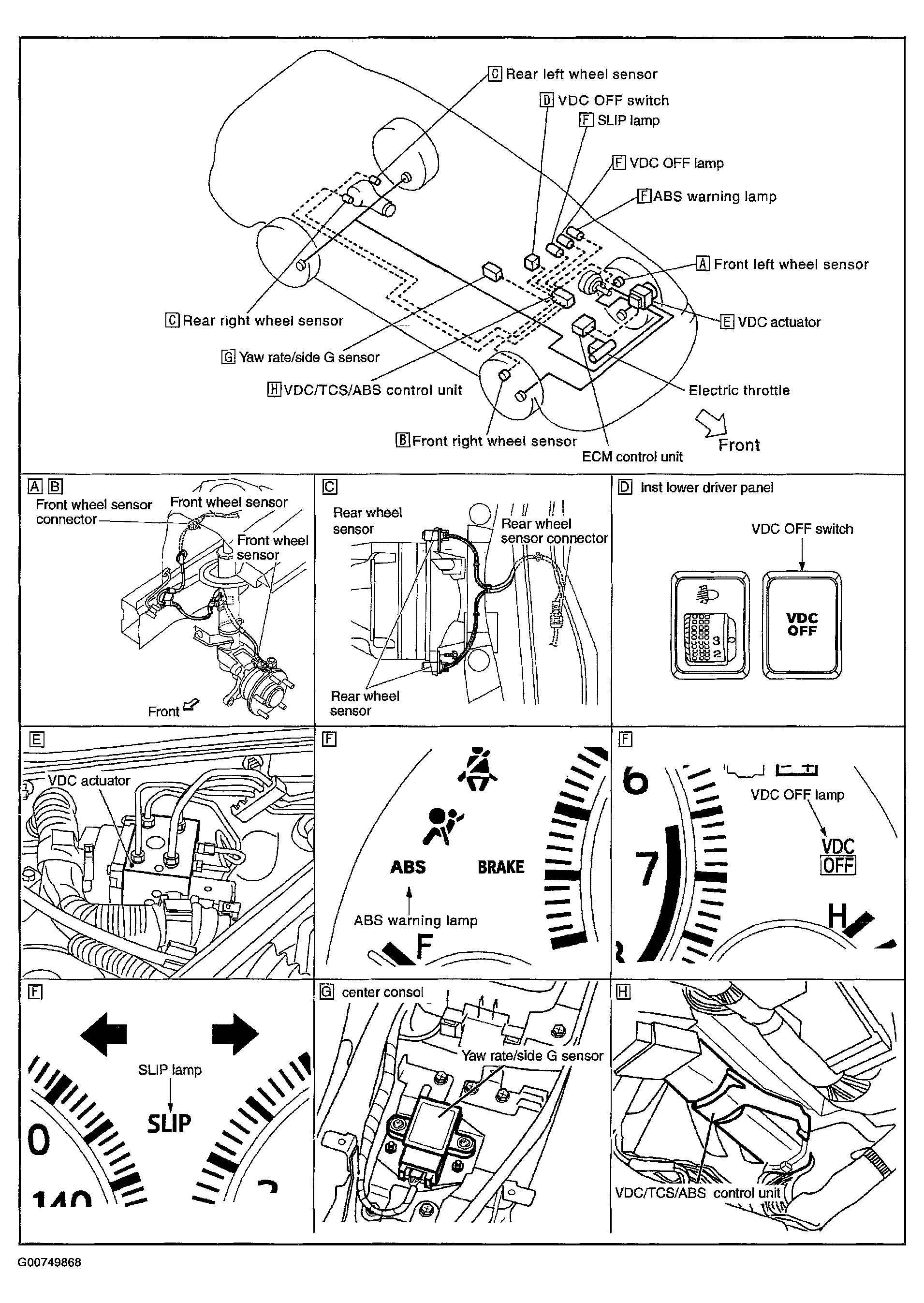

Fig 1: Identifying Location Of Brake Control System Components
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
