NOTE:
The display shows the control unit calculation data, so a normal value might be displayed even in the event the output circuit (harness) is open or short - circuited.

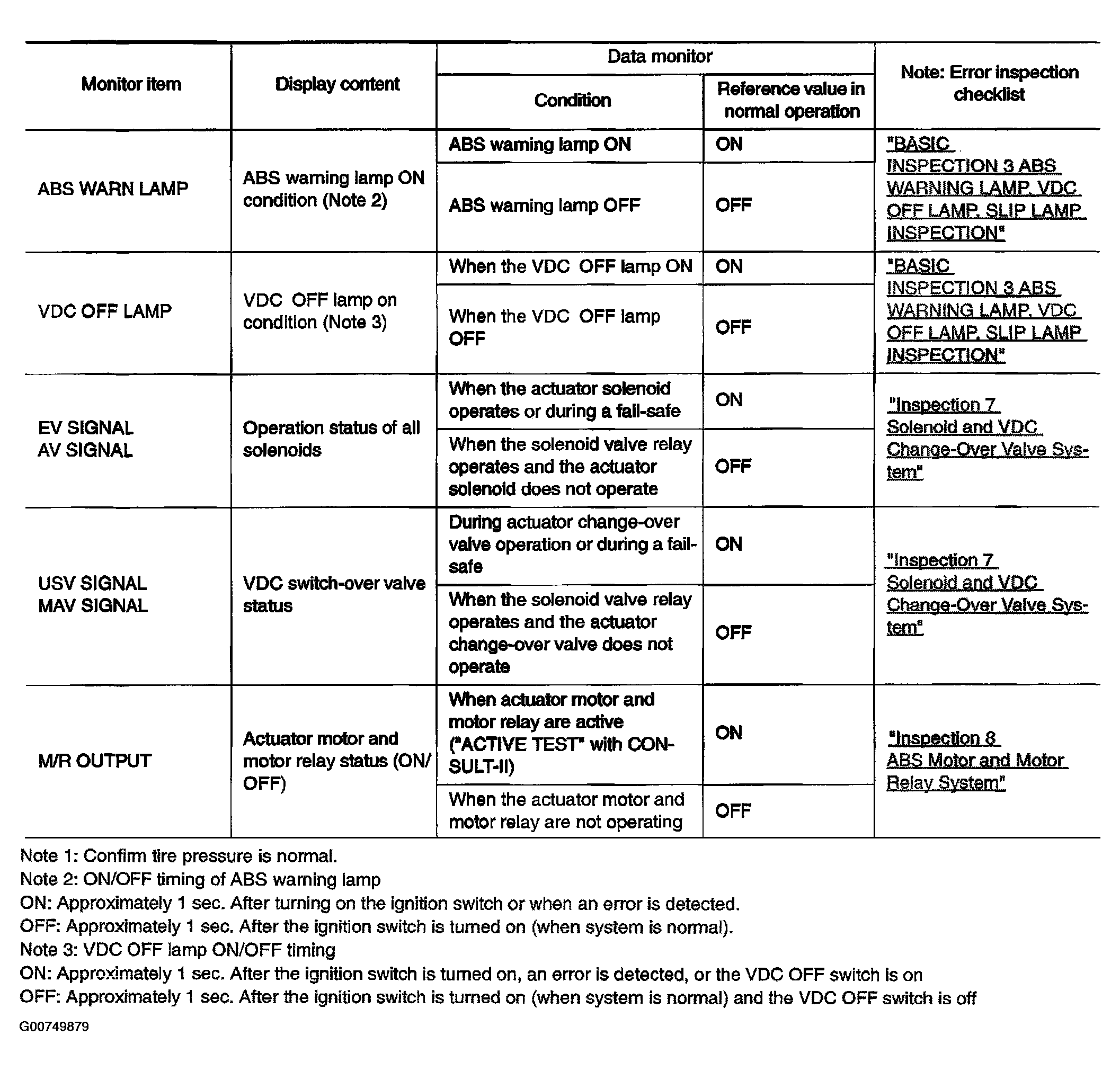

Fig 1: Determining Control Unit Input/Output Signal Standard Calculation Data (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

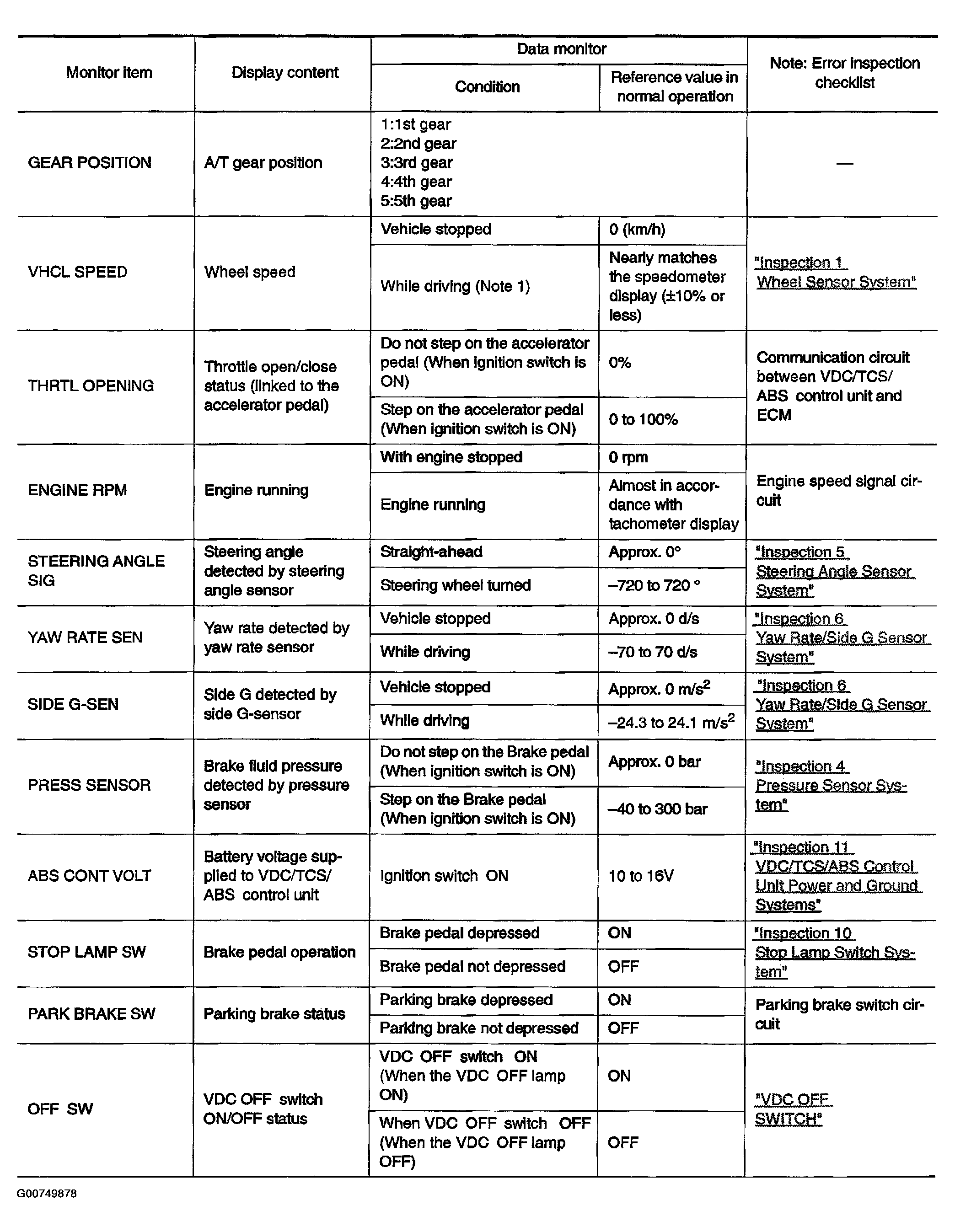

Fig 2: Determining Control Unit Input/Output Signal Standard Calculation Data (2 Of 2)
