Inspection 12 VDC/TCS/Abs Control Unit 2

SELF-DIAGNOSIS RESULT CHECK
Check self-diagnosis results.

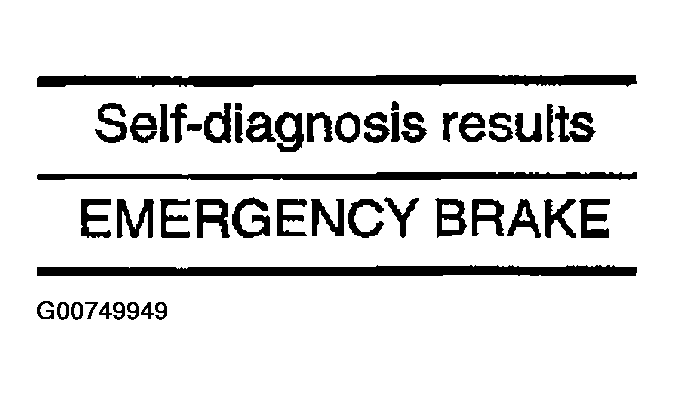

Fig 1: Identifying Self-Diagnosis Results
Courtesy of NISSAN MOTOR CO., U.S.A.

When any item other than "emergency brake" is indicated in self-diagnosis display, follow the instructions below.

NOTE: "Emergency brake" is indicated when control unit itself is detected as an error. If this display item is indicated, replace control unit.

Is the above displayed in the self-diagnosis display items?
1. YES: Replace the VDC/TCS/ABS control unit and re-conduct the self-diagnosis.
2. NO: Inspection End
