Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Dash

Courtesy of NISSAN MOTOR CO., U.S.A.

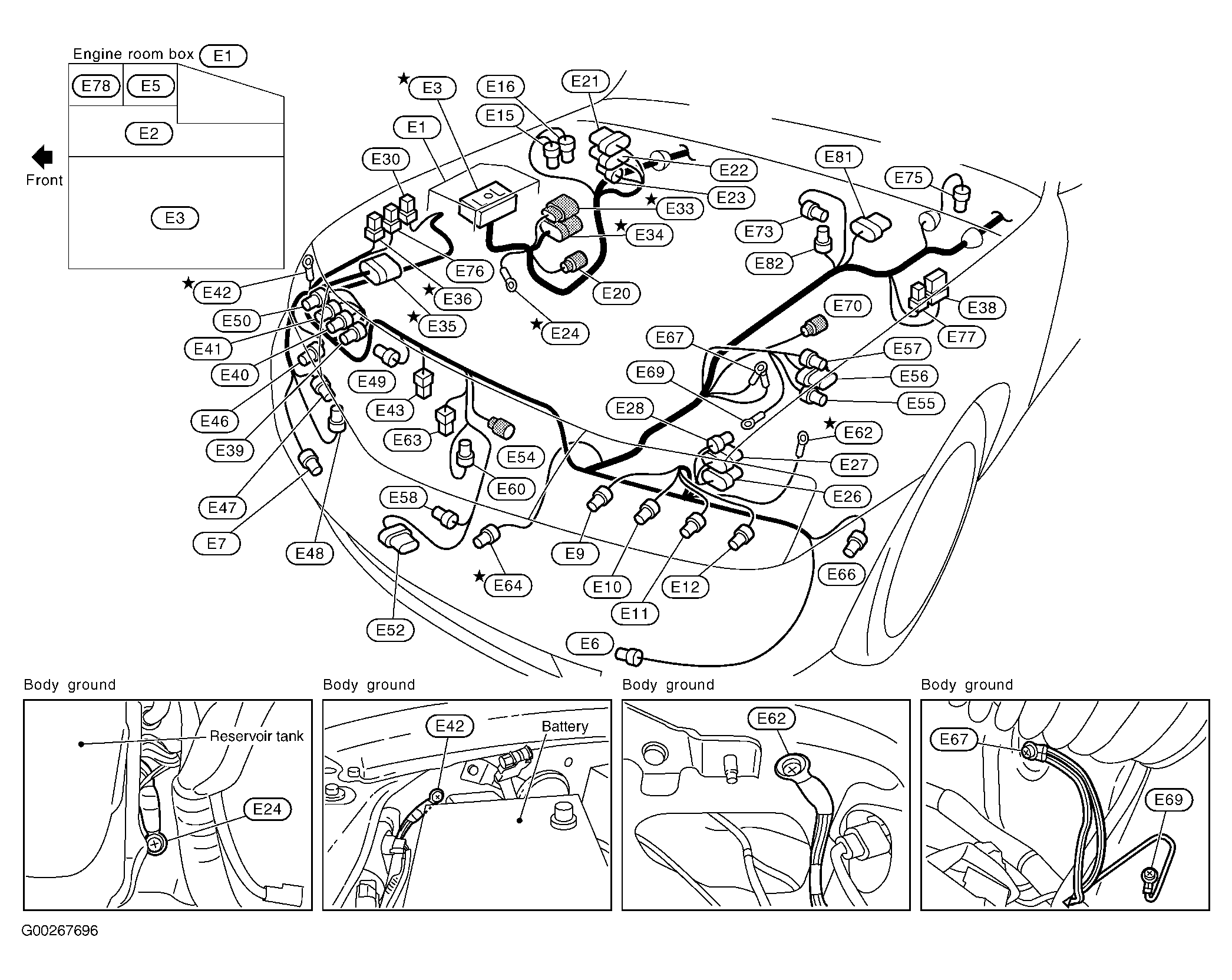

Fig 2: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

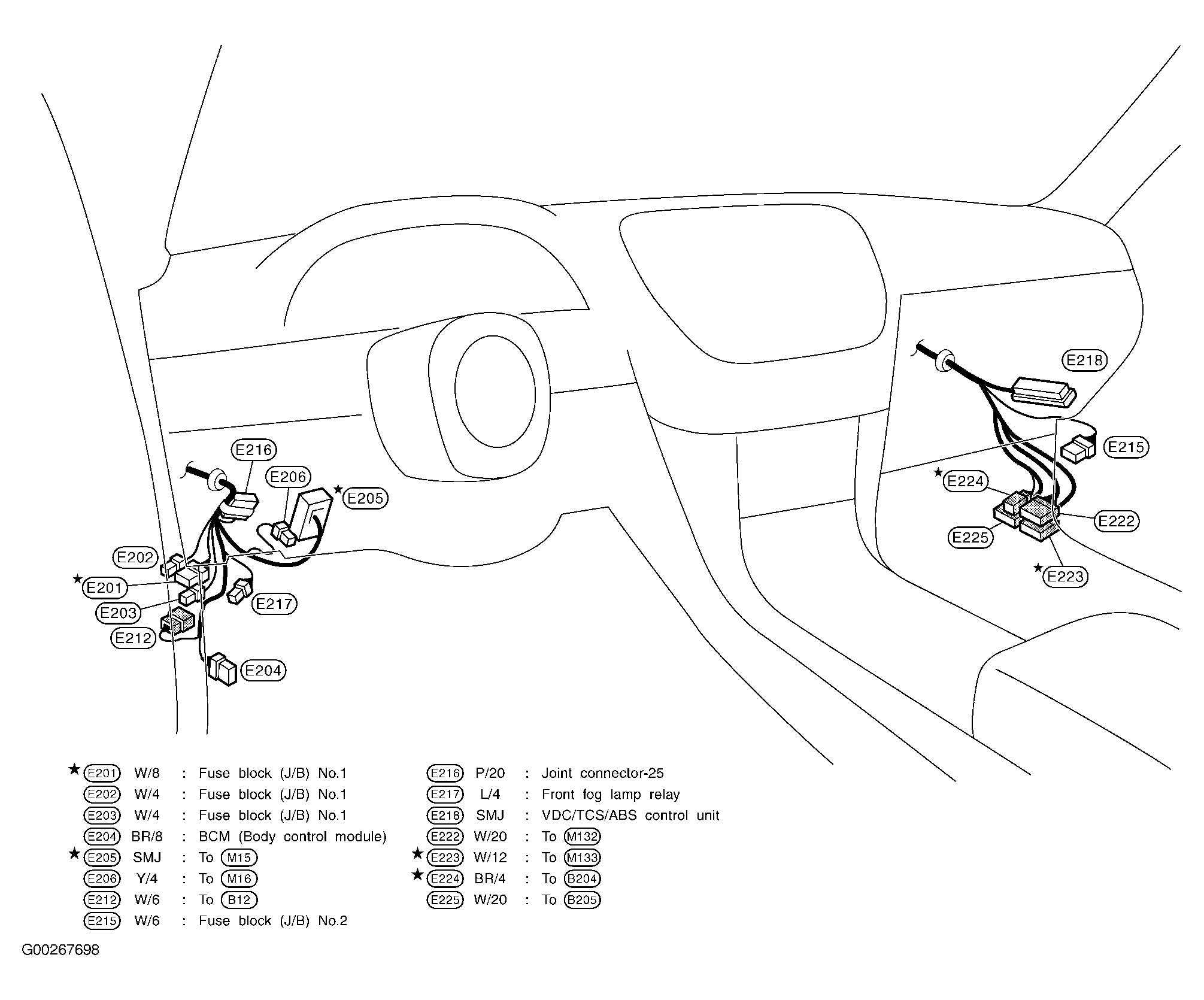

Fig 3: Left & Right Kick Panels

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 4: Right Side Of Engine

Courtesy of NISSAN MOTOR CO., U.S.A.

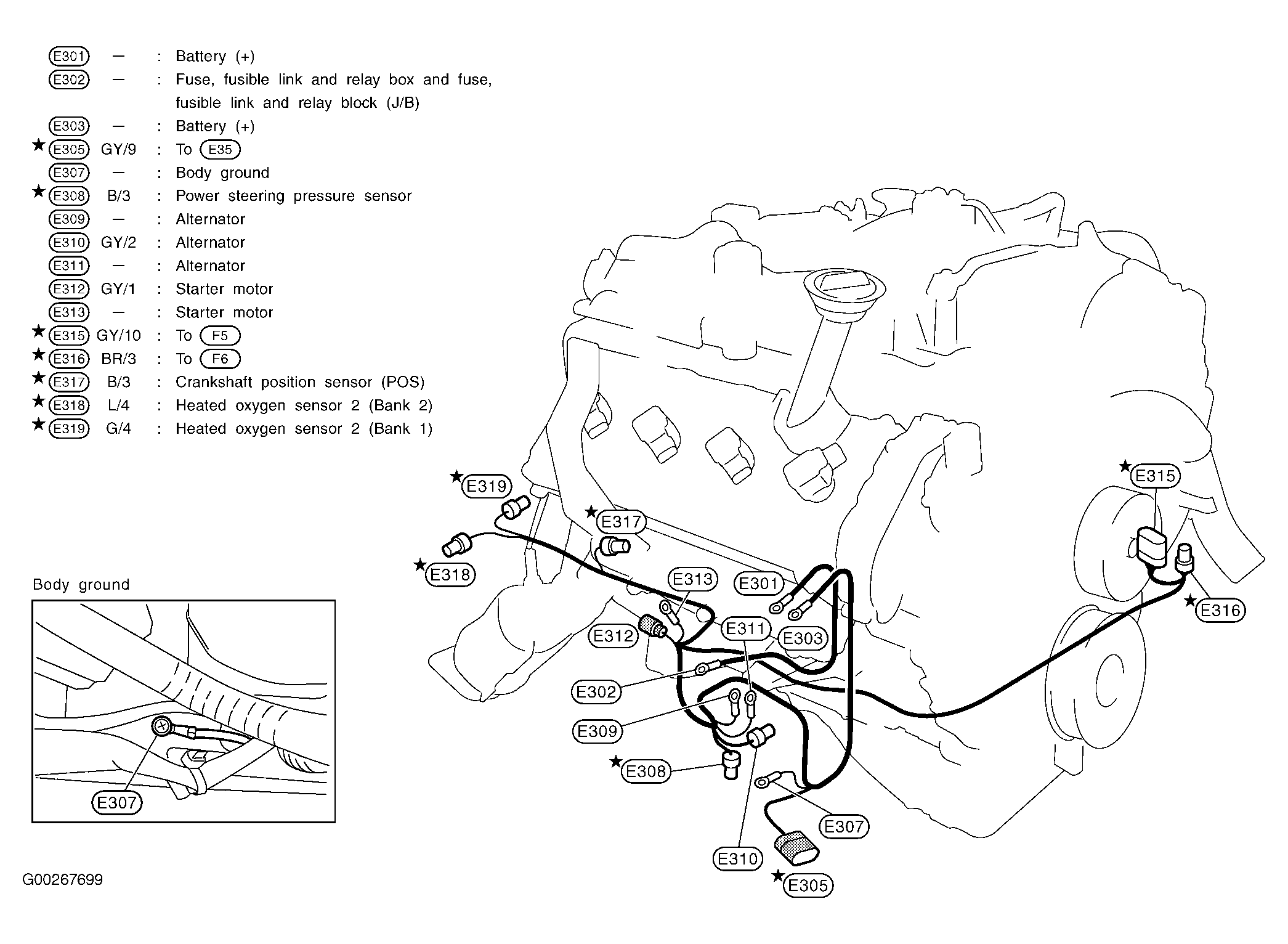

Fig 5: Engine

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 6: Left Side Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 7: Right Side Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.

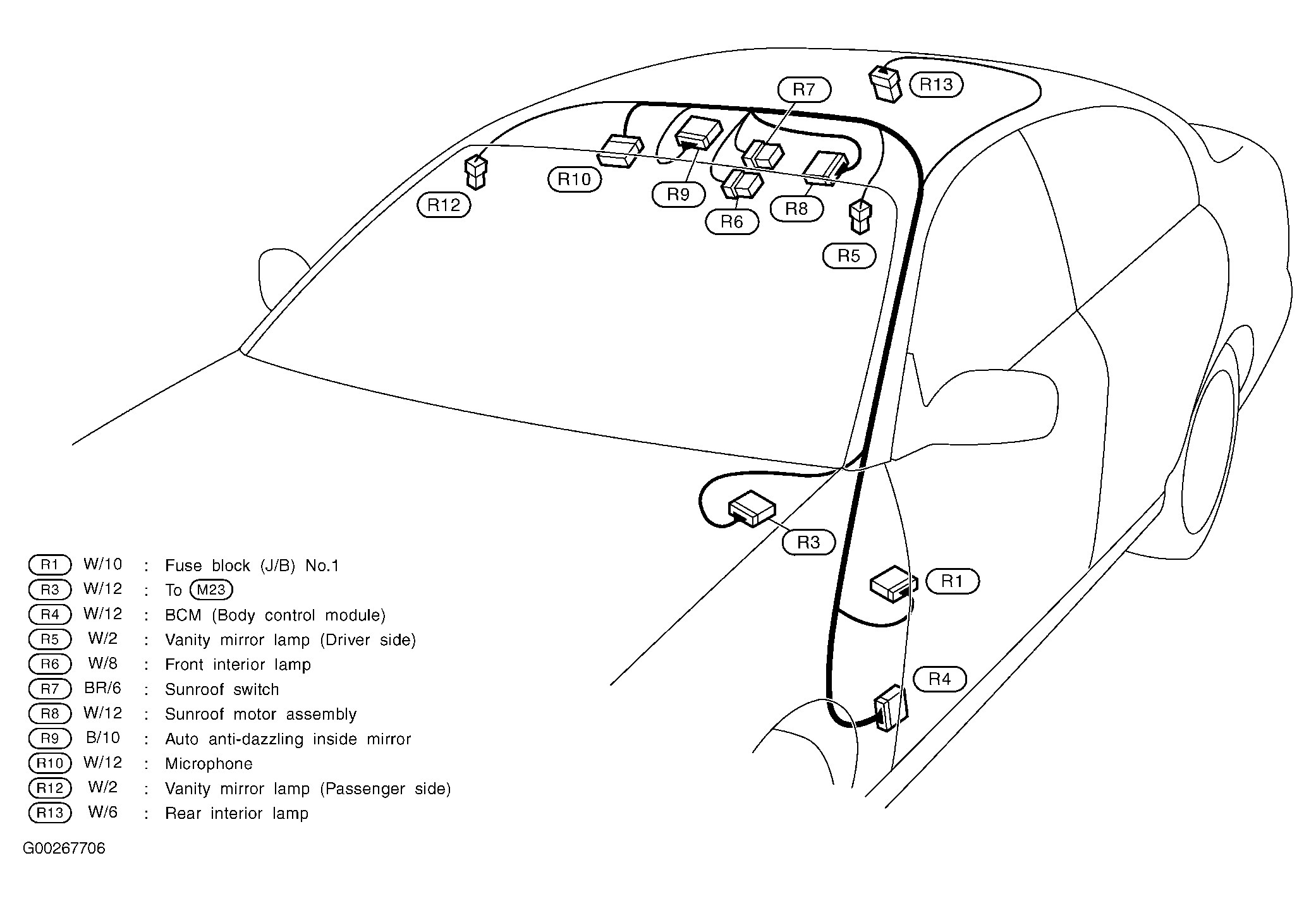

Fig 8: Roof

Courtesy of NISSAN MOTOR CO., U.S.A.

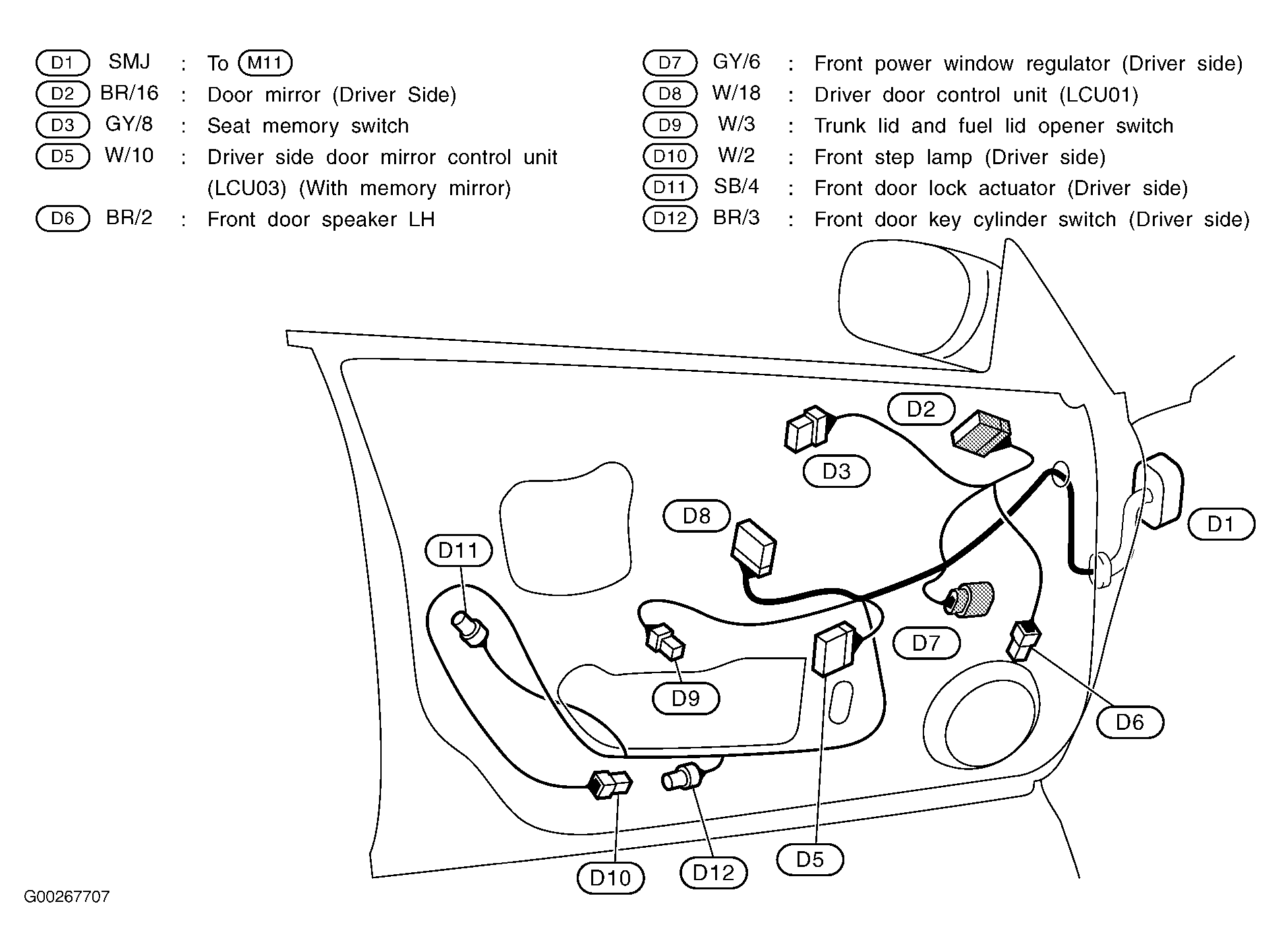

Fig 9: Driver's Door

Courtesy of NISSAN MOTOR CO., U.S.A.

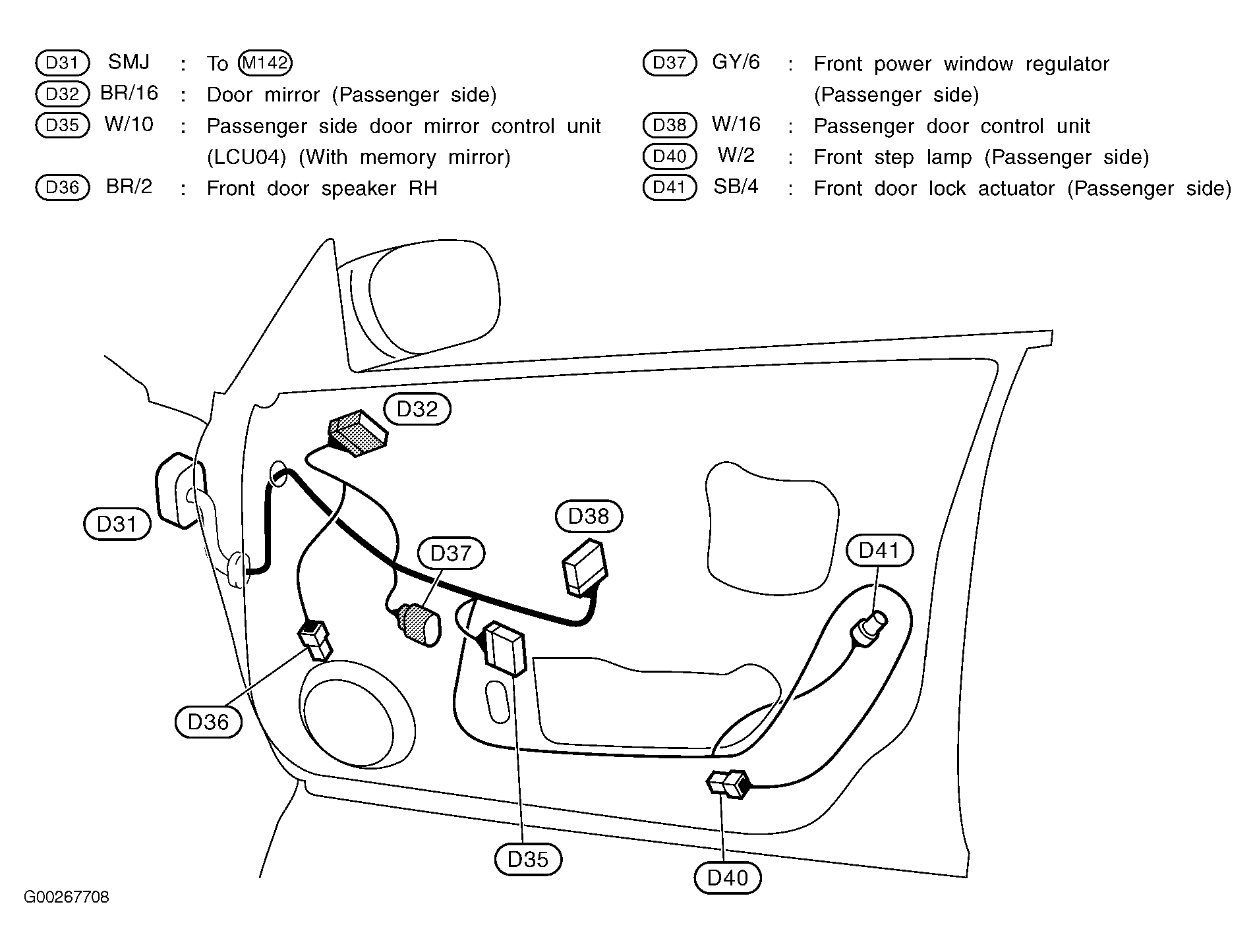

Fig 10: Front Passenger Door

Courtesy of NISSAN MOTOR CO., U.S.A.

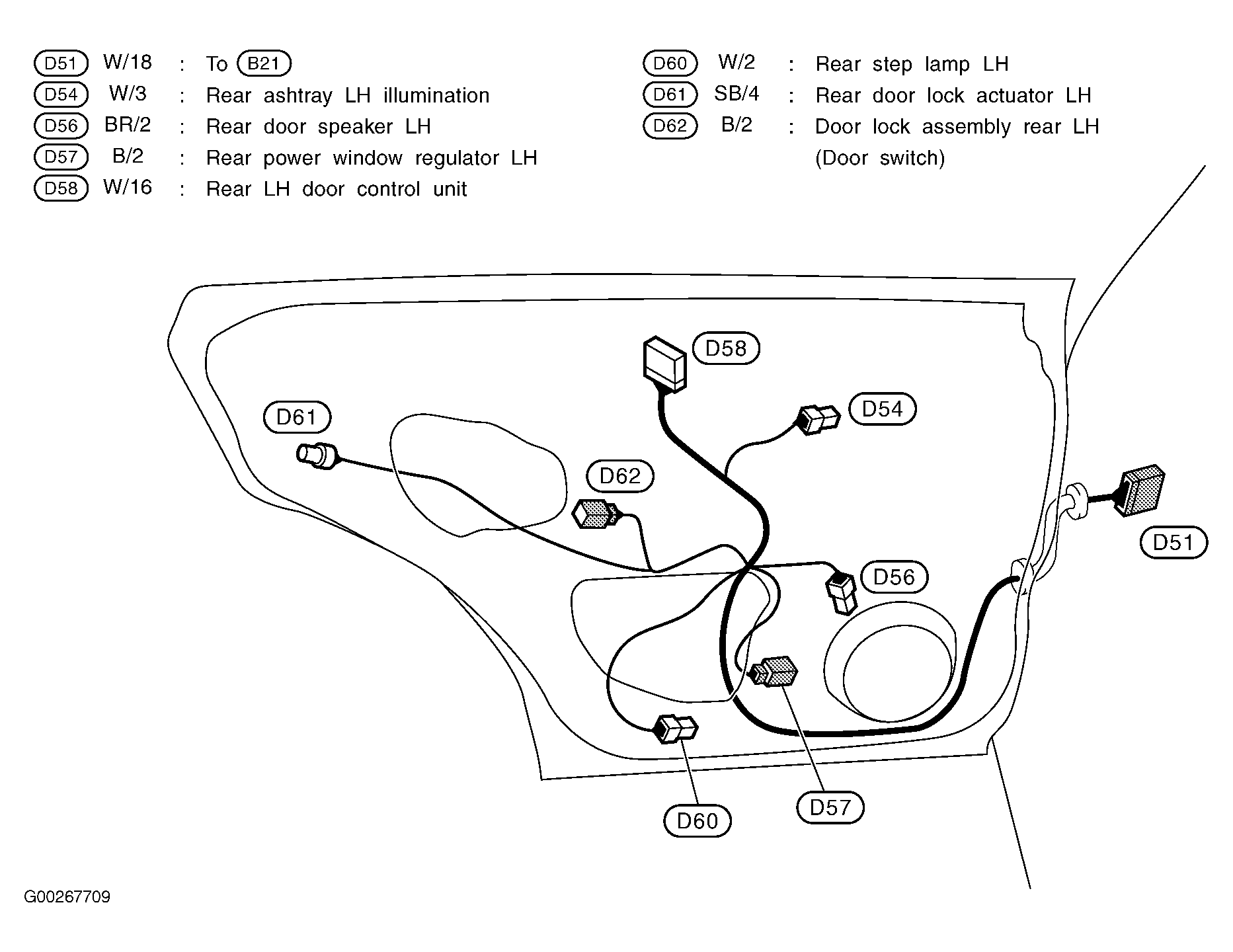

Fig 11: Left Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

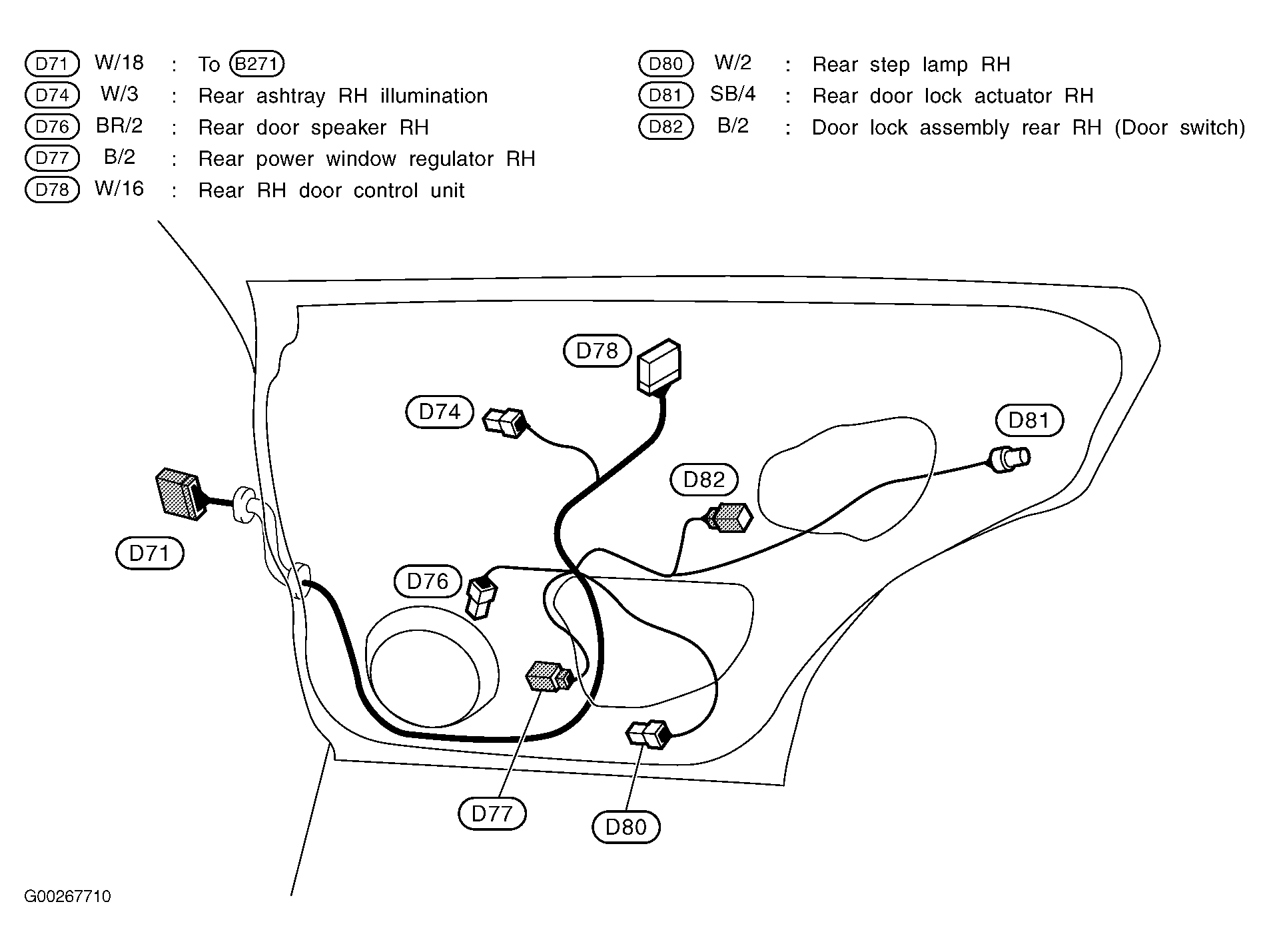

Fig 12: Right Rear Door

Courtesy of NISSAN MOTOR CO., U.S.A.

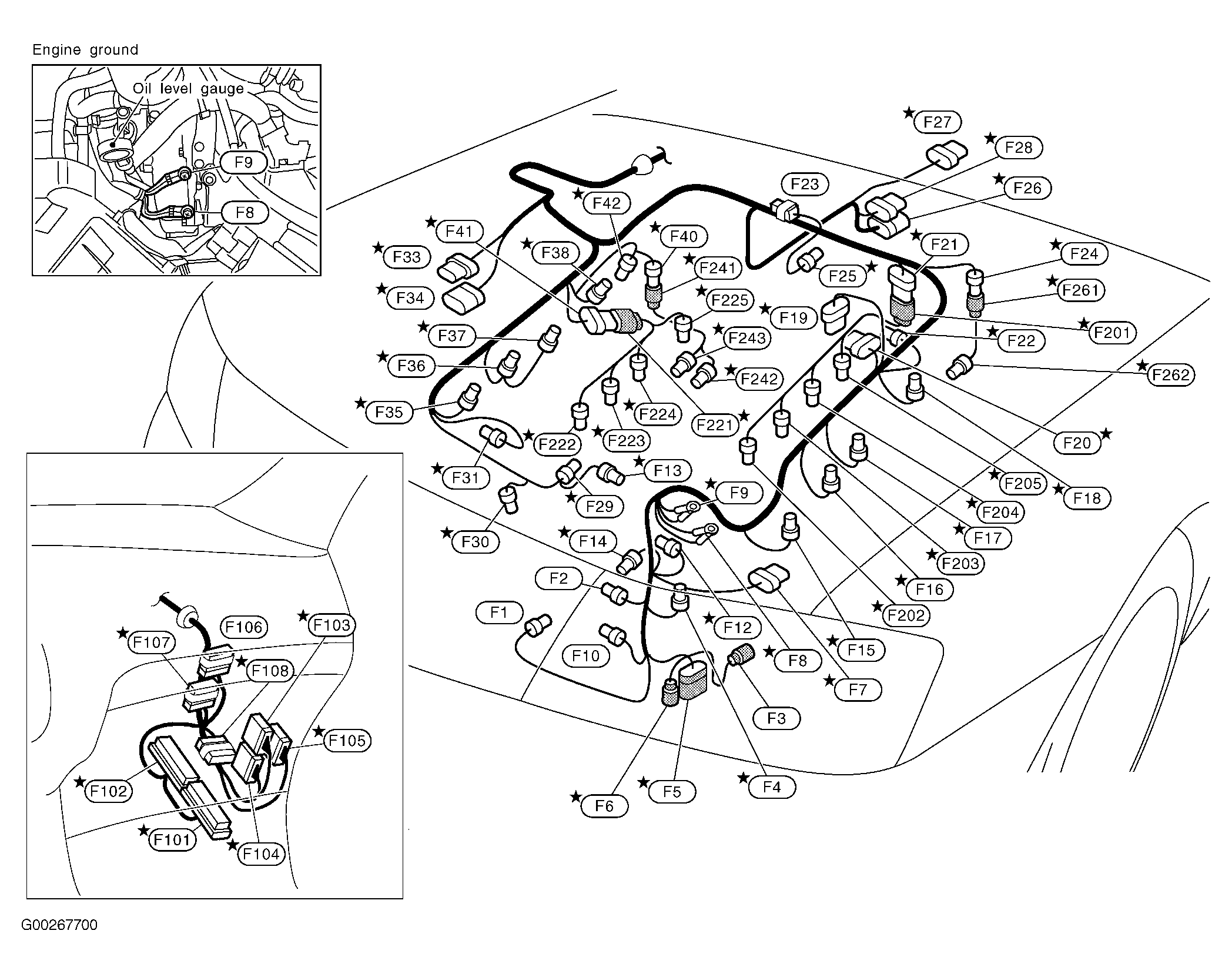

Fig 13: Engine Compartment

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 14: Dash Components (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 15: Dash Components (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 16: Rear Of Vehicle

Courtesy of NISSAN MOTOR CO., U.S.A.
