Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

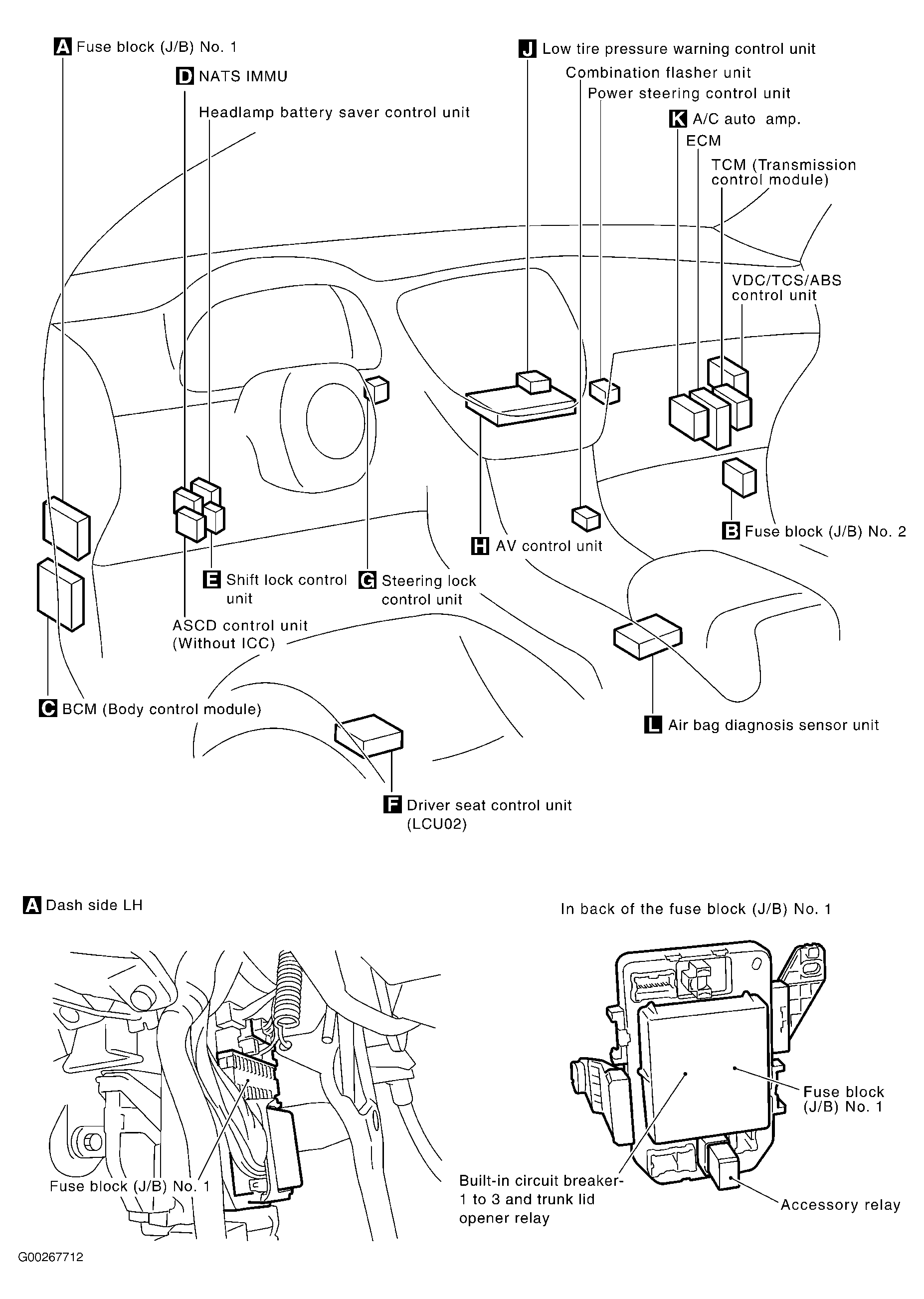

| A/C Auto Amp. | Behind right side of dash, near blower motor. See Figure . |
| ASCD Control Unit | Behind dash, left of steering column. See Figure . |
| A/T Device (M97) | Under center console. See Figure . |
| AV Control Unit | Behind center of dash. See Figure . |

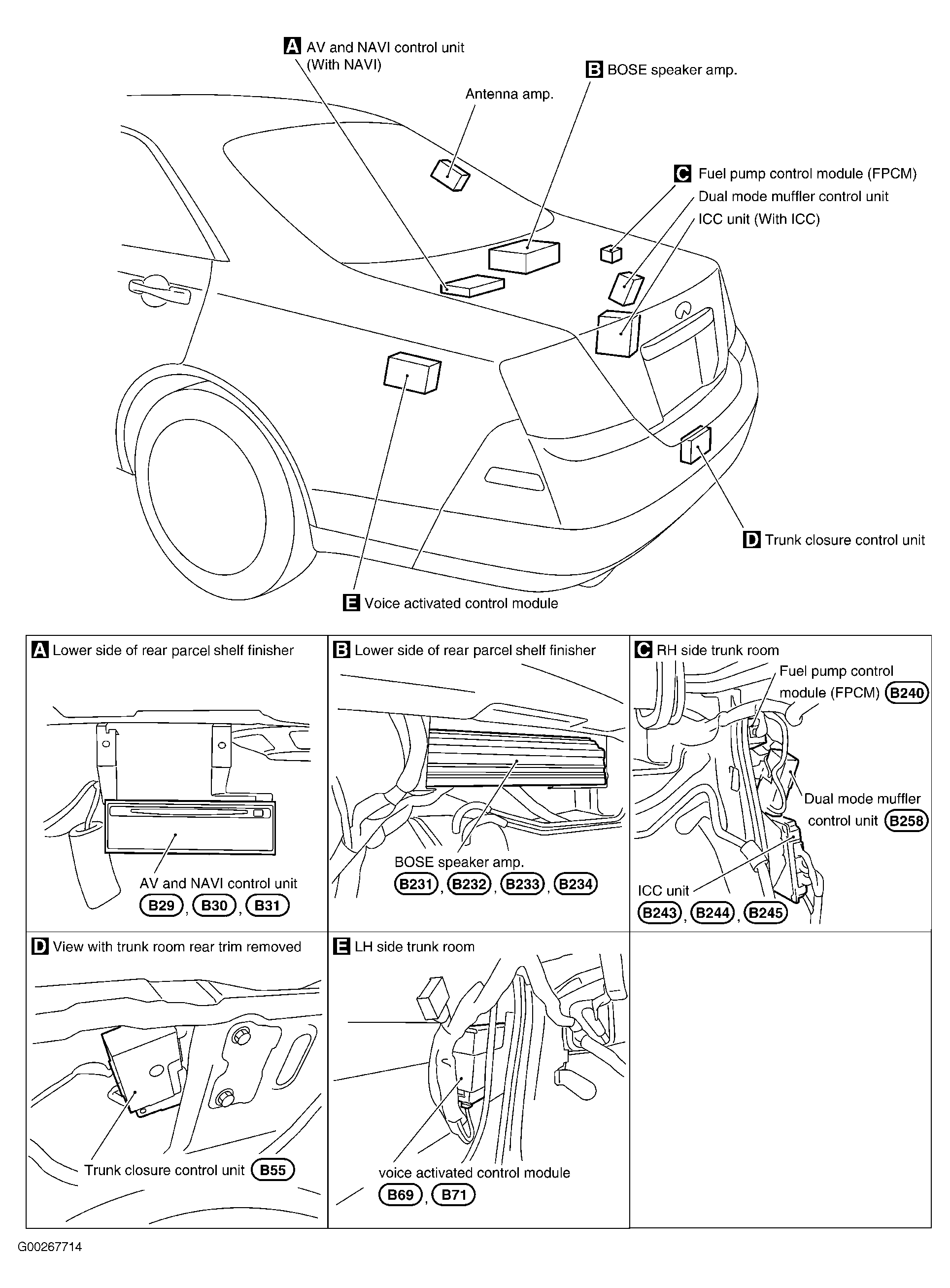

| AV & NAVI Control Unit | At front center of luggage compartment. See Figure . |

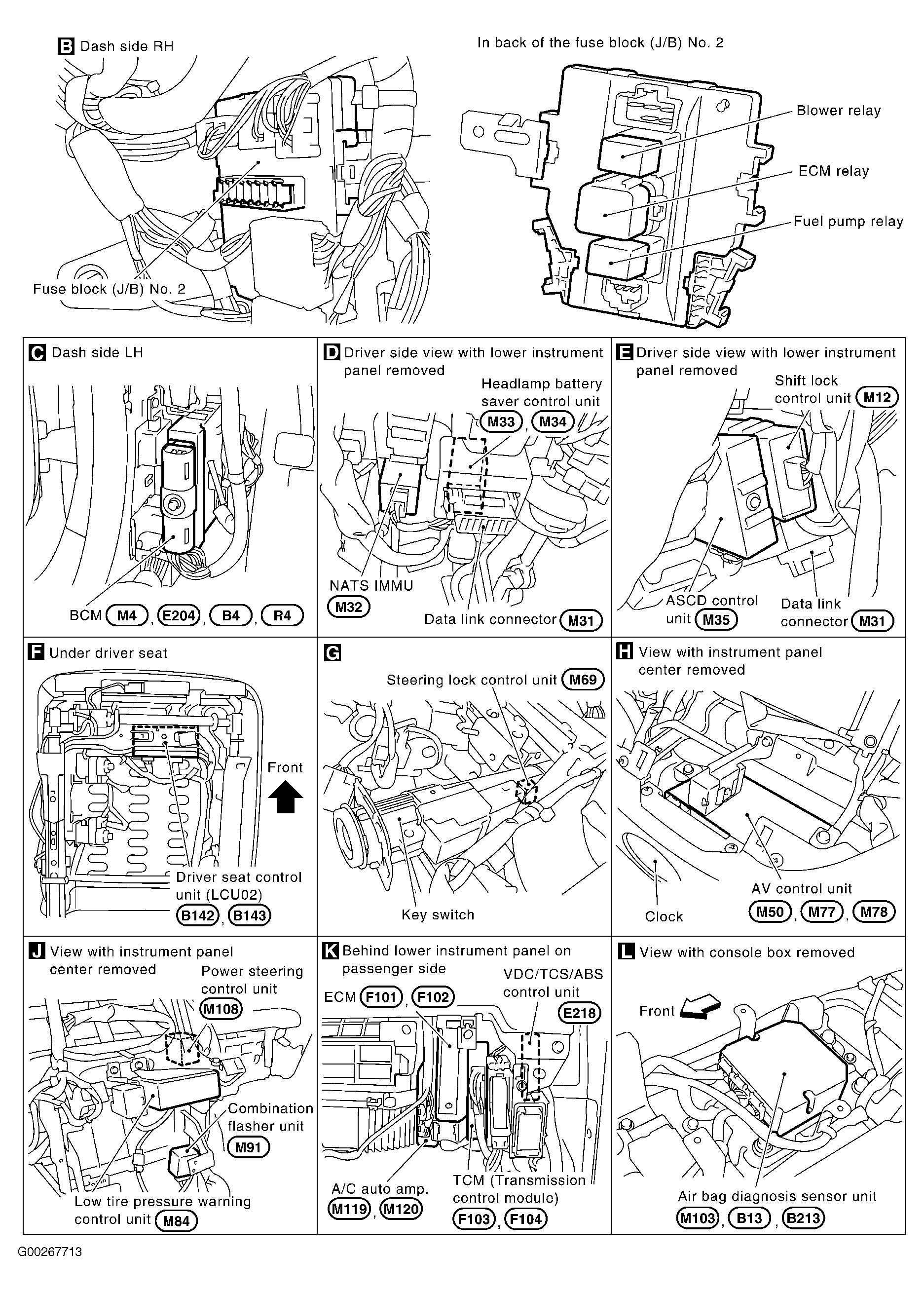

| BCM | Behind left kick panel. See Figure . |

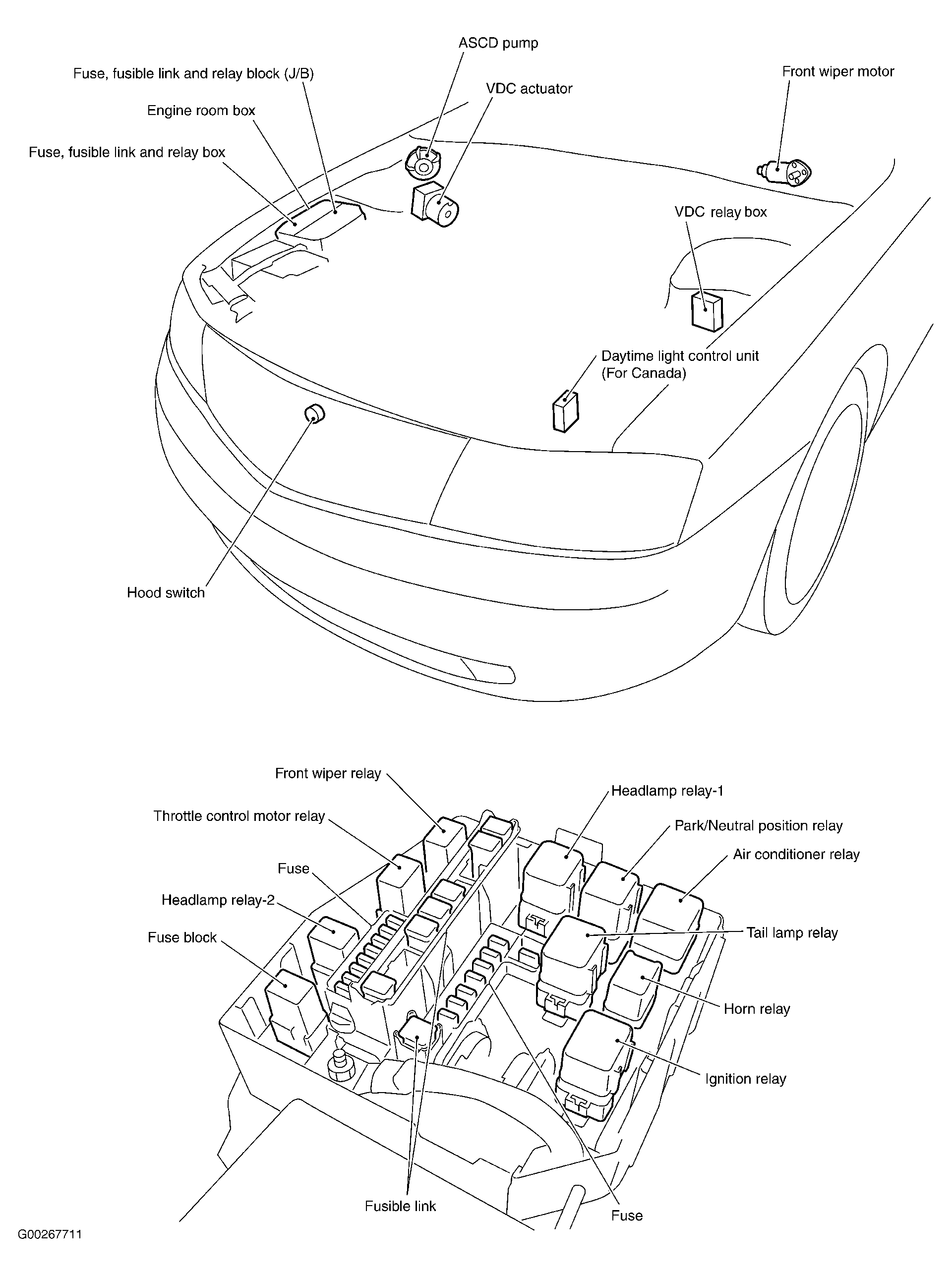

| Daytime Light Control Unit (For Canada) | At left front corner of engine compartment. See Figure . |

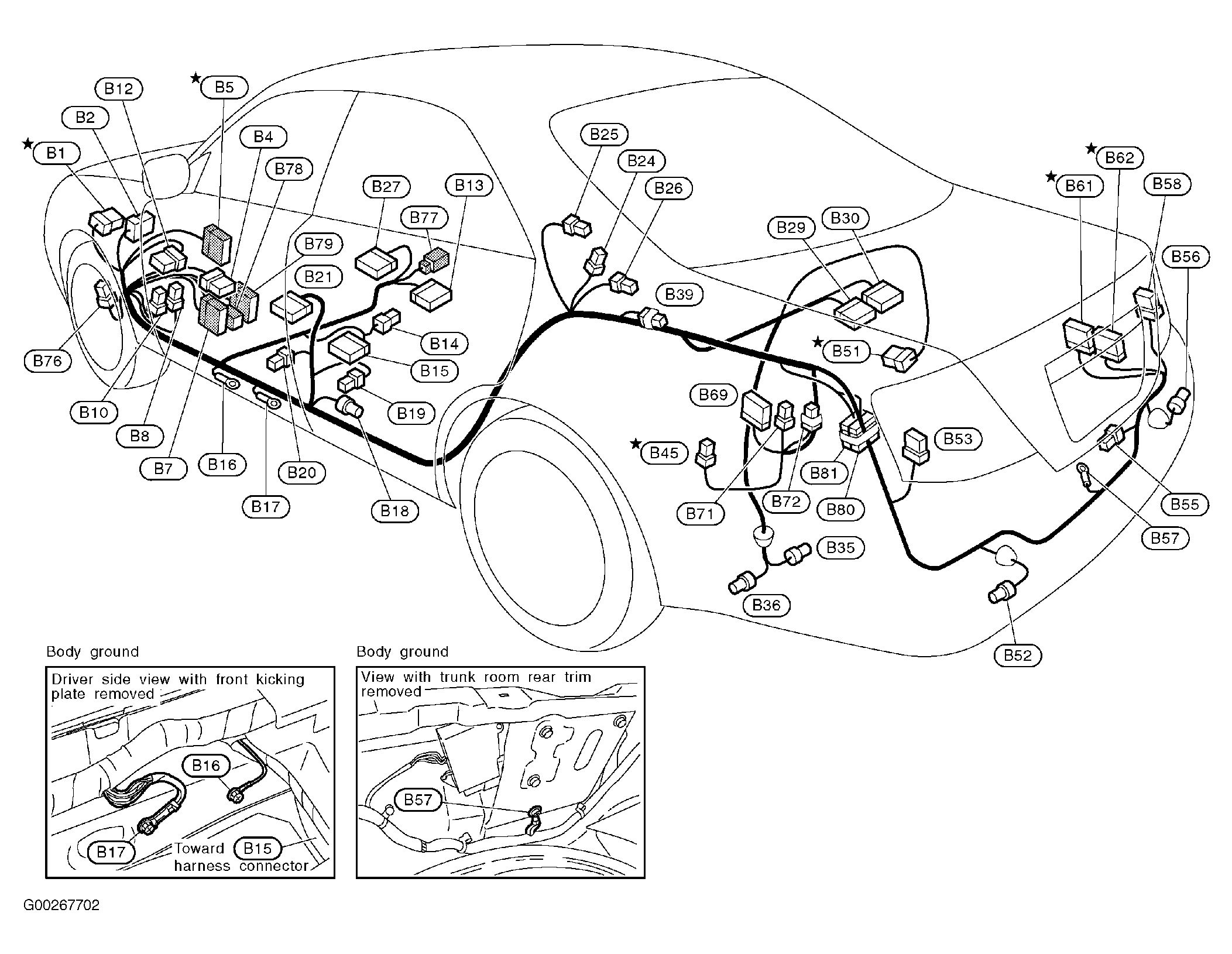

| Driver's Seat Control Unit (LCU02) (B142) | Under driver's seat. See Figure . |
| Dual Mode Muffler Control Unit | At right side of luggage compartment. See Figure . |
| ECM | Behind glove box. See Figure . |
| Front Left Side Air Bag Module (B14) | Under left front seat. See Figure . |
| Front Passenger Air Bag Module (M121) | Behind right side of dash. See Figure . |

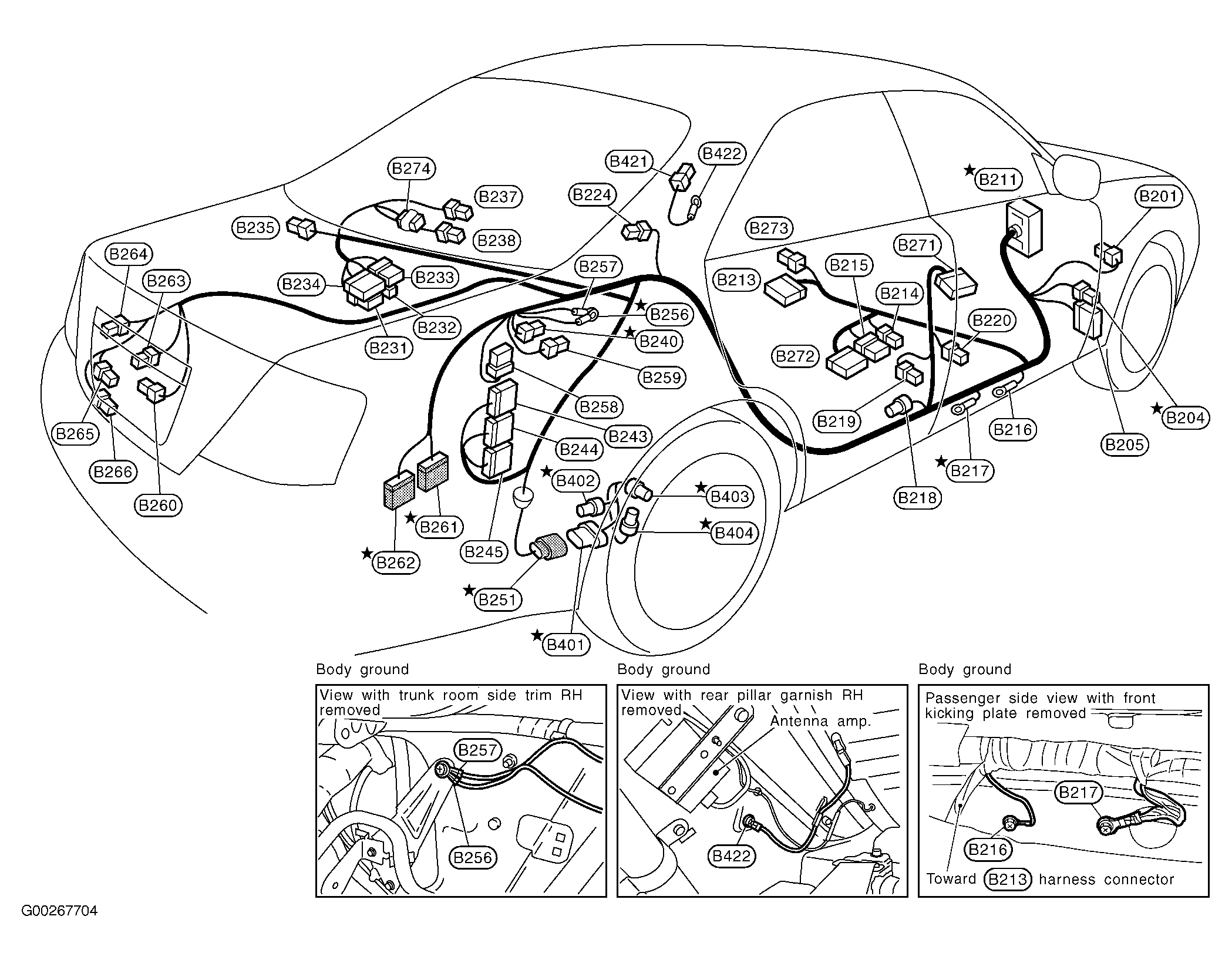

| Front Right Side Air Bag Module (B214) | Under right front seat. See Figure . |
| Fuel Pump Control Module (FPCM) | On right side of luggage compartment. See Figure . |
| Headlamp Battery Saver Control Unit | Behind left side of dash. See Figure . |
| ICC Unit | On right side of luggage compartment. See Figure . |
| Left Side Curtain Air Bag Module (B24) | At base of left "C" pillar. See Figure . |

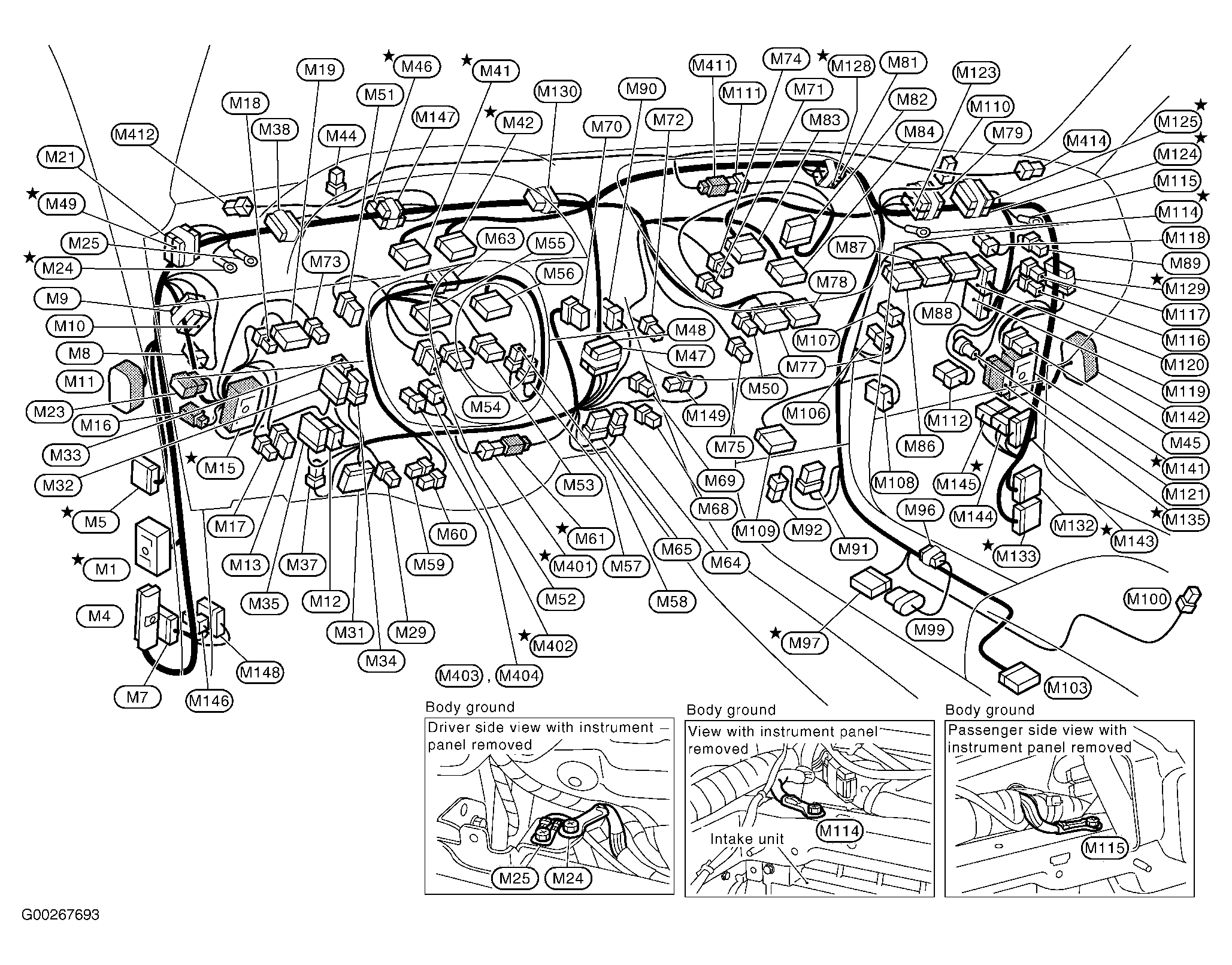

| Low Tire Pressure Warning Control Unit (M84) | Behind center of dash. See Figure . |
| NATS IMMU | Behind dash, left of steering column. See Figure . |
| Power Steering Control Unit | Behind right side of dash. See Figure . |
| Right Side Curtain Air Bag Module (B224) | At base of right "C" pillar. See Figure . |
| Shift Lock Control Unit | Behind left side of dash. See Figure . |
| Steering Lock Control Unit | Behind center of dash. See Figure . |
| TCM (Transmission Control Module) | Behind glove box. See Figure . |
| Trunk Closure Control Unit | At rear center of luggage compartment. See Figure . |
| VDC/TCS/ABS Control Unit | Behind right kick panel. See Figure . |
| Voice Activated Control Module | Left rear of luggage compartment. See Figure . |
