System Drawing

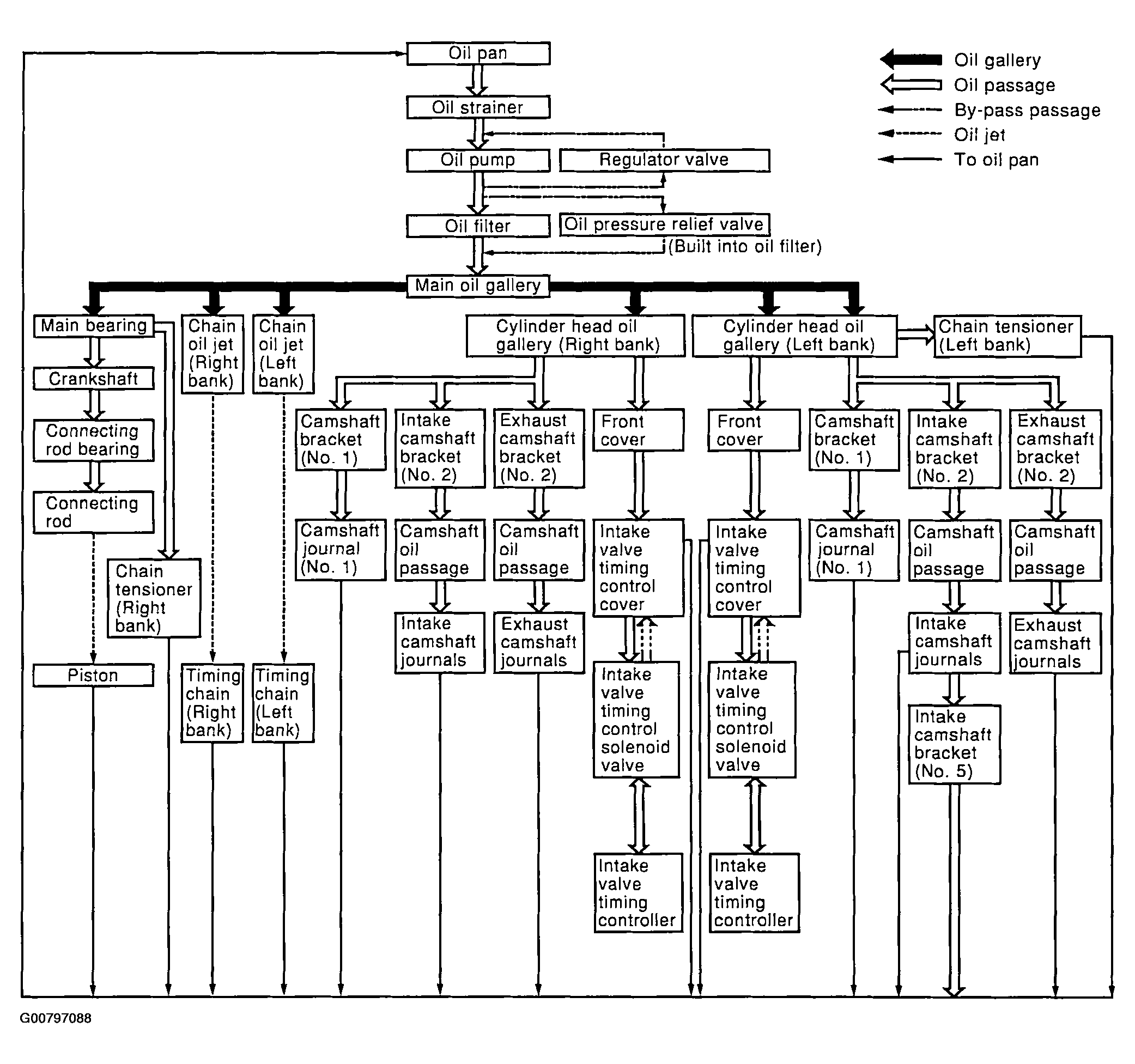

Fig 1: Circulating Oil Through Lubrication System
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
