Disassembly And Assembly: Assembly

Installation is in the reverse order of removal.

• Install inner rotor and outer rotor with the punched marks on the oil pump cover side.

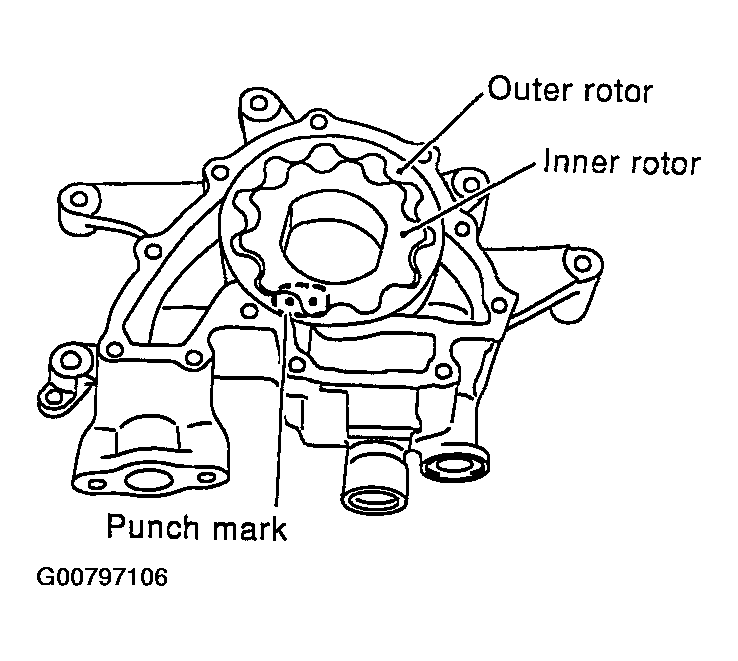

  Fig 1: Installing Inner & Outer Rotor With Punched Marks On Cover Side

  Courtesy of NISSAN MOTOR CO., U.S.A.
