Removal And Installation: Removal

  1. Remove engine cover. .
  2. Loosen lock nut, and remove accelerator wire from throttle drum.
  3. Remove accelerator wire from accelerator pedal.
  4. Remove accelerator wire bracket bolt and nut, and pull accelerator wire into vehicle interior.
  5. Remove accelerator pedal bracket nuts, then remove accelerator pedal and bracket assembly.

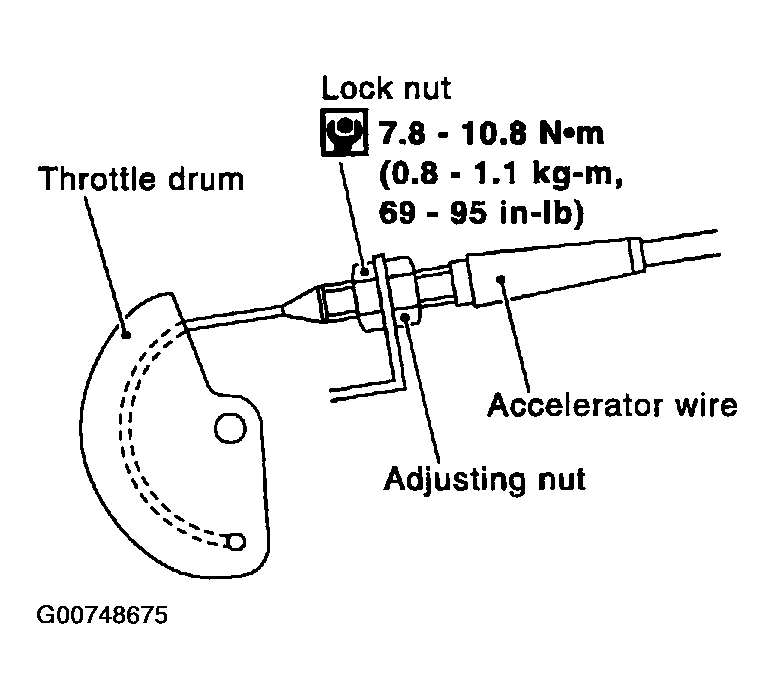

    Fig 1: Removing & Installing Accelerator Wire From Throttle Drum
    G00748675Courtesy of NISSAN MOTOR CO., U.S.A.
