Without CONSULT-II

  1. Remove fuel pump fuse located in fuse box.

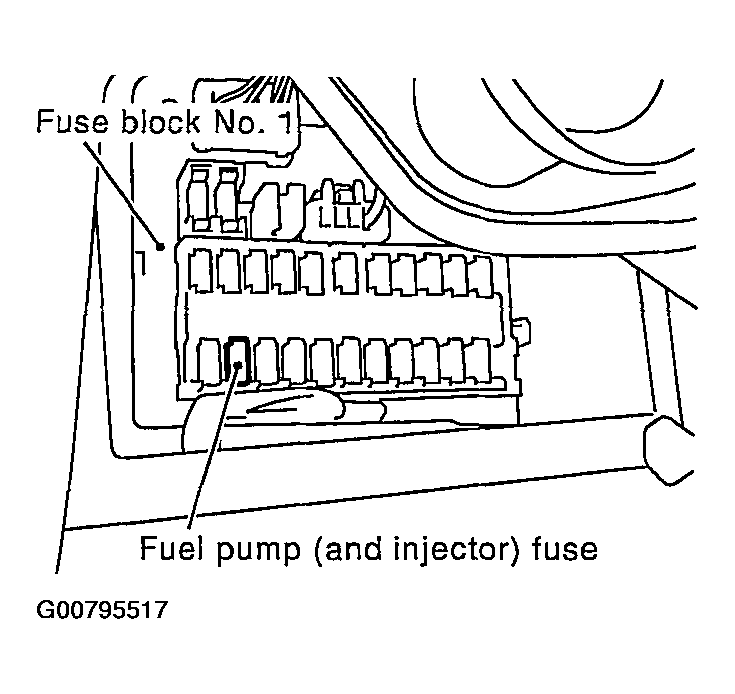

    Fig 1: Removing Fuel Pump Fuse From Fuse Block No. 1
    G00795517Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Start engine.
  3. After engine stalls, crank it two or three times to release all fuel pressure.
  4. Turn ignition switch OFF.
  5. Reinstall fuel pump fuse after servicing fuel system.
