With CONSULT-II
- Perform ACCELERATOR PEDAL RELEASED POSITION LEARNING .
- Perform THROTTLE VALVE CLOSED POSITION LEARNING .
- Start engine and warm it up to normal operating temperature.
- Check that all items listed under the topic PREPARATION (previously mentioned) are in good order.
- Select "IDLE AIR VOL LEARN" in "WORK SUPPORT" mode.
- Touch "START" and wait 20 seconds.
- Make sure that "CMPLT" is displayed on CONSULT-II screen. If "CMPLT" is not displayed, Idle Air Volume Learning will not be carried out successfully. In this case, find the cause of the incident by referring to the DIAGNOSTIC PROCEDURE below.

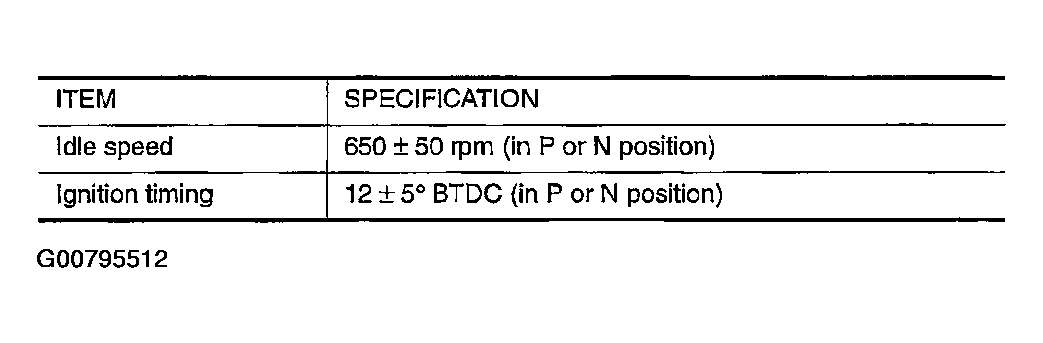

- Rev up the engine two or three times and make sure that idle speed and ignition timing are within the specifications.
Courtesy of NISSAN MOTOR CO., U.S.A.
