Method B

  1. Remove No. 1 ignition coil.
  2. Connect No. 1 ignition coil and No. 1 spark plug with suitable high-tension wire as shown, and attach timing light clamp to this wire.

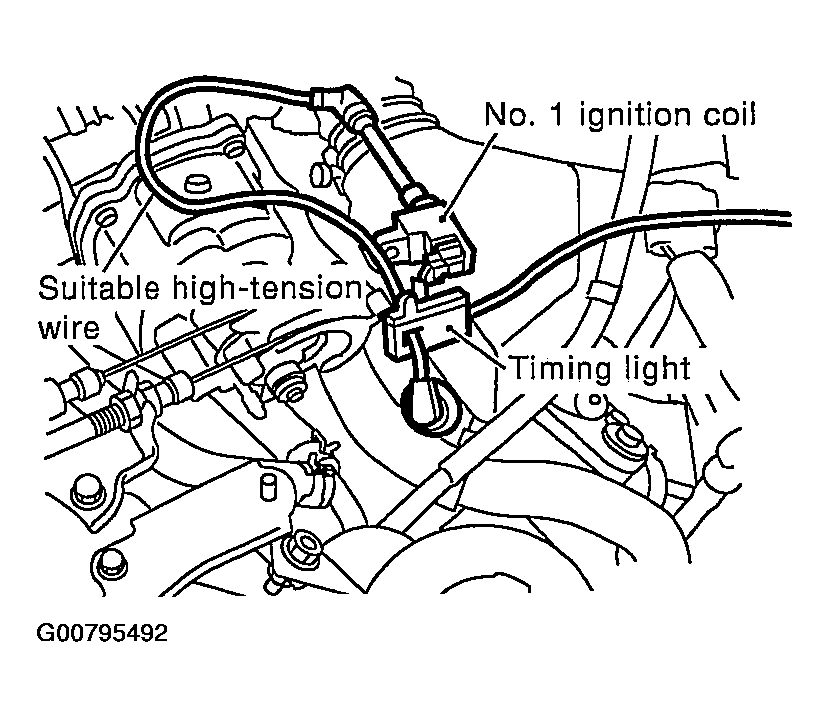

    Fig 1: Checking Ignition Timing
    G00795492Courtesy of NISSAN MOTOR CO., U.S.A.

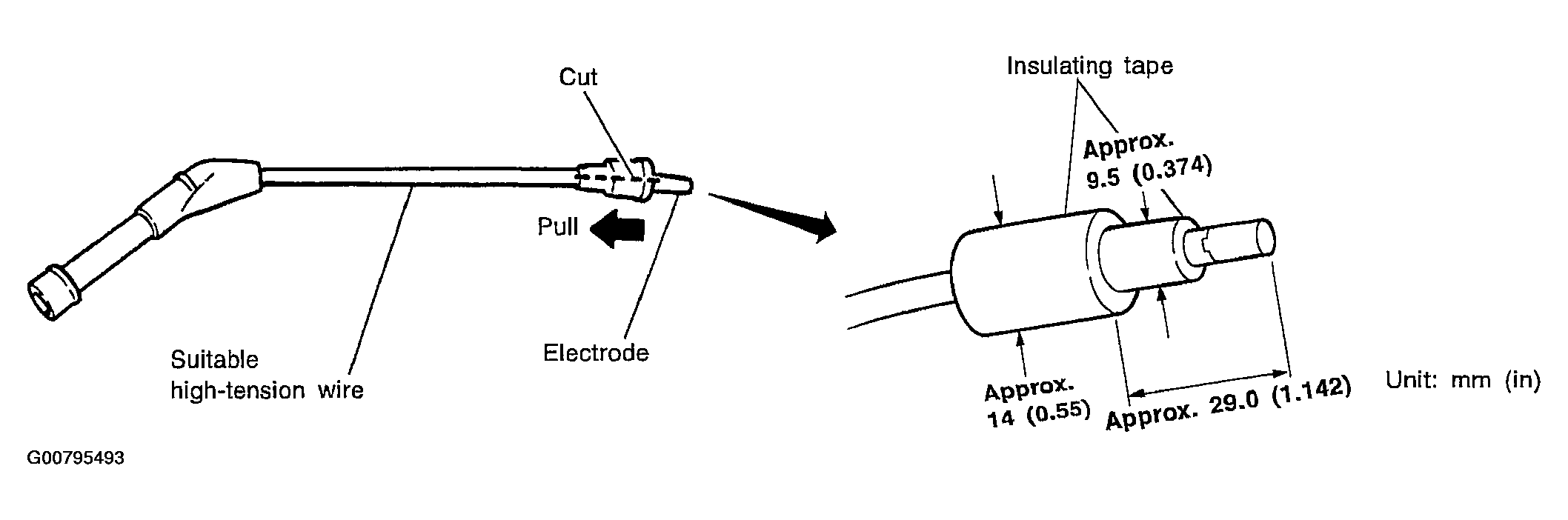

    Fig 2: Identifying Components Used To Check Ignition Timing
    G00795493Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

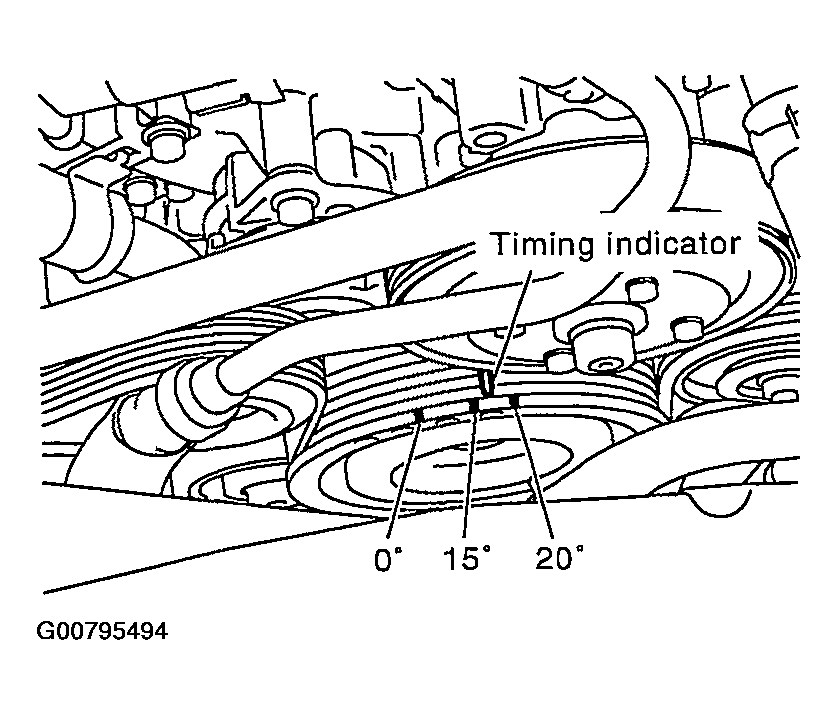

    Fig 3: Identifying Timing Indicators
    G00795494Courtesy of NISSAN MOTOR CO., U.S.A.
