With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.
  3. Maintain the following conditions for at least 10 consecutive seconds.

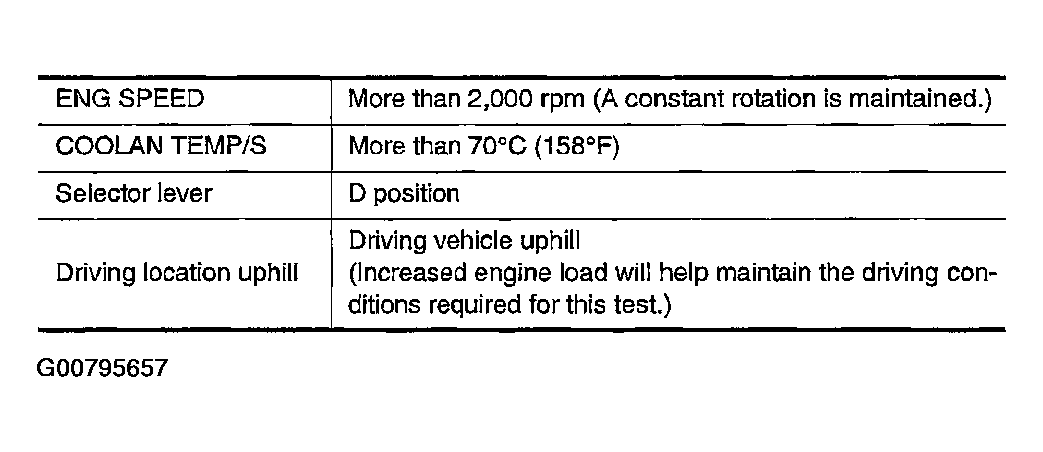

    Fig 1: Maintaining Conditions For 10 Consecutive Seconds
    G00795657Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Maintain the following conditions for at least 20 consecutive seconds.

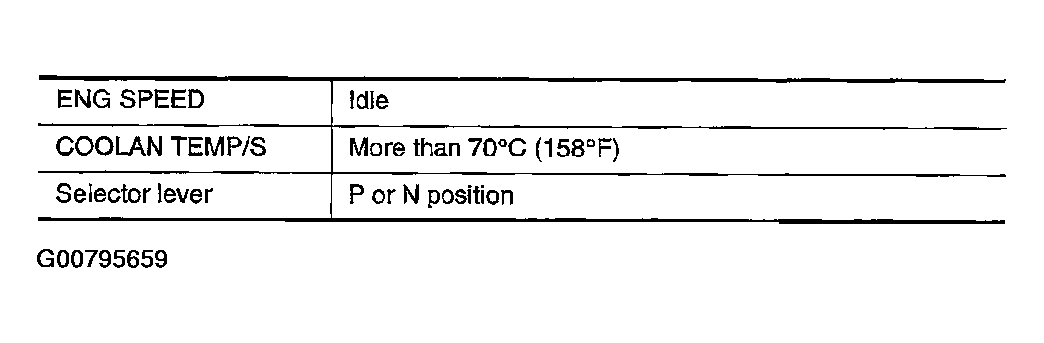

    Fig 2: Maintaining Conditions For 20 Consecutive Seconds
    G00795659Courtesy of NISSAN MOTOR CO., U.S.A.
  5. If the 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE
