Diagnostic Procedure

  1. Inspection Start

    Which malfunction (P0102 or P0103) is duplicated?

    1. P0102 or P0103
    2. P0102: GO TO 2.
    3. P0103: GO TO  3.

  2. Check the following for connection.Check Intake System

    • Air duct
    • Vacuum hoses
    • Intake air passage between air duct and intake manifold
    1. OK or NG
    2. OK: GO TO 3.
    3. NG: Reconnect the parts.
  3. Check Ground Connections
    1. Turn ignition switch OFF.
    2. Loosen and retighten two ground screws. Refer to GROUND INSPECTION .

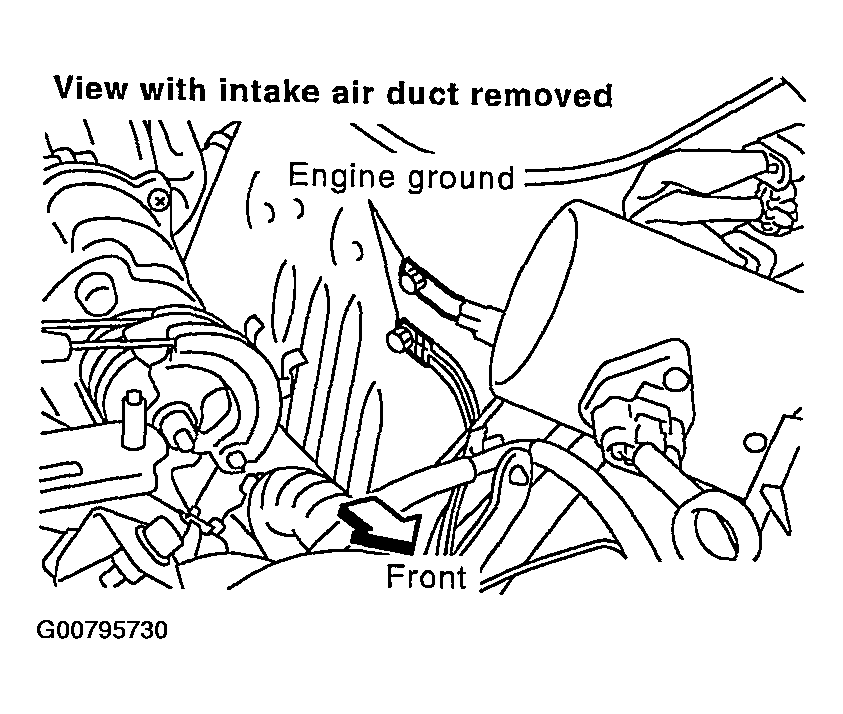

      3. Fig 1: Identifying Engine Ground Wires
      G00795730Courtesy of NISSAN MOTOR CO., U.S.A.
    1. OK or NG
    2. OK: GO TO 4.
    3. NG: Repair or replace ground connections.
  4. Check MAF Sensor Power Supply Circuit
    1. Disconnect mass air flow (MAF) sensor harness connector.

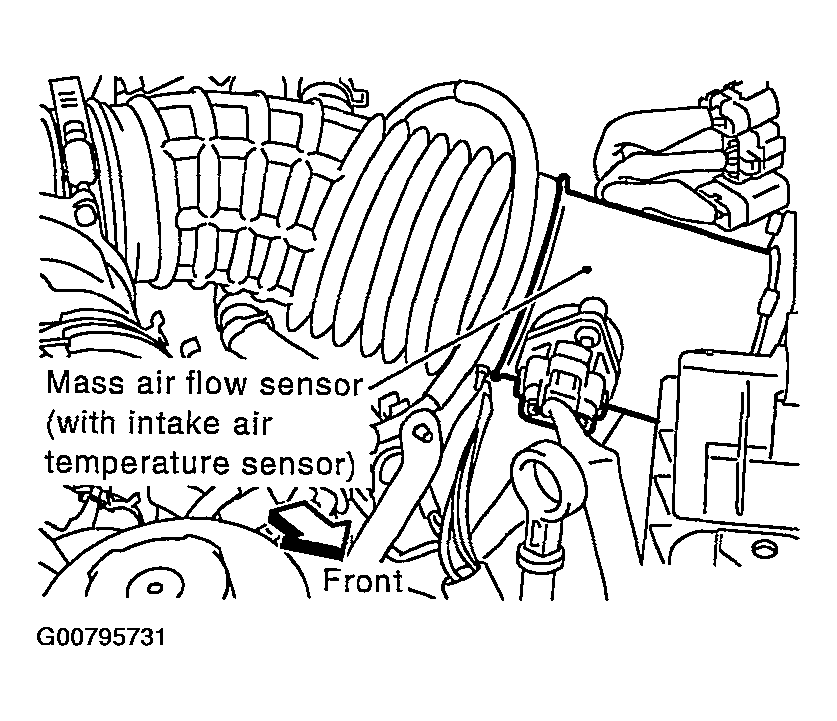

      Fig 2: Identifying MAF & IAT Sensor Harness Connector
      G00795731Courtesy of NISSAN MOTOR CO., U.S.A.
    2. Turn ignition switch ON.
    3. Check voltage between MAF sensor terminals 2, 4 and ground with CONSULT-II or tester.

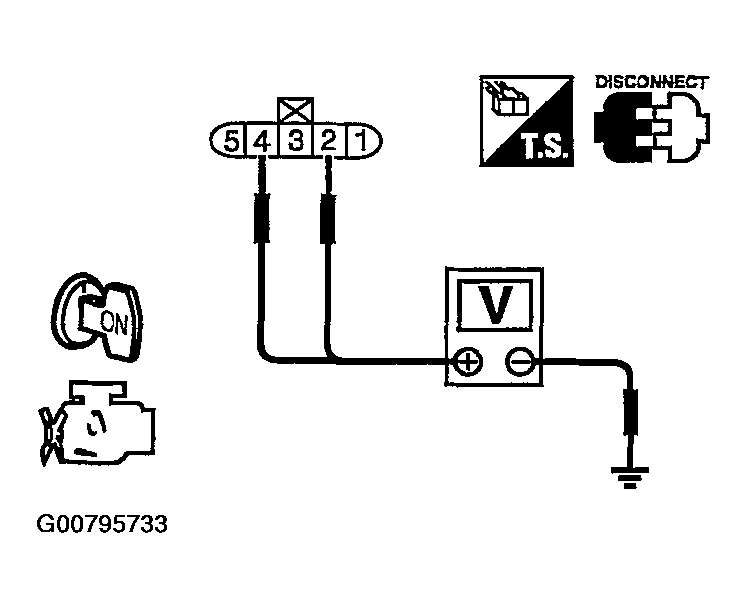

      Fig 3: Checking Voltage Between MAF Sensor Terminals & Ground
      G00795733Courtesy of NISSAN MOTOR CO., U.S.A.

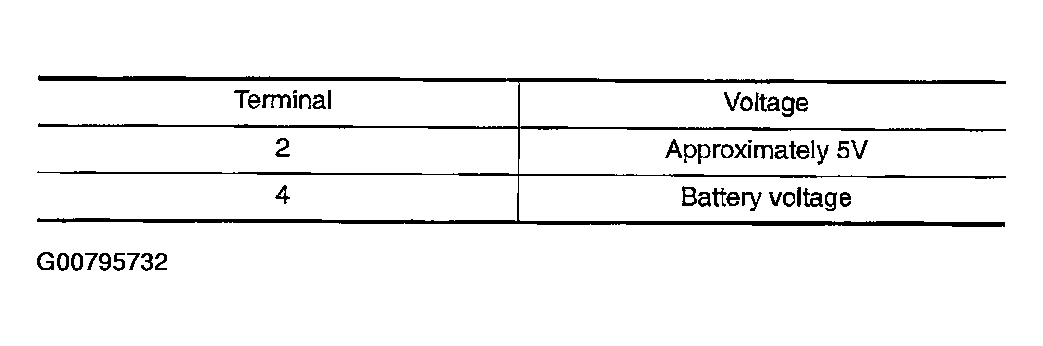

      Fig 4: Inspecting Conditions Chart
      G00795732Courtesy of NISSAN MOTOR CO., U.S.A.
    1. OK or NG
    2. OK: GO TO  6.
    3. NG: GO TO 5.
  5. Detect Malfunctioning Part

    Check the following.

    • Harness connectors M135, F105
    • Harness for open or short between mass air flow sensor and ECM relay
    • Harness for open or short between mass air flow sensor and ECM
    1. : Repair open circuit or short to ground or short to power in harness or connectors.
  6. Check MAF Sensor Ground Circuit For Open And Short
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between MAF sensor terminal 3 and ECM terminal 109. Refer to WIRING DIAGRAM .

      Continuity should exist.

    4. Also check harness for short to ground and short to power.
    1. OK or NG
    2. OK: GO TO 7.
    3. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  7. Check MAF Sensor Input Signal Circuit For Open And Short
    1. Check harness continuity between MAF sensor terminal 1 and ECM terminal 91.

      Refer to WIRING DIAGRAM .

      Continuity should exist.

    2. Also check harness for short to ground and short to power.
    1. OK or NG
    2. OK: GO TO 8.
    3. NG: Repair open circuit or short to ground or short to power in harness or connectors.
  8. Check Mass Air Flow Sensor

    Refer to COMPONENT INSPECTION .

    1. OK or NG
    2. OK: GO TO 9.
    3. NG: Replace mass air flow sensor.
  9. Check Intermittent Incident

    Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .

    1. : INSPECTION END
