Diagnostic Procedure

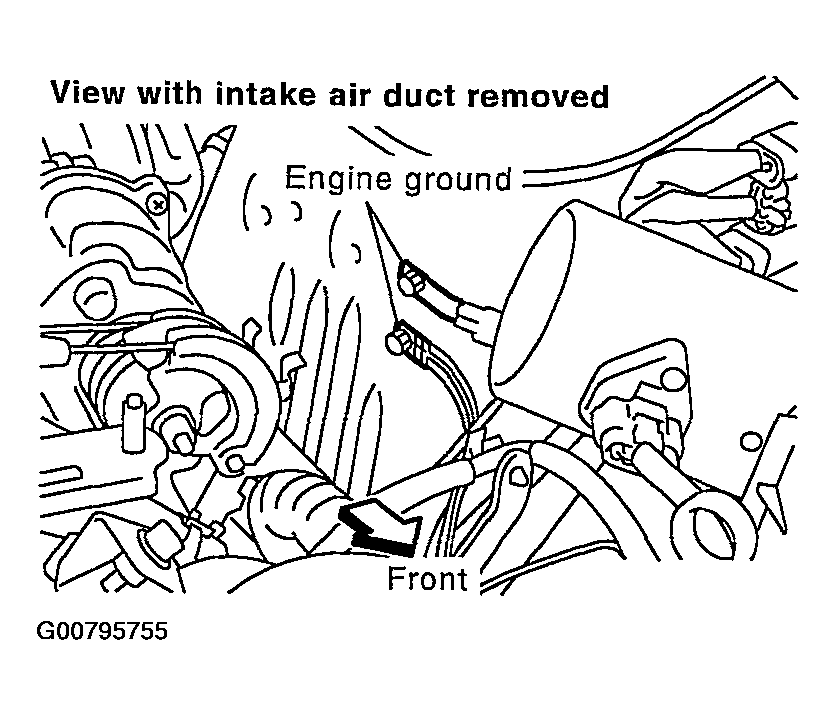

- Check Ground Connections
- Turn ignition switch OFF.
- Loosen and retighten two ground screws.
Refer to GROUND INSPECTION .
- OK or NG
- OK: GO TO 2.
- NG: Repair or replace ground connections.
- Check ECT Sensor Power Supply Circuit

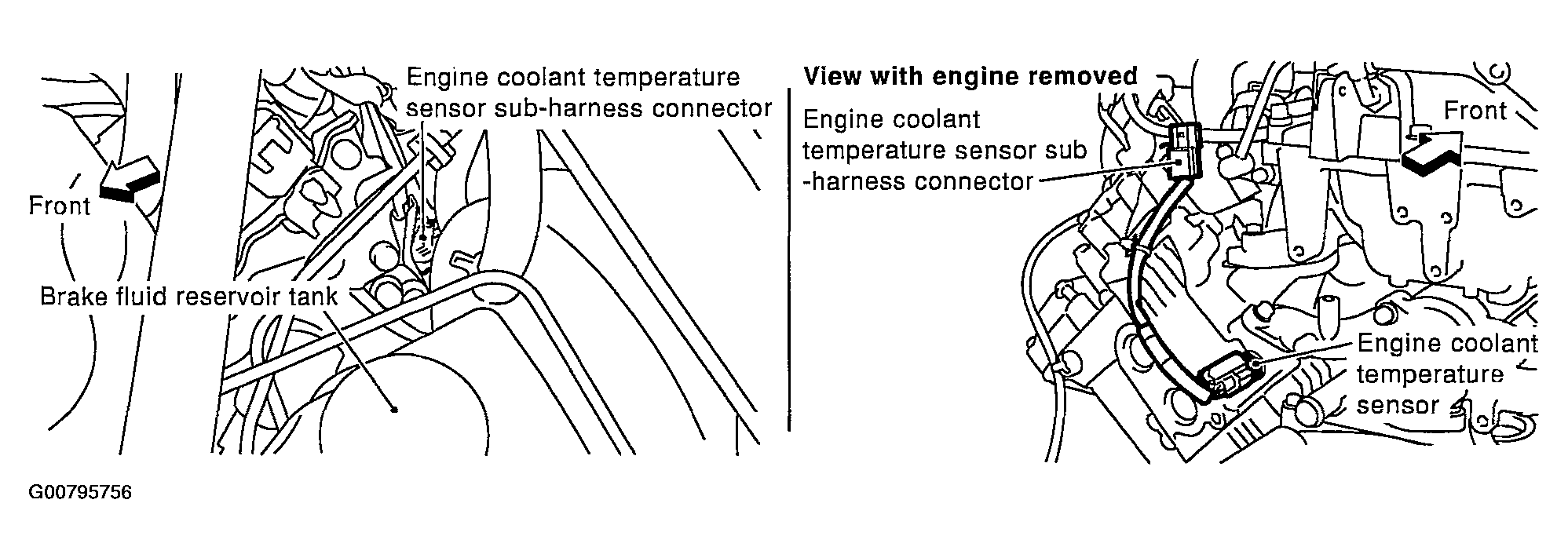

- Disconnect engine coolant temperature (ECT) sensor harness connector.
- Turn ignition switch ON.
- Check voltage between ECT sensor terminal 1 and ground with CONSULT-II or tester.
- Voltage: Approximately 5V
- OK or NG
- OK: GO TO 4.
- NG: GO TO 3.
- Detect Malfunctioning Part
Check the following.
- Harness connectors F261, F24
- Harness for open and short between ECT sensor and ECM
- : Repair open circuit or short to ground or short to power in harness or connectors.
- Check ECT Sensor Ground Circuit For Open And Short
- Turn ignition switch OFF.
- Disconnect ECM harness connector.
- Check harness continuity between ECT sensor terminal 2 and ECM terminal 89.
For wiring diagram, refer to WIRING DIAGRAM .
Continuity should exist.
- Also check harness for short to ground and short to power.
- OK or NG
- OK: GO TO 6.
- NG: GO TO 5.
- Detect Malfunctioning Part
Check the following.
- Harness connectors F261, F24
- Joint connector-30
- Harness for open and short between ECT sensor and ECM
- : Repair open circuit or short to ground or short to power in harness or connectors.
- Check Engine Coolant Temperature Sensor
Refer to COMPONENT INSPECTION .
- OK or NG
- OK: GO TO 7.
- NG: Replace engine coolant temperature sensor.
- Check Intermittent Incident
Refer to TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT .
- : INSPECTION END
