DTC P0117, P0118: ECT Sensor
>>
Wiring Diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0117, P0118: ECT Sensor: Wiring Diagram

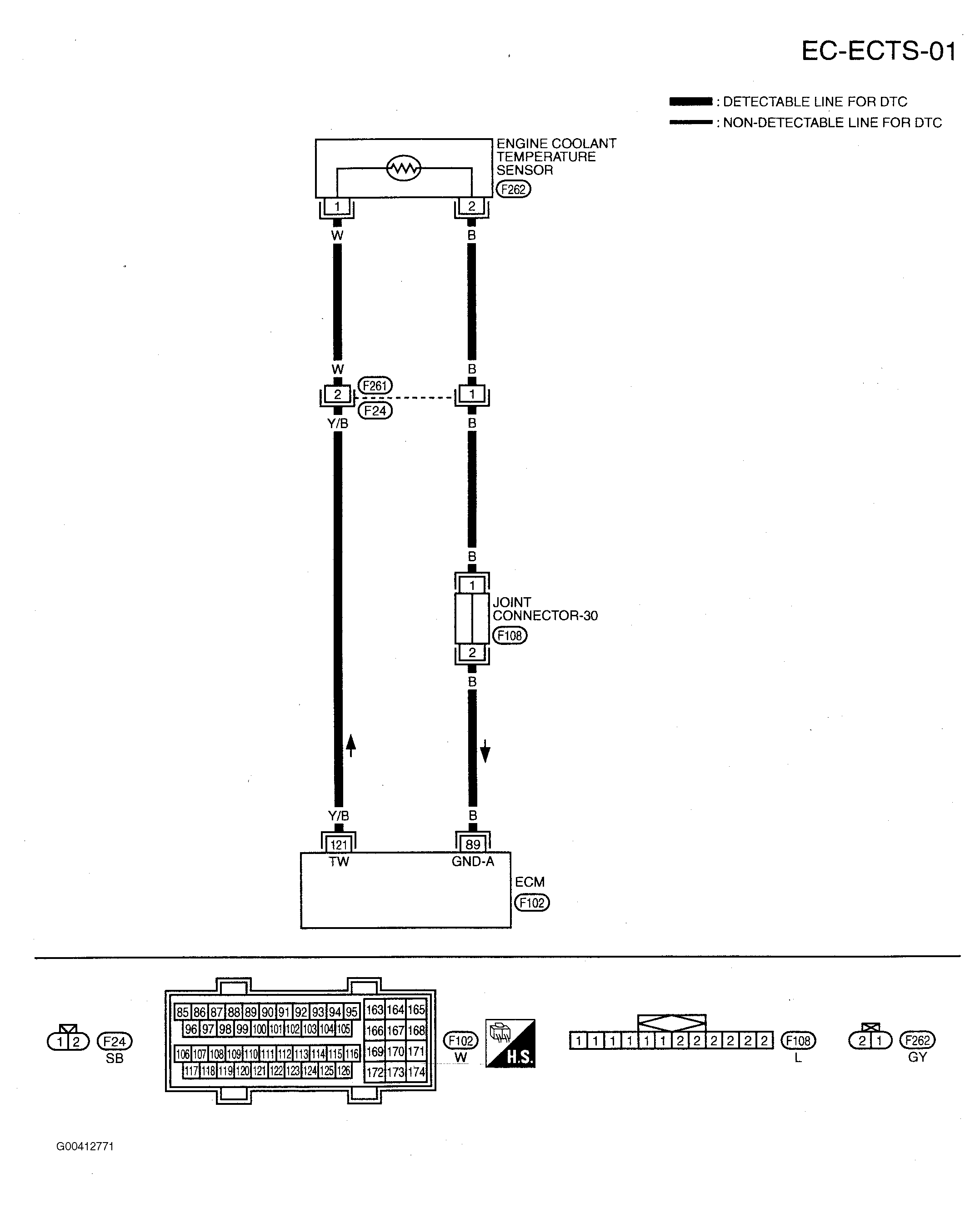

Fig 1: Circuit Diagram - ECT Sensor - EC-ECTS-01
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
