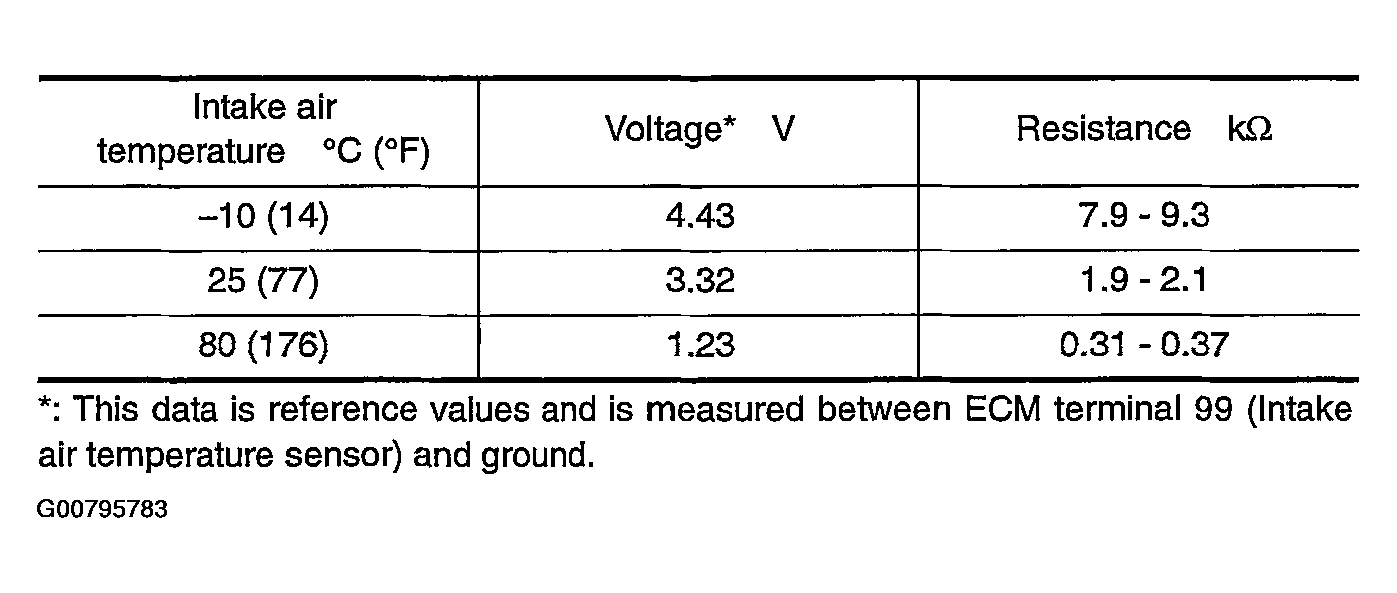

Fig 1: Identifying Intake Air Temp Reference Data Information
Courtesy of NISSAN MOTOR CO., U.S.A.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
