Intake Air Temperature Sensor

Check resistance between intake air temperature sensor terminals 3 and 5 under the following conditions.

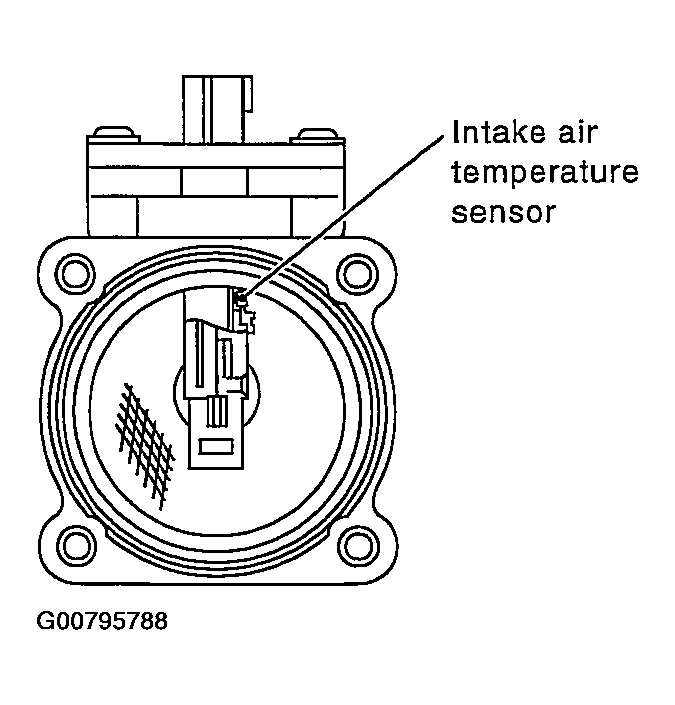

Fig 1: Identifying Intake Air Temperature Sensor
Courtesy of NISSAN MOTOR CO., U.S.A.

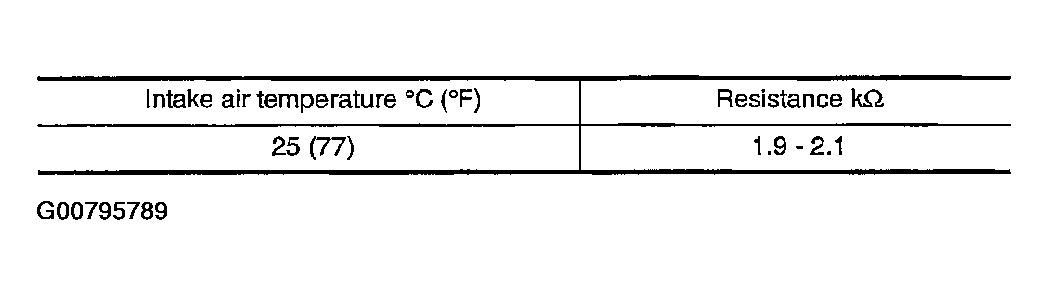

Fig 2: Inspecting Condition Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

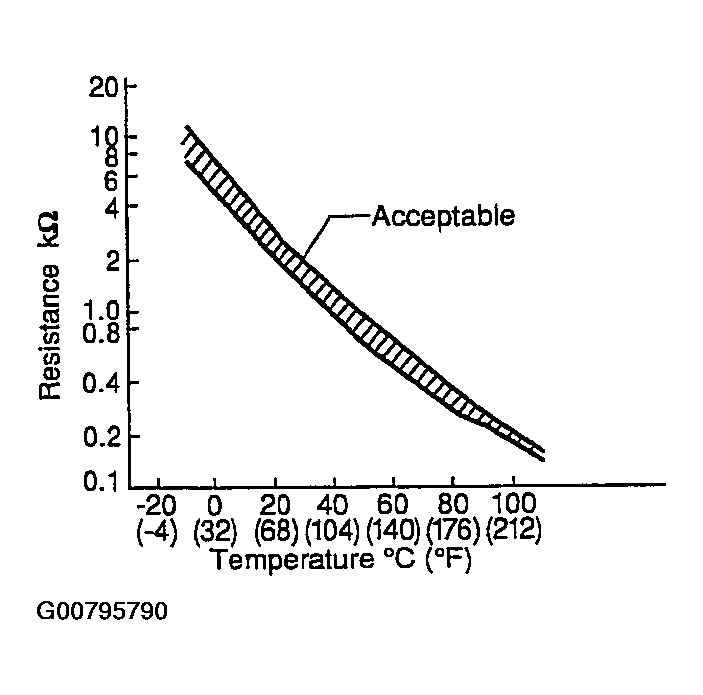

Fig 3: Inspecting Condition Reference Graph
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace mass air flow sensor (with intake air temperature sensor).
