Engine Coolant Temperature Sensor

Check resistance as shown in the figure.

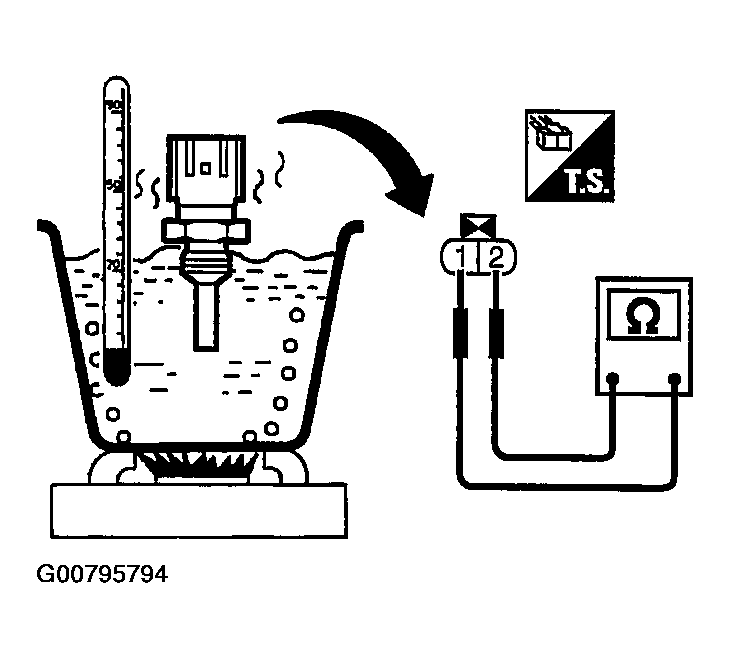

Fig 1: Checking Resistance Of ECT Sensor

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data >

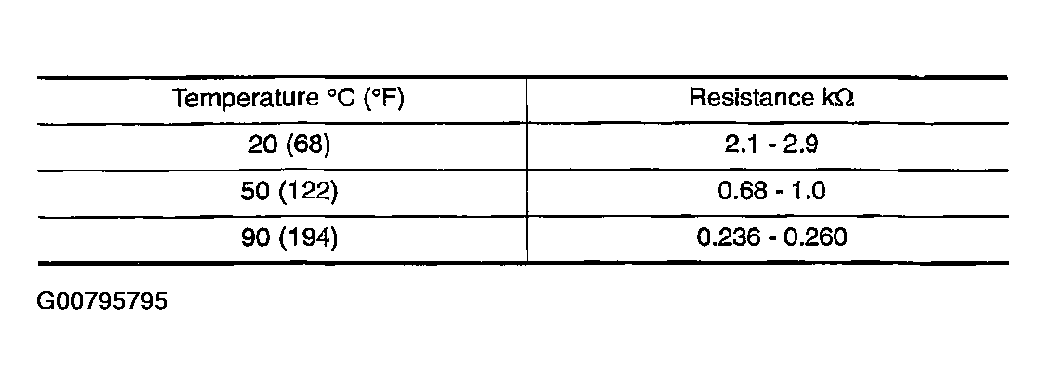

Fig 2: Inspecting Condition Chart

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Inspecting Condition Reference Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace engine coolant temperature sensor.
