With GST

  1. Start engine and warm it up to normal operating temperature.
  2. Set voltmeter probes between ECM terminal 114 [HO2S1 (B1) signal] or 115 [HO2S1 (B2) signal] and ground.
  3. Check the following with engine speed held at 2,000 RPM constant under no load.
    • The voltage does not remain in the range of 0.2 to 0.4V.
  4. If NG, go to DIAGNOSTIC PROCEDURE .

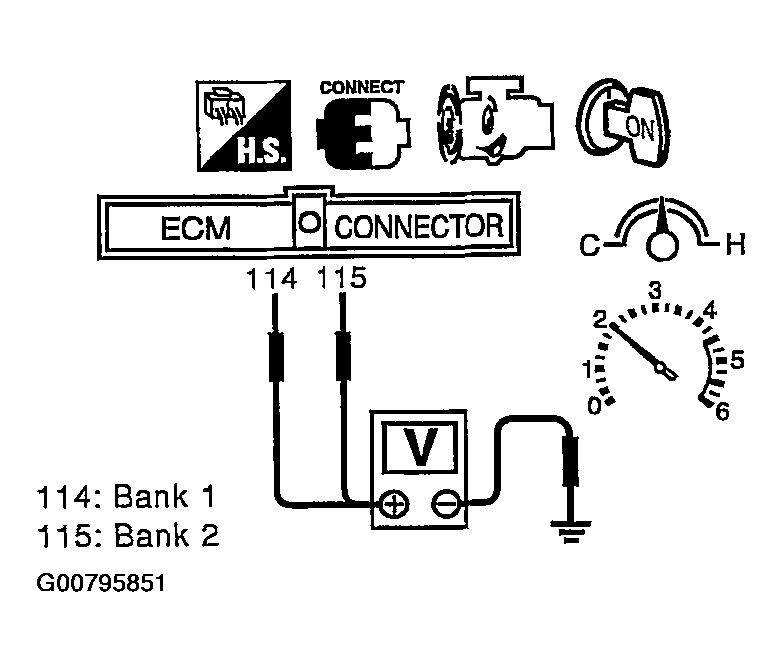

Fig 1: Checking Voltage Between ECM Terminals & Ground
G00795851Courtesy of NISSAN MOTOR CO., U.S.A.
