With CONSULT-II

  1. Start engine.
  2. Perform "POWER BALANCE" in "ACTIVE TEST" mode with CONSULT-II.
  3. Make sure that each circuit produces a momentary engine speed drop.

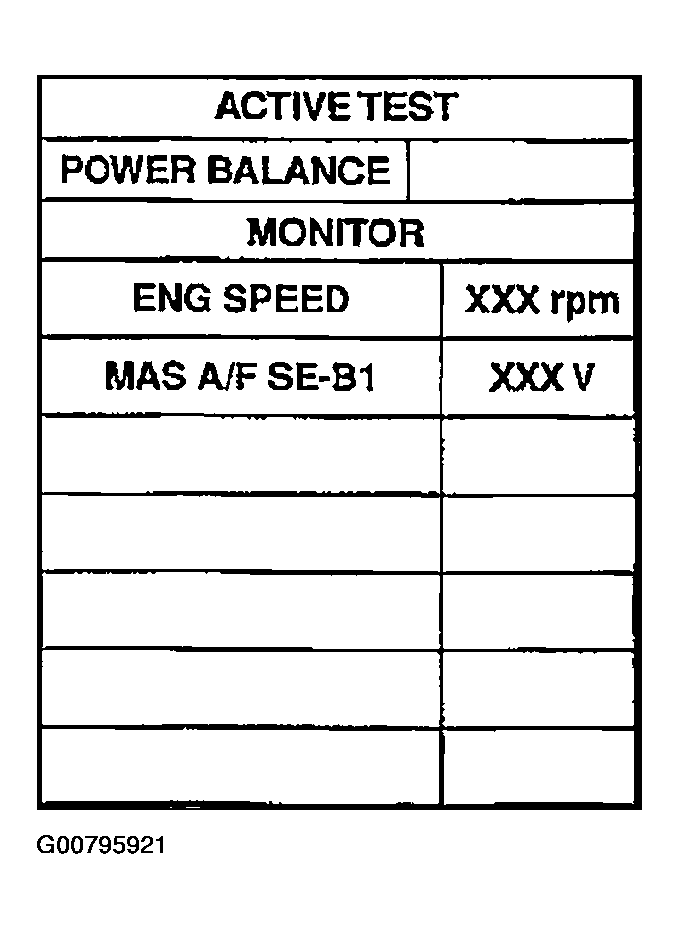

Fig 1: Scan Tool Display - Active Test
G00795921Courtesy of NISSAN MOTOR CO., U.S.A.
