With Consult-II

  1. Turn ignition switch ON.
  2. Select "DATA MONITOR" mode with CONSULT-II.

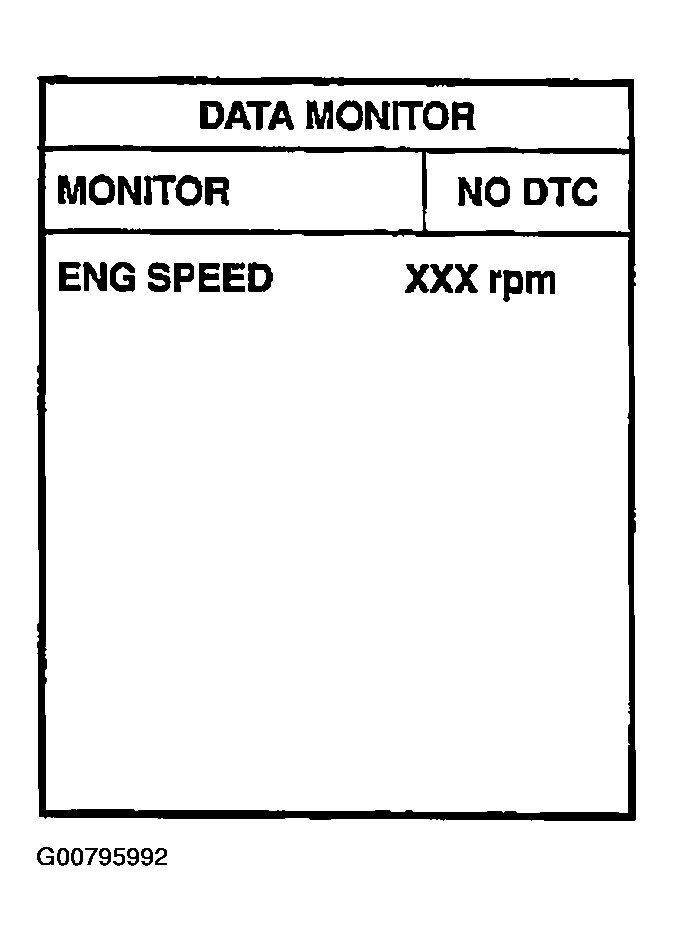

    Fig 1: Scan Tool Display - Data Monitor
    G00795992Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Crank engine for at least 2 seconds and run it for at least 5 seconds at idle speed.
  4. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .

    If 1st trip DTC is not detected, go to next step.

  5. Maintain engine speed at more than 800 RPM for at least 5 seconds.
  6. If 1st trip DTC is detected, go to DIAGNOSTIC PROCEDURE  .
