4. Check Ignition Timing

Check the following items. Refer to BASIC INSPECTION.

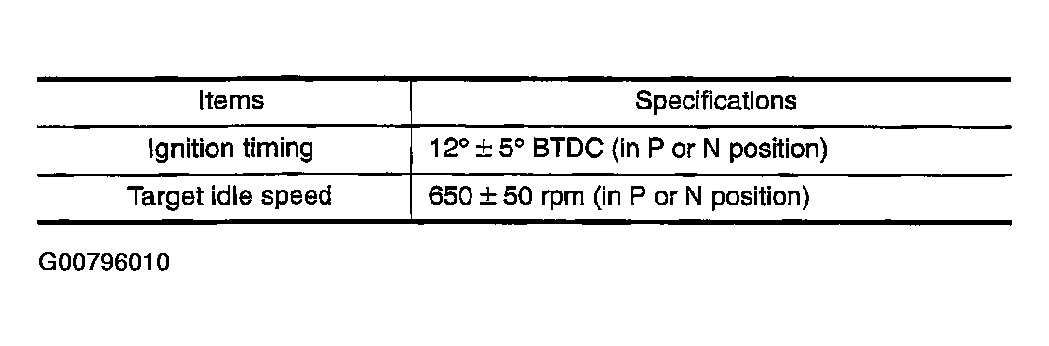

Fig 1: Ignition Timing & Idle Speed Specifications Chart
G00796010Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

  1. OK: GO TO 5.
  2. NG: Follow the BASIC INSPECTION.
