5. Check Injectors

1. Stop engine and then turn ignition switch ON.
2. Check voltage between ECM terminals 5, 6, 7, 13, 14, 15, 16, 17 and ground with CONSULT-II or tester.

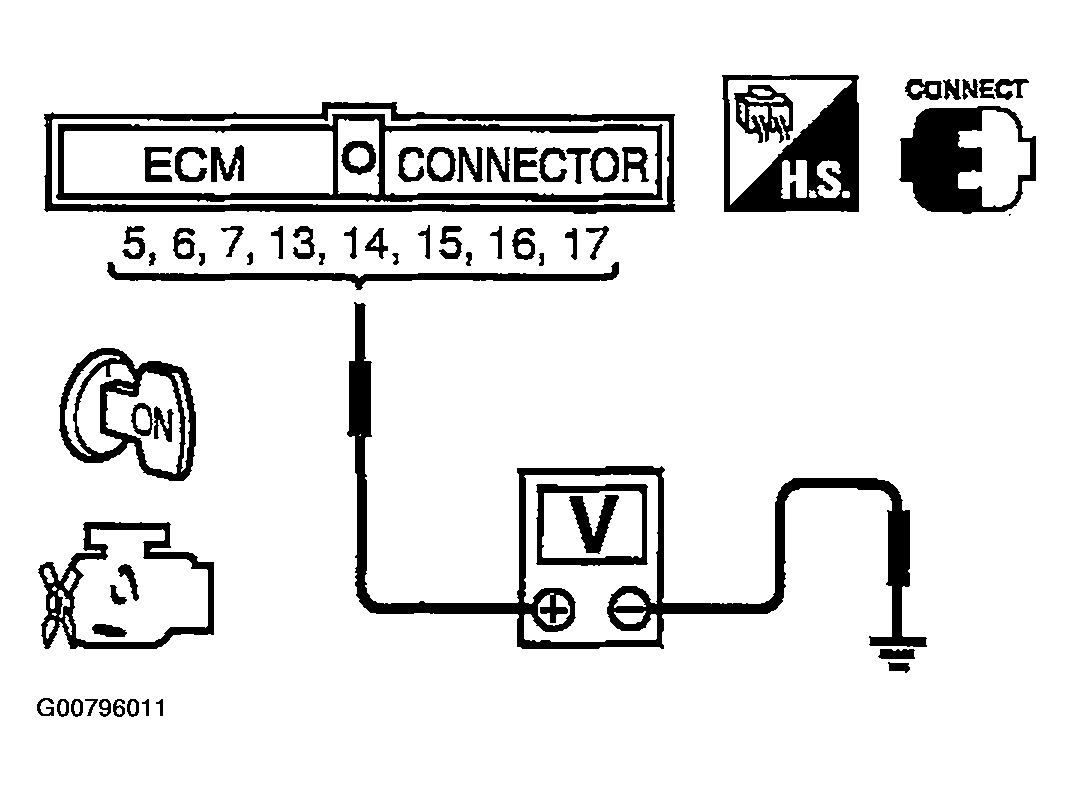

   Fig 1: Checking Voltage Between ECM Terminals & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

3. Refer to WIRING DIAGRAM  for Injectors.

OK or NG

1. OK: GO TO 6.
2. NG: Perform DIAGNOSTIC PROCEDURE  .
