With CONSULT-II

1. Turn ignition switch ON and select "DATA MONITOR" mode with CONSULT-II.

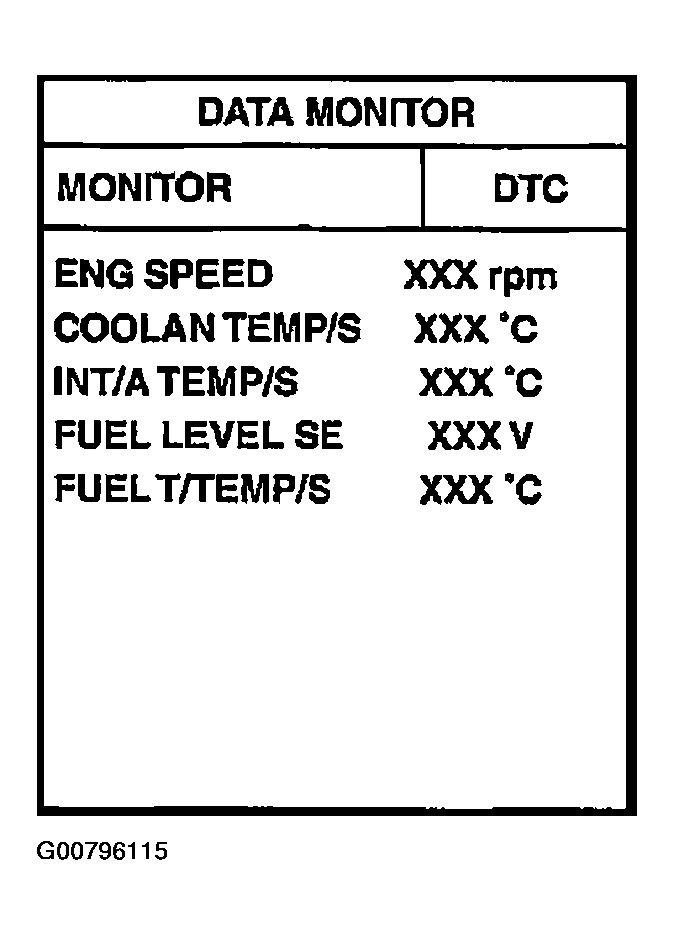

Fig 1: Scan Tool Display - Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

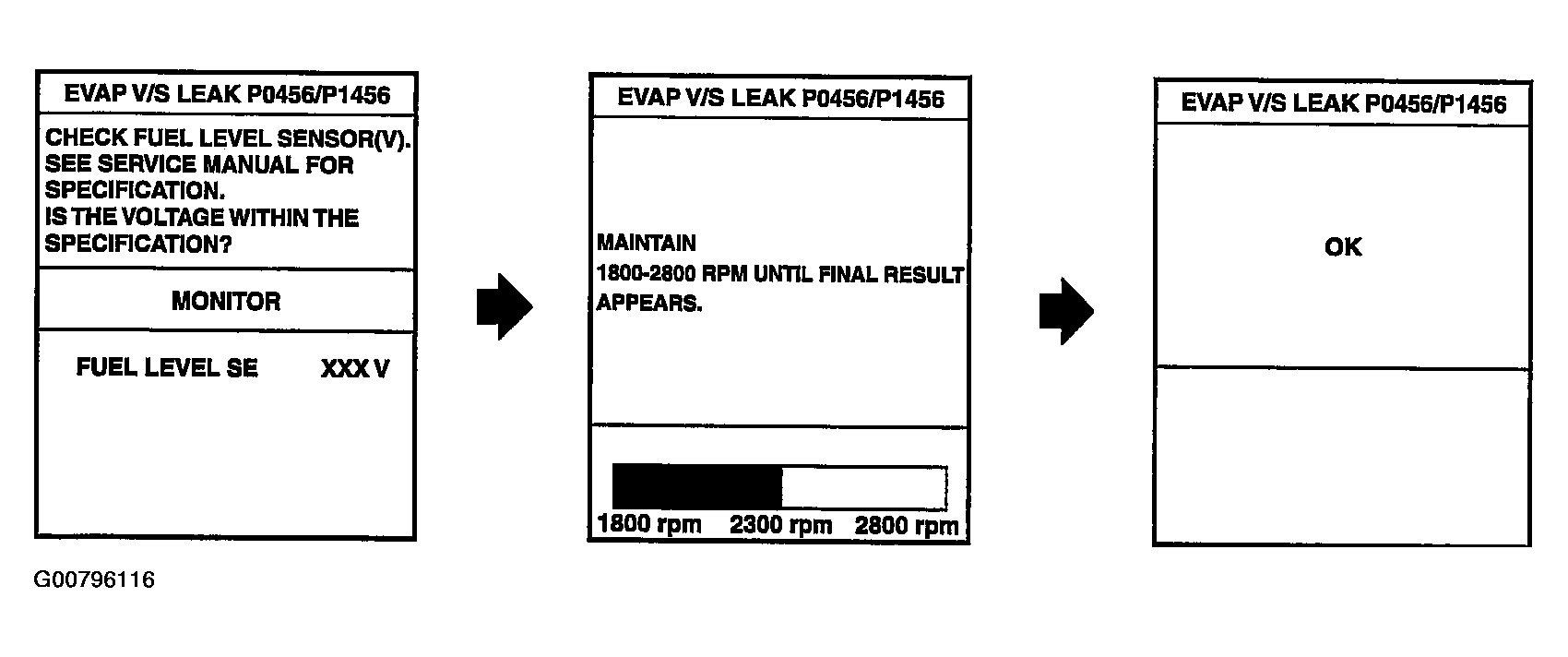

Fig 2: Following Instructions Displayed On Scan Tool
Courtesy of NISSAN MOTOR CO., U.S.A.
2. Make sure the following conditions are met.

   FUEL LEVEL SE: 0.25 - 1.4V

   COOLAN TEMP/S: 0 - 32°C (32 - 90°F)

   FUEL T/TMP SE: 0 - 35°C (32 - 95°F)

   INT A/TEMP SE: More than 0°C (32°F)

   If NG, turn ignition switch OFF and leave the vehicle in a cool place (soak the vehicle) or refilling/draining fuel until the output voltage condition of the "FUEL LEVEL SE" meets within the range above and leave the vehicle for more than 1 hour. Then start from step 1).

3. Turn ignition switch OFF and wait at least 10 seconds.
4. Turn ignition switch ON.
5. Select "EVAP V/S LEAK P0456/P1456" of "EVAPORATIVE SYSTEM" in "DTC WORK SUPPORT" mode with CONSULT-II.

   Follow the instruction displayed.

6. Make sure that "OK" is displayed.

If "NG" is displayed, refer to DIAGNOSTIC PROCEDURE .
