With CONSULT-II

1. Turn ignition switch ON.
2. Select "EVAP SYSTEM CLOSE" of "WORK SUPPORT" mode with CONSULT-II.

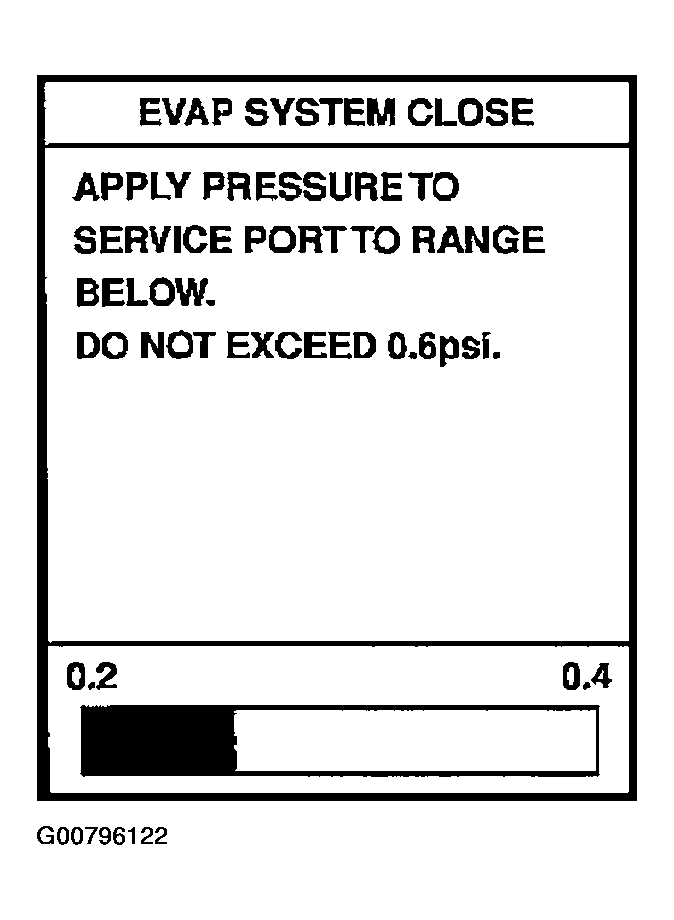

   Fig 1: Scan Tool Display - Work Support

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Touch "START" and apply pressure into the EVAP line until the pressure indicator reaches the middle of the bar graph.
   NOTE:

   • Never use compressed air or a high pressure pump.
   • Do not exceed 4.12 kPa (0.042 kg/cm² , 0.6 psi) of pressure in the system.
4. Using EVAP leak detector, locate the EVAP leak. For the leak detector, refer to the instruction manual for more details.

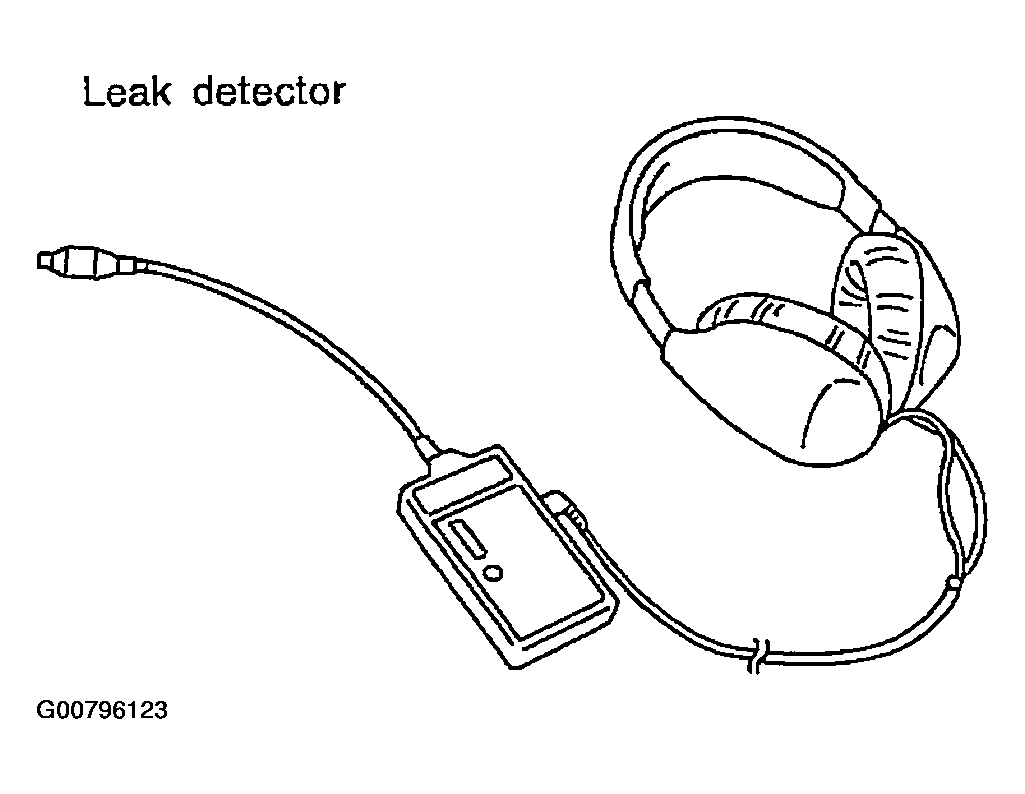

   Fig 2: Identifying EVAP Leak Detector

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Refer to EVAPORATIVE EMISSION LINE DRAWING .

OK or NG

1. OK: GO TO 8. CHECK WATER SEPARATOR .
2. NG: Repair or replace.
