5. Check Combination Meter

1. Turn ignition switch OFF.
2. Disconnect combination meter harness connector.
3. Check continuity under the following conditions.

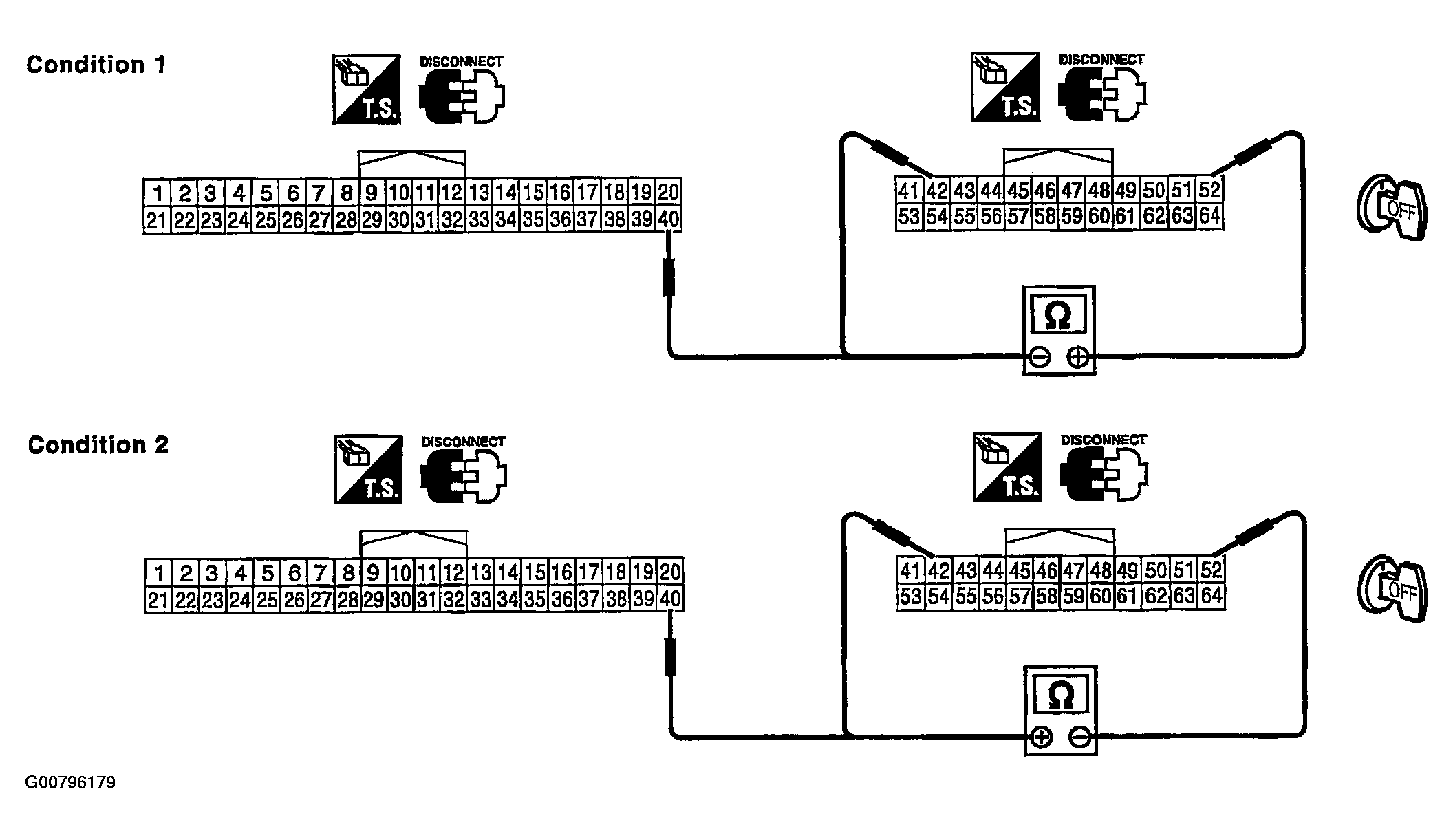

   Fig 1: Checking Continuity (As Shown)

   Courtesy of NISSAN MOTOR CO., U.S.A.

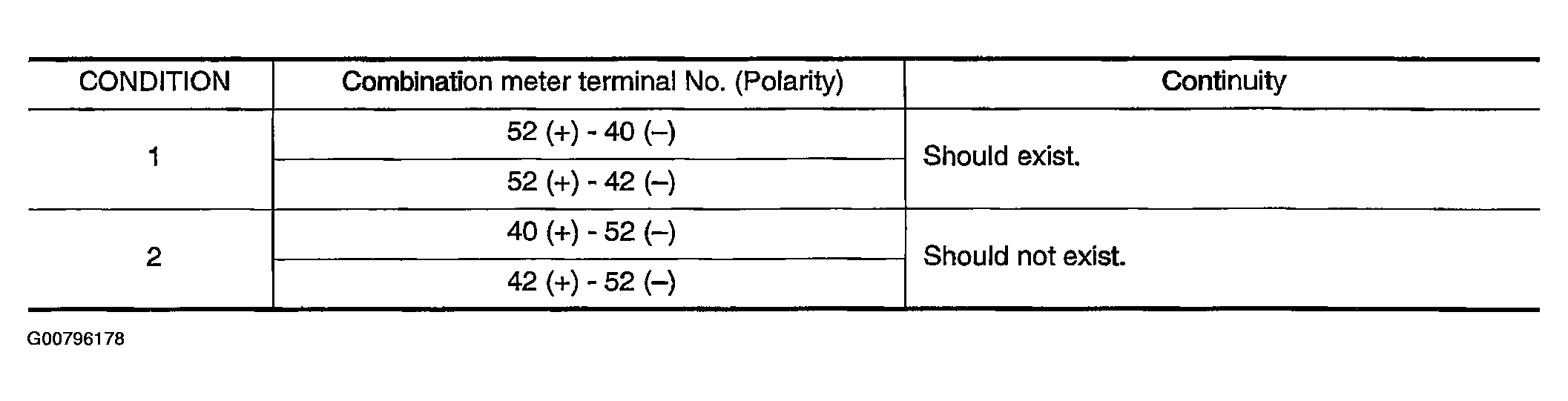

   Fig 2: Inspecting Condition Chart

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 6.
2. NG: Replace combination meter. Refer to REMOVAL AND INSTALLATION OF COMBINATION METER .
