Throttle Control Motor Relay

  1. Apply 12V direct current between relay terminals 1 and 2.

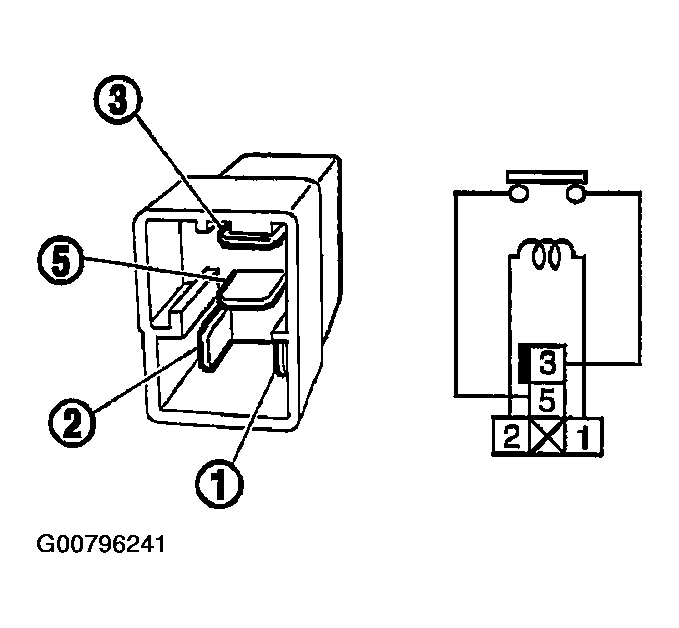

    Fig 1: Identifying Relay Terminals
    G00796241Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between relay terminals 3 and 5.

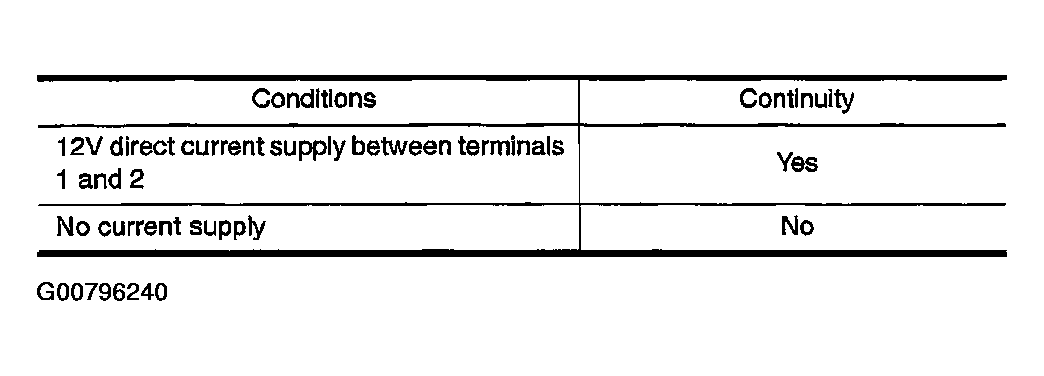

    Fig 2: Inspecting Conditions Chart
    G00796240Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace throttle control motor relay.
