10. Check Throttle Control Motor Output Signal Circuit For Open Or Short

1. Turn ignition switch OFF.
2. Disconnect electric throttle control actuator harness connector.

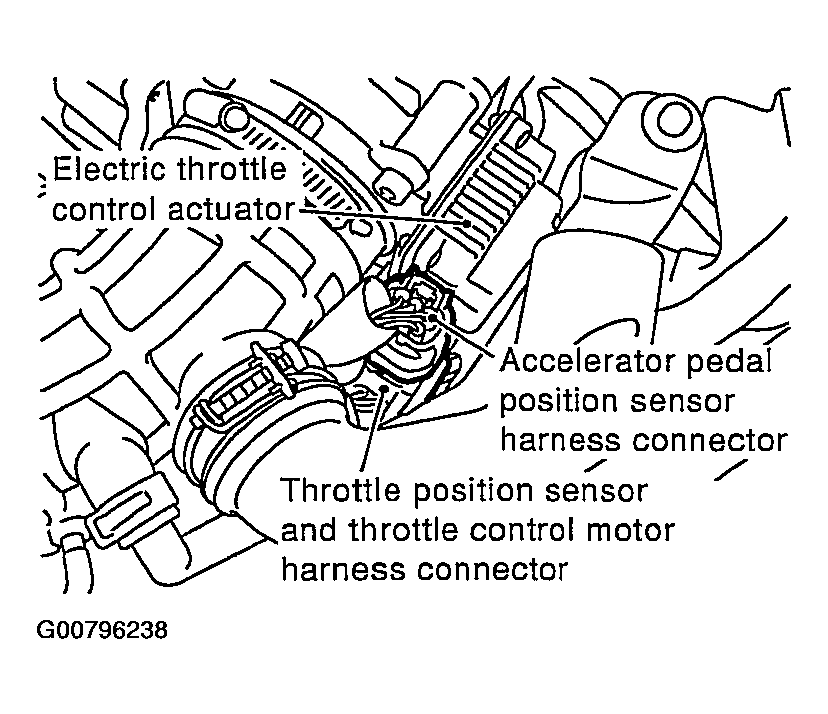

   Fig 1: Identifying Electric Throttle Control Actuator

   Courtesy of NISSAN MOTOR CO., U.S.A.
3. Disconnect ECM harness connector.
4. Check harness continuity between the following terminals.

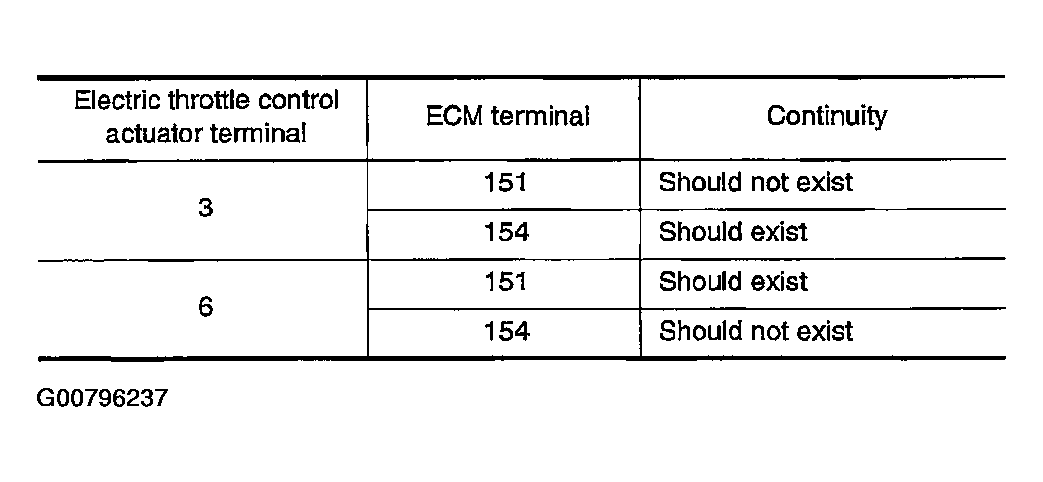

   Fig 2: Checking Harness Continuity Between Terminals (As Shown)

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Refer to WIRING DIAGRAM .

5. Also check harness for short to ground and short to power.

OK or NG

1. OK: GO TO 11.
2. NG: Repair or replace.
