Throttle Control Motor Relay

  1. Apply 12V direct current between relay terminals 1 and 2.

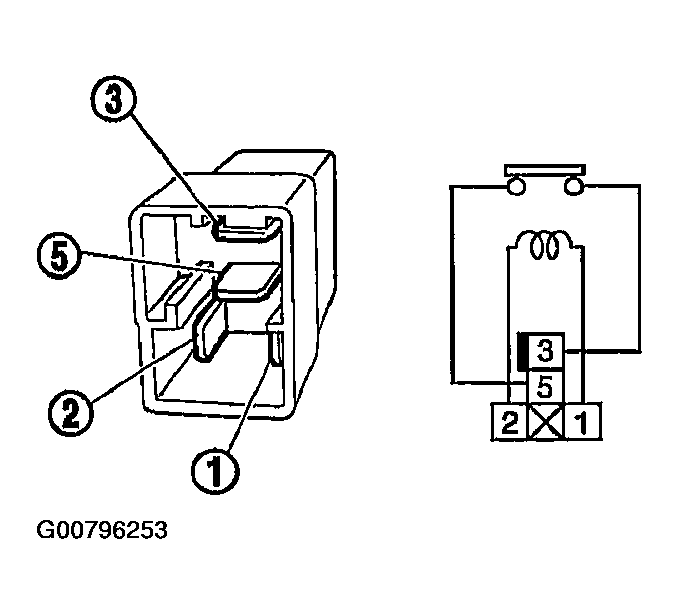

    Fig 1: Identifying Relay Terminals
    G00796253Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Check continuity between relay terminals 3 and 5.

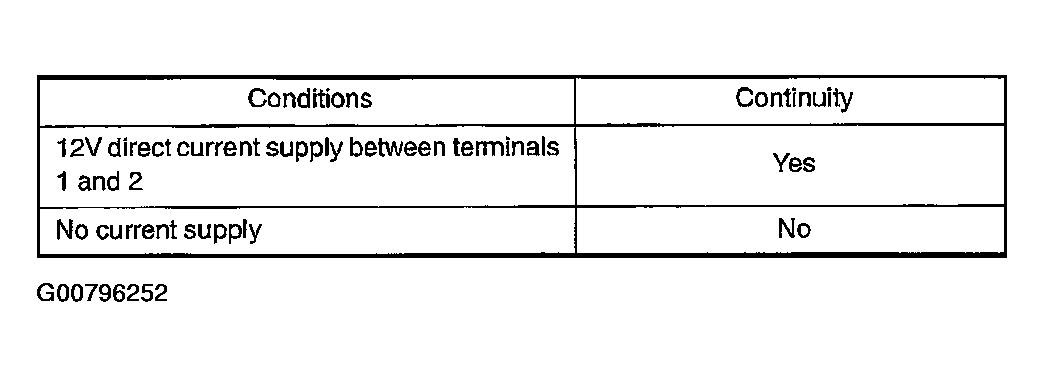

    Fig 2: Checking Continuity Between Relay Terminals 3 & 5
    G00796252Courtesy of NISSAN MOTOR CO., U.S.A.
  3. If NG, replace throttle control motor relay.
