2. Check Intake Valve Timing Control Position Sensor Power Supply Circuit

1. Disconnect intake valve timing control position sensor harness connector.

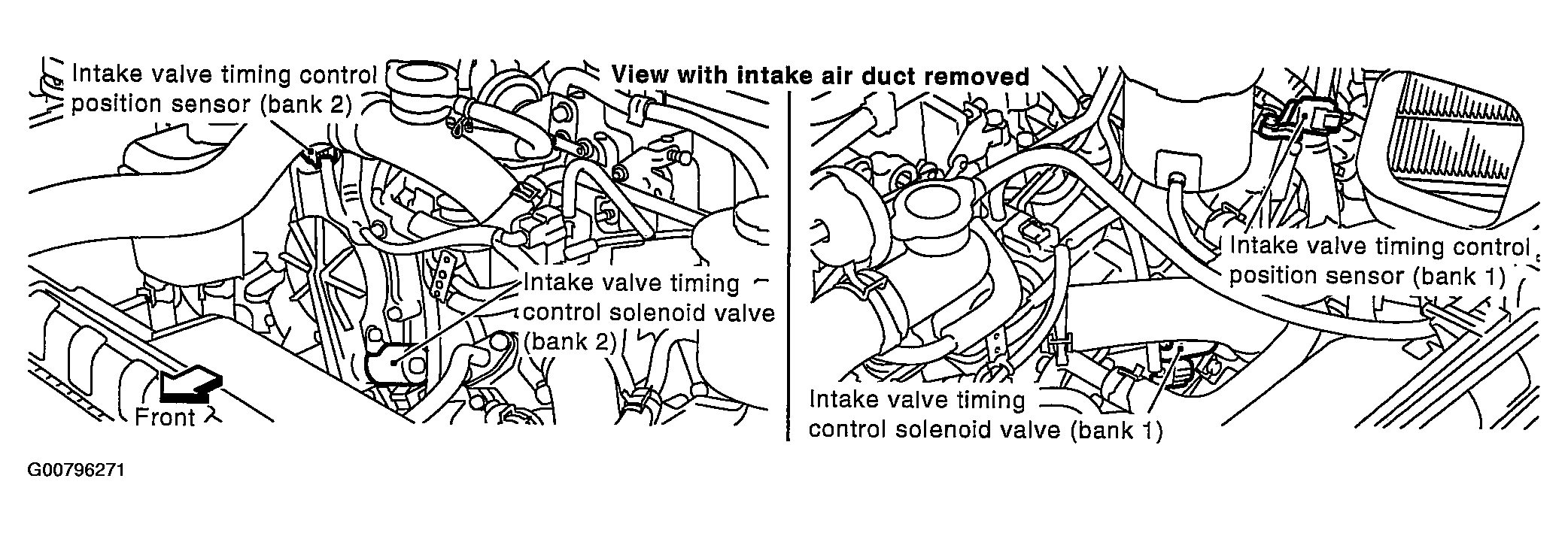

   Fig 1: Identifying Intake Valve Timing Control Position Sensor

   Courtesy of NISSAN MOTOR CO., U.S.A.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sensor terminal 3 and ground with CONSULT-II or tester.

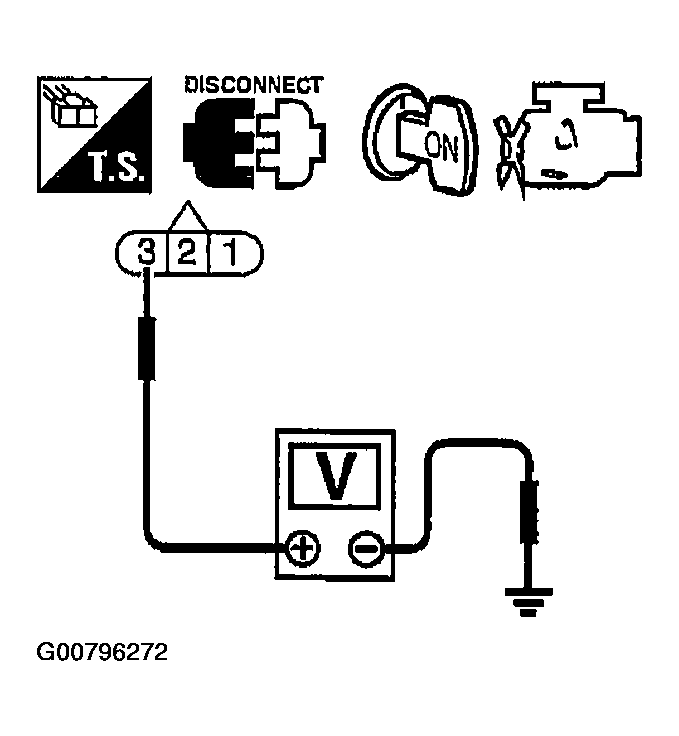

   Fig 2: Checking Voltage Between Intake Valve Timing Control Position Sensor Terminal 3 & Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

   Voltage: Battery voltage

OK or NG

1. OK: GO TO 4. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND SHORT .
2. NG: GO TO 3.
