Cooling Fan Basic Speed

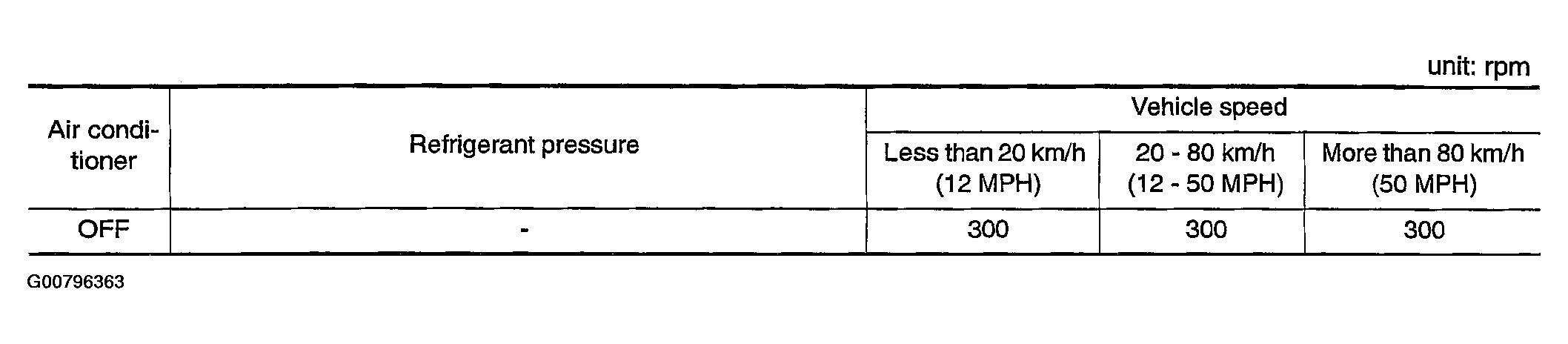

Fig 1: Cooling Fan OFF Basic Speed Conditions Chart
G00796363Courtesy of NISSAN MOTOR CO., U.S.A.

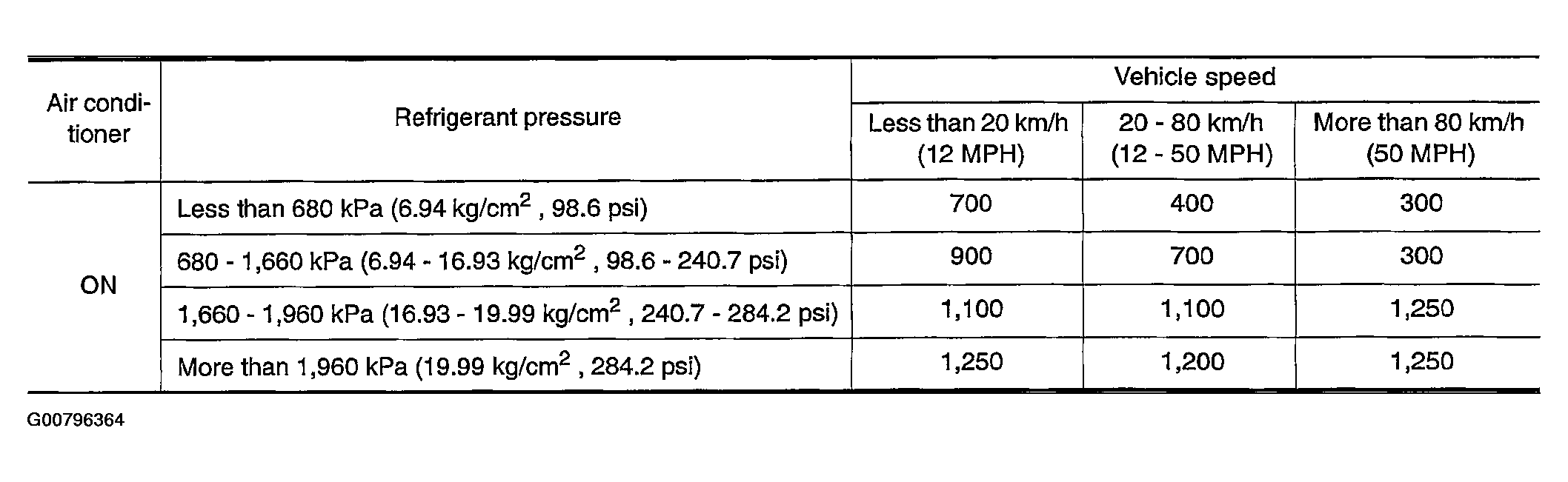

Fig 2: Cooling Fan ON Basic Speed Conditions Chart
G00796364Courtesy of NISSAN MOTOR CO., U.S.A.
