12. Check Radiator Cap

Apply pressure to cap with a tester and check radiator cap relief pressure.

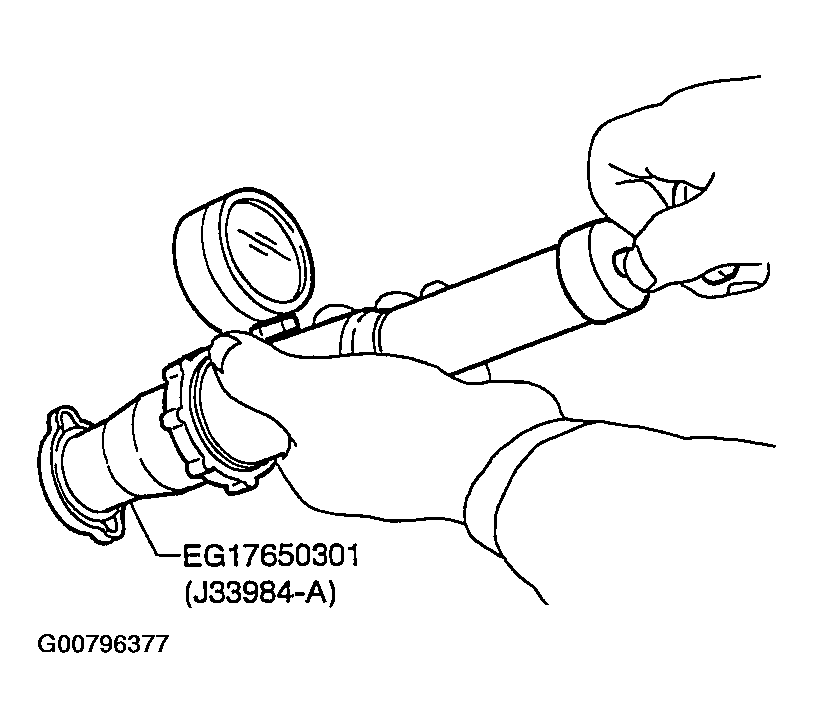

Fig 1: Checking Radiator Cap Relief Pressure

Courtesy of NISSAN MOTOR CO., U.S.A.

Radiator cap relief pressure:

59 - 98 kPa (0.6 - 1.0 Kg/cm ² , 9 - 14 psi)

OK or NG

1. OK: GO TO 13.
2. NG: Replace radiator cap.
